ATEN CS74D KVM switch Black
- Brand: ATEN
- Category:
- SKU: CS74D
- EAN: 0672792004605 4719264640346
4-Port USB DVI/Audio Slim KVM Switch
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
4-Port USB DVI KVM Switch,3 Years Warranty |
5219931 |
Related Products
Description

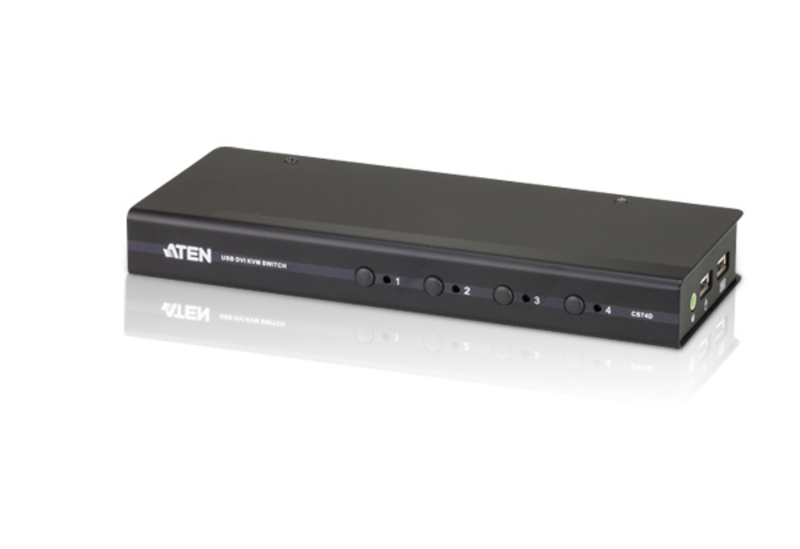

The CS74D 4-Port USB DVI KVM Switch allows you to control four computers using one USB mouse, USB keyboard and Digital Visual Interface (DVI) monitor console. It supports digital video devices, such as fl at panel displays, data projectors, plasma displays and digital TVs.
The CS74D comes with ATEN’s Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution; it carries several convenient features, such as Power On Detection, 2.1 channel audio capability and USB2.0 peripheral sharing, as well as provides quick and easy methods to access computers.
The CS74D comes with ATEN’s Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution; it carries several convenient features, such as Power On Detection, 2.1 channel audio capability and USB2.0 peripheral sharing, as well as provides quick and easy methods to access computers.
Specifications
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| USB connector type | USB Type-A |
| Mouse port type | USB |
| Video port type | DVI-D |
| Audio connections | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, DVI-D, USB A |
| HDCP | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| HD type | WUXGA |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 3,5,10,20 s |
| HDCP | Yes |
| Design | |
| Product colour | Black |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Power source | DC |
| Power consumption (typical) | 5.3 W |
| Input voltage | 5.3 V |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Video | |
| HD type | WUXGA |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 7.87" (200 mm) |
| Depth | 3.23" (82 mm) |
| Height | 0.984" (25 mm) |
| Weight | 18 oz (510 g) |
| Packaging content | |
| Cables included | DC, KVM |
| Manual | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Other features | |
| Push button | Yes |
| Hot keys | Yes |
