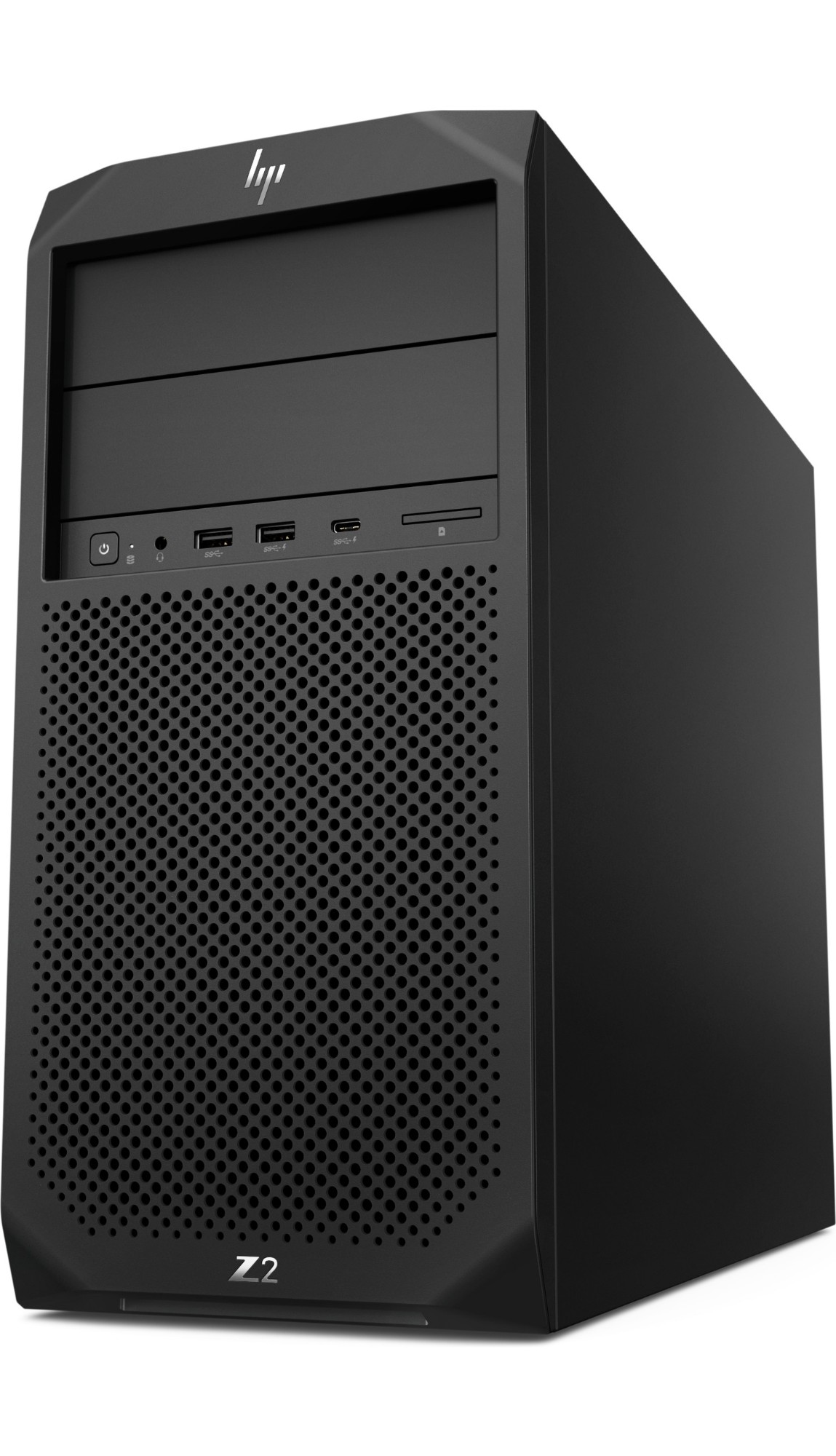

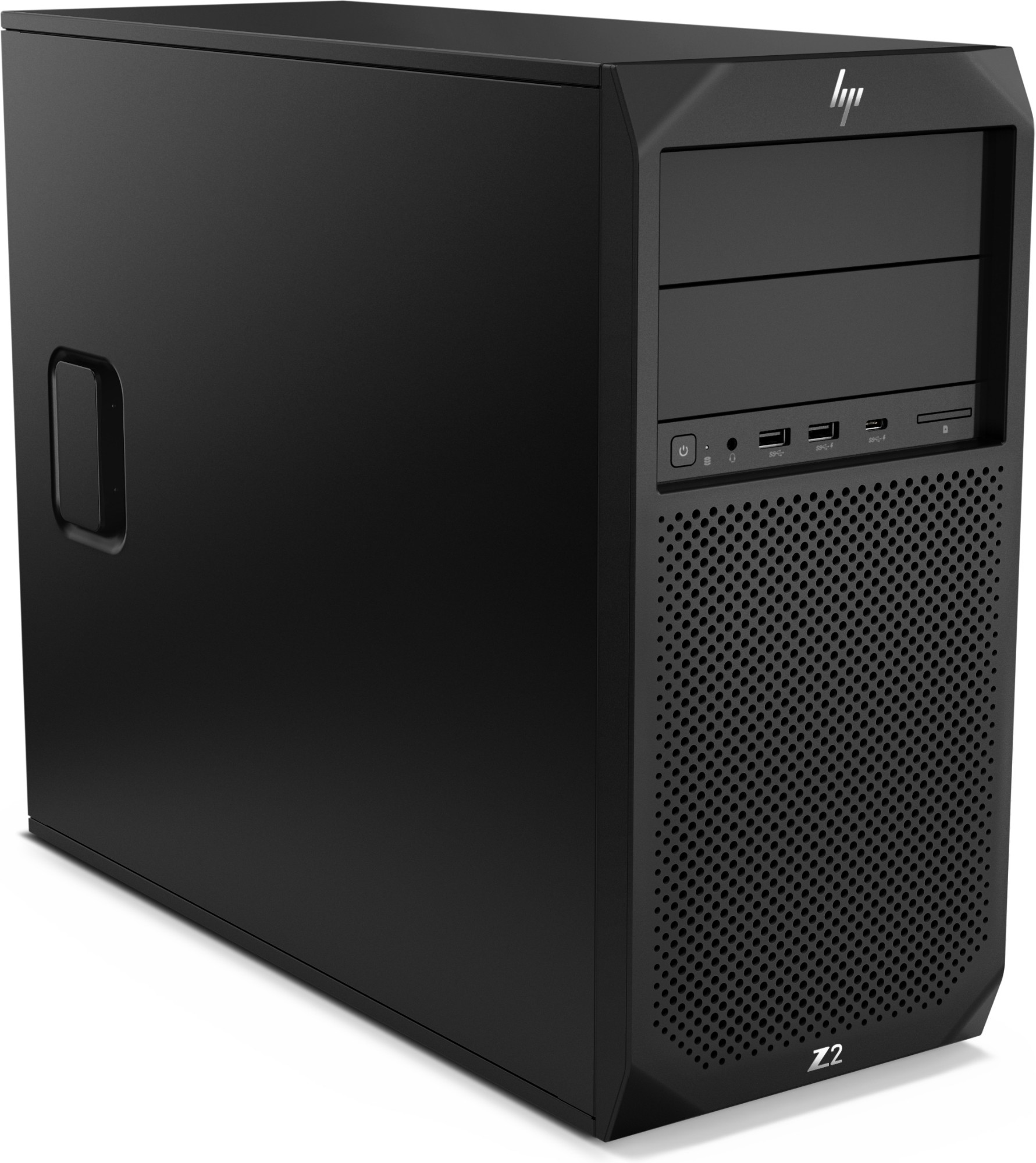

HP Z2 G4 Intel® Xeon® E-2124G 32 GB DDR4-SDRAM 256 GB SSD Tower Workstation Black
- Brand: HP
- Category:
- SKU: 7JR44UC#ABA
- EAN: 0194441094220 0193905550302
Intel Xeon E-2124G (8MB Cache, 3.4GHz), 32GB DDR4-SDRAM, 256GB SSD, Intel UHD Graphics 630, LAN
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
NC NR CTO Z2G4T XE2124G 32GB/256 |
6454554 |
Related Products
Description
HP's most powerful entry workstation
Experience server-grade power in a desktop workstation with impressive expandability. Confidently tackle complex workloads like BIM and rendering with up to Ultra 3D graphics and the latest Intel® Core™ or Intel® Xeon® processors.
Experience server-grade power in a desktop workstation with impressive expandability. Confidently tackle complex workloads like BIM and rendering with up to Ultra 3D graphics and the latest Intel® Core™ or Intel® Xeon® processors.
Specifications
| Processor | |
|---|---|
| Processor frequency | 3.4 GHz |
| Processor family | Intel® Xeon® |
| Processor manufacturer | Intel |
| Processor model | E-2124G |
| Processor cores | 4 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 71 W |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Maximum number of PCI Express lanes | 16 |
| Processor cache type | Smart Cache |
| Processor boost frequency | 4.5 GHz |
| Processor socket | LGA 1151 (Socket H4) |
| Processor cache | 8 MB |
| PCI Express slots version | 3.0 |
| System bus rate | 8 GT/s |
| Processor threads | 4 |
| Number of processors installed | 1 |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 128 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2666 MHz |
| Storage | |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Total SSDs capacity | 256 GB |
| Graphics | |
| On-board graphics card model | Intel UHD Graphics P630 |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 128 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E96 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Line-out | Yes |
| Microphone in | No |
| Headphone outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
| Design | |
| Product colour | Black |
| Chassis type | Tower |
| Placement supported | Vertical |
| Country of origin | China |
| Performance | |
| Product type | Workstation |
| Motherboard chipset | Intel C246 |
| Audio chip | Conexant CX20632-31Z |
| Market positioning | Business |
| Embedded options available | Yes |
| Processor special features | |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Processor ARK ID | 134854 |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Brand-specific features | |
| HP segment | Business |
| Weight & dimensions | |
| Width | 6.65" (169 mm) |
| Depth | 17.1" (435 mm) |
| Height | 14" (356 mm) |
| Weight | 15.4 lbs (7 kg) |
| Packaging content | |
| Display included | No |
| Display | |
| Display included | No |
| Features | |
| Country of origin | China |
| Other features | |
| Processor manufacturer | Intel |
| On-board graphics card | Yes |
| Country of origin | China |
