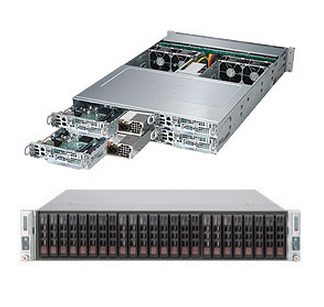

Supermicro SuperServer 2028TP-HC0R LGA 2011-v3 Rack (2U) Black
- Brand: Supermicro
- Category:
- SKU: SYS-2028TP-HC0R
- EAN: 0672042165476
Intel Xeon E5-2600 v3, 16x DIMM, Intel i350-AM2, IPMI 2.0, 6x 2.5" Hot-swap SAS/SATA HDD, 2000W
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
SUPERMICRO X10DRT-P, CSE-217HQ+-R2K02BP, BPN-ADP-S3008L-L6IP |
6762529 |
Related Products
Description
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
2. Up to 1TB ECC LRDIMM, 512GB ECC RDIMM, up to 2133MHz; 16x DIMM sockets
3. 1x PCI-E 3.0 x16 Low-profile slot, 1x "0 slot" (x16)
4. Intel® i350-AM2 Dual port GbE LAN
5. Integrated IPMI 2.0 with KVM and Dedicated LAN
6. 6x 2.5" Hot-swap SAS/SATA HDD Bays
7. LSI 3008 SAS3 controller (8 ports); RAID 0, 1, 10
8. Mini-mSATA (half size) support
9. 2000W Redundant Power Supplies Platinum Level (94%)
2. Up to 1TB ECC LRDIMM, 512GB ECC RDIMM, up to 2133MHz; 16x DIMM sockets
3. 1x PCI-E 3.0 x16 Low-profile slot, 1x "0 slot" (x16)
4. Intel® i350-AM2 Dual port GbE LAN
5. Integrated IPMI 2.0 with KVM and Dedicated LAN
6. 6x 2.5" Hot-swap SAS/SATA HDD Bays
7. LSI 3008 SAS3 controller (8 ports); RAID 0, 1, 10
8. Mini-mSATA (half size) support
9. 2000W Redundant Power Supplies Platinum Level (94%)
Specifications
| Processor | |
|---|---|
| System bus rate | 9.6 GT/s |
| Processor socket | LGA 2011-v3 |
| Processor family | Intel |
| Maximum cache | 45 MB |
| Intel Xeon series | E5-2600 |
| Compatible processor series | Intel® Xeon® |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of DIMM slots | 16 |
| Memory voltage | 1.2 V |
| Maximum RDIMM memory | 512 GB |
| Maximum internal memory | 1 TB |
| ECC | Yes |
| Storage | |
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | Serial Attached SCSI (SAS), Serial ATA |
| RAID levels | 0, 1, 10 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5" |
| Graphics | |
| On-board graphics card model | Aspeed AST2400 |
| Network | |
| LAN controller | Intel® I350-AM2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 2 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Expansion slots | |
| PCI Express x16 slots | 1 |
| Technical details | |
| Number of storage drives supported | 6 |
| BIOS | |
| BIOS memory size | 128 Mbit |
| BIOS features | APM 1.2, PCI 2.2, Plug & Play, SMBIOS 2.3, UEFI |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Chassis type | Rack (2U) |
| Power | |
| Power supply | 2000 W |
| DC output current (+5 V) | 4 A |
| AC input voltage | 230 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Weight & dimensions | |
| Width | 17.2" (438 mm) |
| Weight | 8.51 lbs (3.86 kg) |
| Height | 3.46" (88 mm) |
| Depth | 28.5" (724 mm) |
