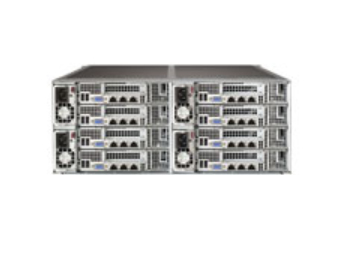

Supermicro SuperServer F618R2-RT+ Rack (4U), - Intel® C612 LGA 2011 (Socket R)
- Brand: Supermicro
- Category:
- SKU: SYS-F618R2-R72PT+
- EAN: 0672042166022
8 Hot-plug System Nodes in 4U, Intel Xeon E5-2600 v3 CPU, 1TB ECC LRDIMM DDR4 Max, Intel C612 Express chipset, 48 x 2.5" Hot-swap SAS2 / SATA3 (6Gbps) HDD Bays, 64 x SATA3 (6Gbps), 16 x SATA3 powered, 16 x RJ45 10GBase-T, 8 x RJ45 Dedicated IPMI LAN, 16 x USB 3.0, 8 x VGA, 8 x Serial Port / Header
Offer details
Related Products
Description
SuperServer Benefits:
- Uncompromising Quality Control
- Most Comprehensive Line of Rackmount/Tower Servers
- Best Selection of High-End Servers - Itanium, Xeon & P4
- Redundant Components (virtually eliminating system downtime)
- Best Price/Performance Ratio
- Superior Product Design (all under one roof)
- Consistently First-to-Market
- Maximized Performance
- Reduced Total Cost of Ownership (TCO)
- Top-Notch Finishing Materials
- 3-Year Limited Warranty
- 24-Hour Server Support
These benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end PC/server industry. After all, Supermicro provides the most outstanding product line in the industry, ranging from single Pentium 4 and dual Xeon to quad Xeon MP and dual Itanium systems. Their proven high level of quality and performance has made SuperServers the platform of choice for supercomputer clusters and enterprise databases as well as business-critical, front-end server applications.
Specifications
| Motherboard | |
|---|---|
| Number of processors supported | 8 |
| Compatible processor series | Intel® Xeon® |
| Processor socket | LGA 2011 (Socket R) |
| Motherboard chipset | Intel® C612 |
| Processor | |
| Number of processors supported | 8 |
| Compatible processor series | Intel® Xeon® |
| Processor socket | LGA 2011 (Socket R) |
| Motherboard chipset | Intel® C612 |
| Memory | |
| Number of memory slots | 16 |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 1600,1866,2133 MHz |
| Maximum internal memory | 1000 GB |
| ECC | Yes |
| Storage | |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 48 |
| RAID levels | 0,1,5,10 |
| Card reader integrated | No |
| Optical drive type | No |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2400 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Networking features | 10GBase-T LAN |
| LAN controller | Intel® X540, Realtek RTL8201N |
| Bluetooth | No |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 16 |
| VGA (D-Sub) ports quantity | 8 |
| Serial ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 24 |
| Expansion slots | |
| PCI Express x8 slots | 8 |
| PCI Express x16 slots | 8 |
| Design | |
| Chassis type | Rack (4U), - |
| Redundant fans support | Yes |
| LED indicators | Yes |
| Certification | RoHS |
| Performance | |
| Number of processors supported | 8 |
| Compatible processor series | Intel® Xeon® |
| Processor socket | LGA 2011 (Socket R) |
| Motherboard chipset | Intel® C612 |
| BIOS type | AMI |
| Built-in camera | No |
| Optical drive type | No |
| Power | |
| Power supply | 1620 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Certificates | |
| Certification | RoHS |
| Weight & dimensions | |
| Width | 17.6" (448 mm) |
| Depth | 29" (737 mm) |
| Height | 6.97" (177 mm) |
| Weight | 149.9 lbs (68 kg) |
| Package weight | 200 lbs (90.7 kg) |
| Packaging data | |
| Package weight | 200 lbs (90.7 kg) |
| Other features | |
| Power requirements | 100 - 240V, 50-60Hz |
| Power LED | Yes |
| Backplanes support | Yes |
