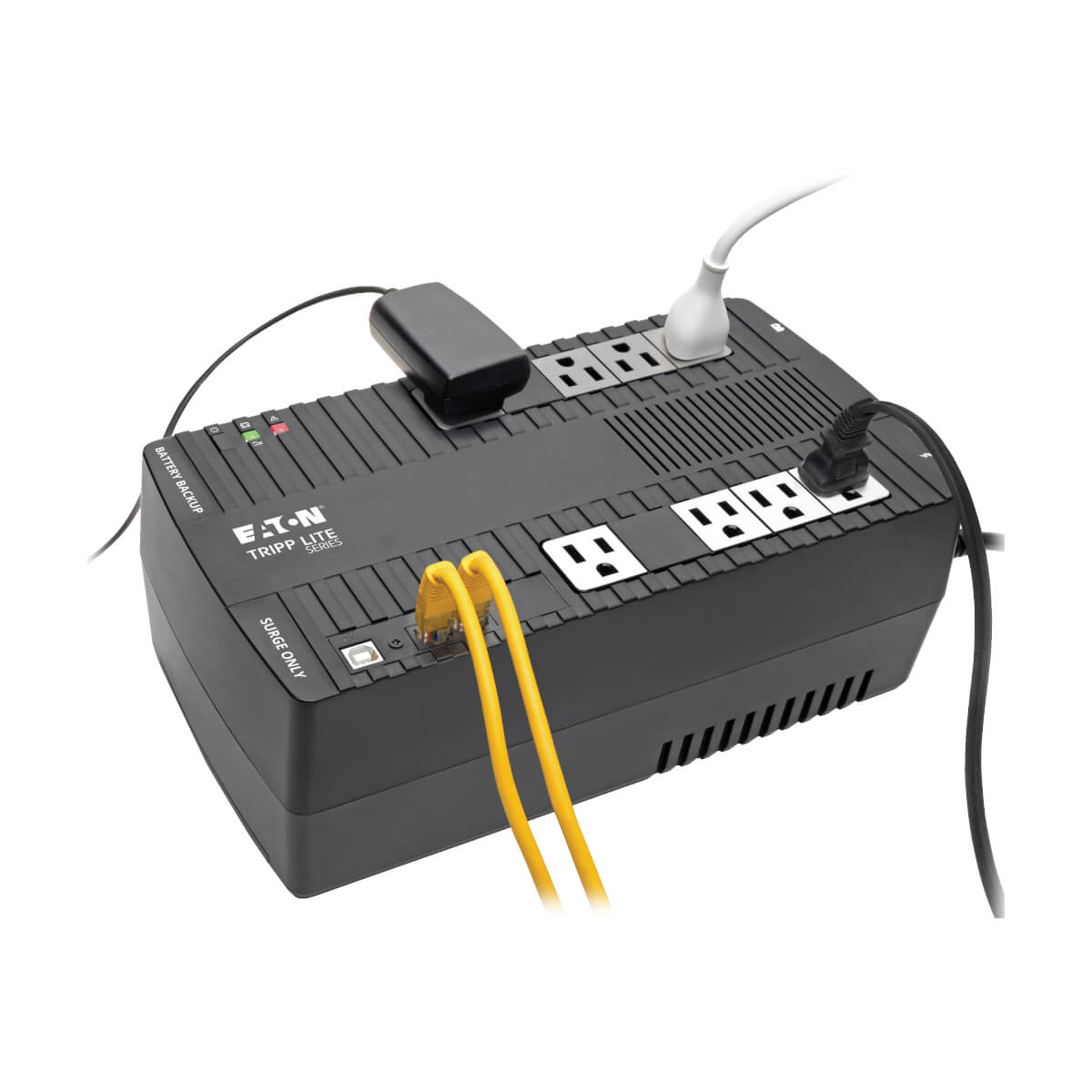

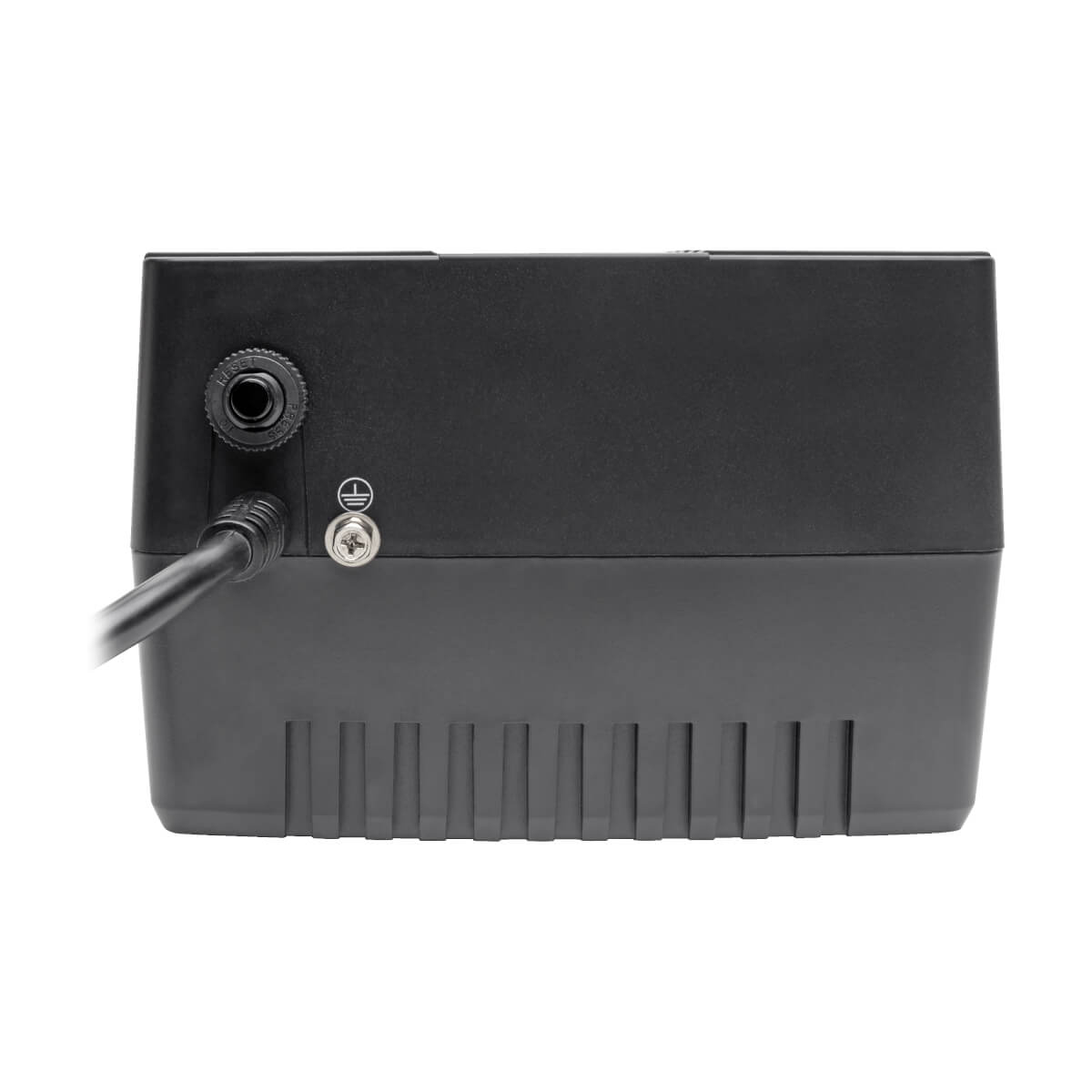

Tripp Lite AVR700U uninterruptible power supply (UPS) Line-Interactive 0.7 kVA 350 W 8 AC outlet(s)

Tripp Lite AVR700U uninterruptible power supply (UPS) Line-Interactive 0.7 kVA 350 W 8 AC outlet(s)

Tripp Lite AVR700U, Line-Interactive, 0.7 kVA, 350 W, Pure sine, 89 V, 145 V

Trade Prices

Distributor Product SKU Stock Updated Price
ASI UPS AVR700U AVR 700VA Ultra-compact Line-Interactive 120V USB RTL 107305 Register free see stock
BlueStar TRIPP LITE, AVR SERIES 120V 700VA 350W ULTRA-COMPACT LINE-INTERACTIVE UPS WITH USB PORT AVR700U
D&H 700VA AVR UPS TEL / DSL 120V AVR700UCA
Ingram Micro 700VA AVR UPS TEL/DSL 120V 82535P
Synnex AVR Series 120V 700VA 350W Ultra-Compact Line-Interactive UPS with USB port 4721851

Related Products

Description

Tripp Lite AVR700U. UPS topology: Line-Interactive, Output power capacity: 0.7 kVA, Output power: 350 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 2 min, Typical backup time at half load: 10 min. Form factor: Tower, Product color: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Width: 6.4" (162.6 mm), Depth: 12" (304.8 mm), Height: 4.33" (110 mm)

Specifications

Power
Output power capacity0.7 kVA
Output power350 W
Input operation voltage (min)89 V
Input operation voltage (max)145 V
Output operation voltage (min)110 V
Output operation voltage (max)120 V
Surge energy rating316 J
Maximum current15 A
Output frequency50/60 Hz
Ports & interfaces
Cable length70.9" (1.8 m)
AC outlets quantity8 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
USB portYes
USB 2.0 ports quantity1
Performance
UPS topologyLine-Interactive
Number of input phases1
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresTelephone
WaveformPure sine
Power protection featuresOver voltage, Under voltage
Automatic Voltage Regulation (AVR)Yes
LED indicatorsYes
Audible alarm(s)Yes
Features
UPS topologyLine-Interactive
Output power capacity0.7 kVA
Country of originVietnam
Number of input phases1
Output power350 W
Input operation voltage (min)89 V
Input operation voltage (max)145 V
Output operation voltage (min)110 V
Output operation voltage (max)120 V
Surge energy rating316 J
Maximum current15 A
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresTelephone
WaveformPure sine
Power protection featuresOver voltage, Under voltage
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Yes
Audible alarm(s)Yes
Battery
Battery technologySealed Lead Acid (VRLA)
Battery recharge time8 h
Typical backup time at half load10 min
Typical backup time at full load2 min
Cold startYes
Design
Form factorTower
Country of originVietnam
Product colourBlack
CertificationUL1778; CSA; NOM; FCC 15 B
Cable length70.9" (1.8 m)
LED indicatorsYes
Housing materialAcrylonitrile butadiene styrene (ABS)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 120000" (0 - 3048 m)
Technical details
Output frequency50/60 Hz
Sustainability certificatesRoHS
Compliance certificatesRoHS
Weight & dimensions
Width6.4" (162.6 mm)
Depth12" (304.8 mm)
Height4.33" (110 mm)
Weight13.7 lbs (6.21 kg)
Package width6.2" (157.5 mm)
Package depth15" (381 mm)
Package height9.4" (238.8 mm)
Package weight14.8 lbs (6.71 kg)
Packaging data
Package width6.2" (157.5 mm)
Package depth15" (381 mm)
Package height9.4" (238.8 mm)
Package weight14.8 lbs (6.71 kg)
Logistics data
Products per master (outer) case3 pc(s)
Master (outer) case width15.6" (396.2 mm)
Master (outer) case length19.5" (495.3 mm)
Master (outer) case height10.4" (264.2 mm)
Master (outer) case gross weight46.5 lbs (21.1 kg)
Master (outer) case GTIN (EAN/UPC)10037332211474
Certificates
CertificationUL1778; CSA; NOM; FCC 15 B
