Tripp Lite B004-DPUA4-K KVM switch Black

Tripp Lite B004-DPUA4-K KVM switch Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B004-DPUA4-K
  • EAN: 0037332188632

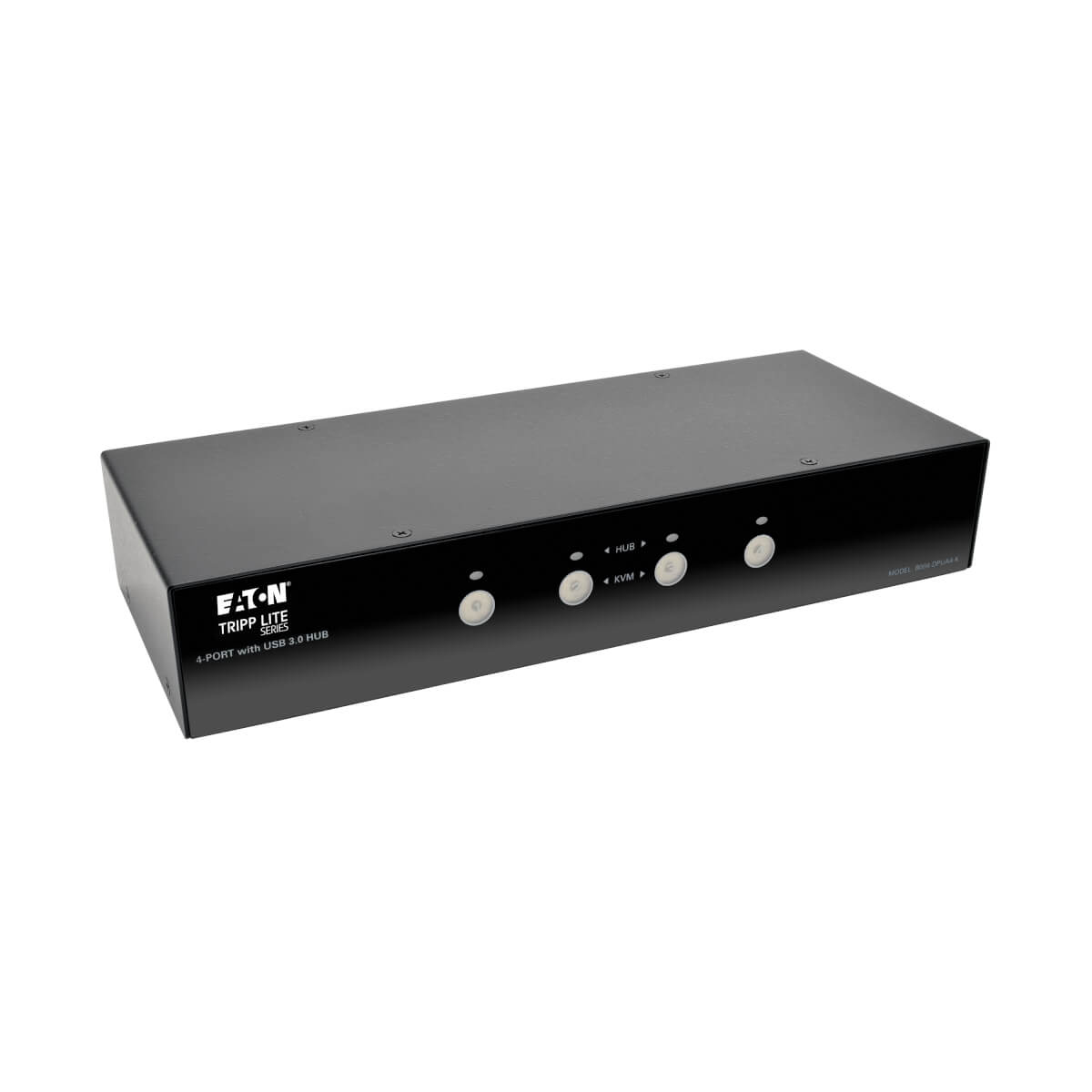

4-Port DisplayPort KVM Switch with Audio, Cables and USB 3.0 SuperSpeed Hub

Trade Prices

Distributor Product SKU Stock Updated Price
ASI NT B004-DPUA4-K 4PT DP KVM SWT w Audio CB&USB3.0 SuperSpeed Hub RTL 245487 Register free see stock
Ingram Micro 4-PORT DISPLAYPORT KVM SWITCH BZ4177
ScanSource 4-Port DisplayPort KVM Switch POW-B004DPUA4K
Synnex 4-Port DisplayPort KVM Switch w/Audio, Cables and USB 3.0 SuperSpeed Hub 5507305

Related Products

Description

Access and Control Up to 4 Computers with One KVM Switch

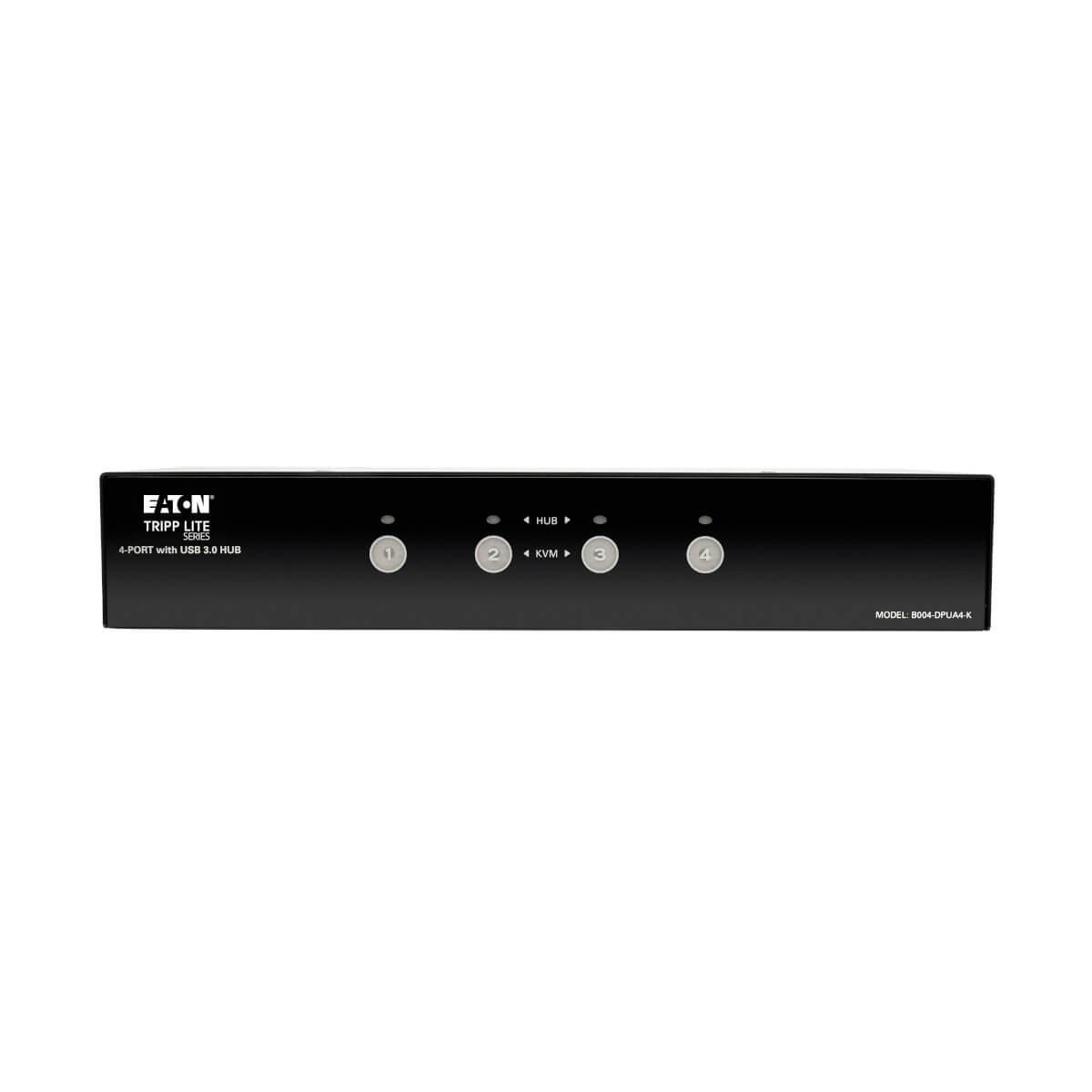

Switch among computers using keyboard hotkeys or front-panel buttons
Monitor's EDID information sent to connected computer when selected
Auto Scan feature cycles among computers at regular intervals for at-a-glance observation of activity
Supports DisplayPort 1.1

Independent Audio Switching
3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment among computers
Listen to audio files on one computer while accessing another computer
Supports 2-channel stereo audio

Independent USB 3.0 Peripheral Sharing
2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
Print documents from one computer while accessing another computer
Supports USB 3.0 data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.1 devices

Compatible with All Major Operating Systems
Easy to set up with no software or drivers to install
Supports digital video resolutions up to 2560 x 1600, including 1080p
Works with Windows, Mac, Linux and Sun

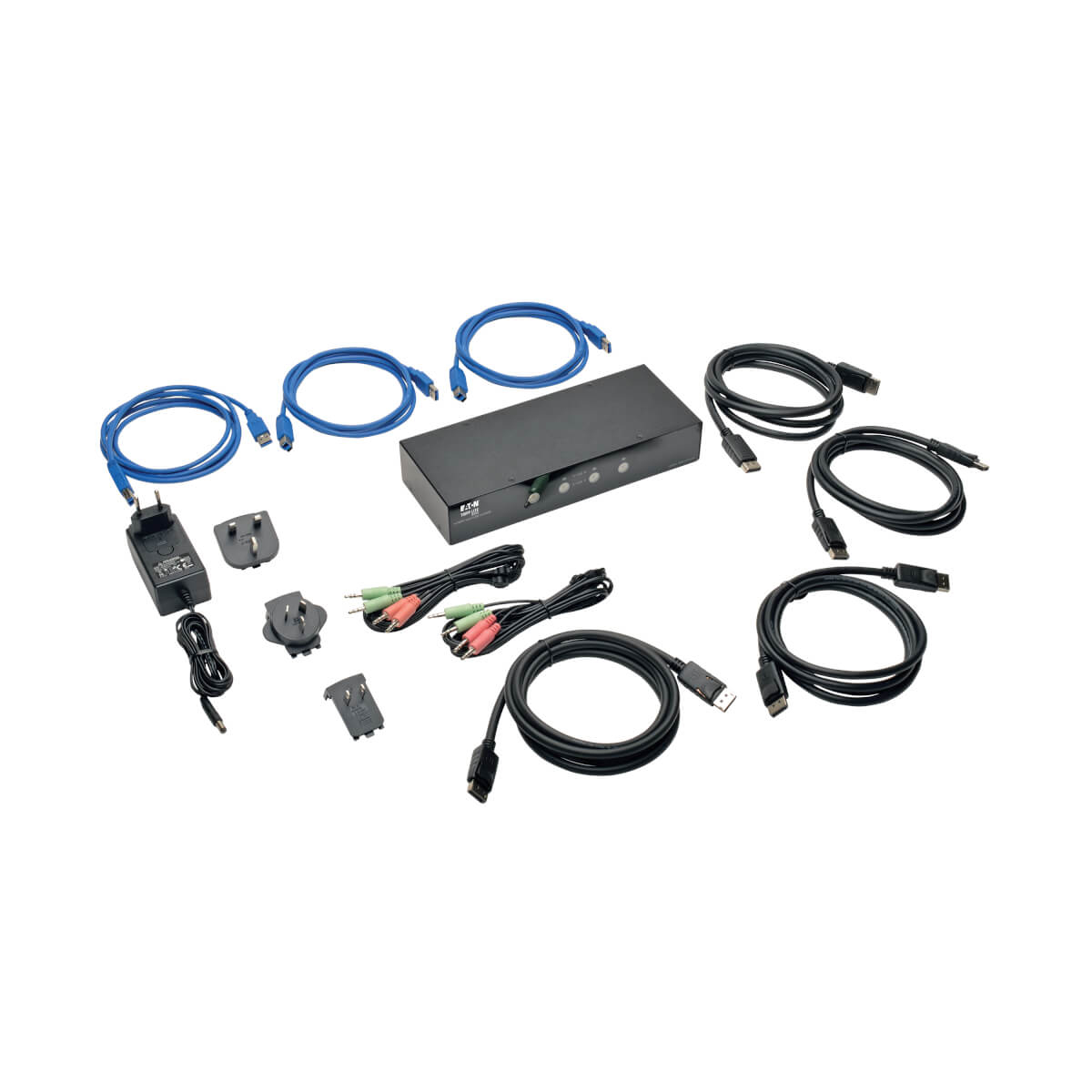

All necessary cables included

Specifications

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
USB connector typeUSB Type-A, USB Type-B
Number of microphone inputs4
Mouse port typeUSB
Video port typeDisplayPort
Audio connectionsYes
USB 2.0 ports quantity2
USB version2.0/3.2 Gen 1 (3.1 Gen 1)
Headphone outputs4
Display connectionYes
DC-in jackYes
Console USB ports quantity4

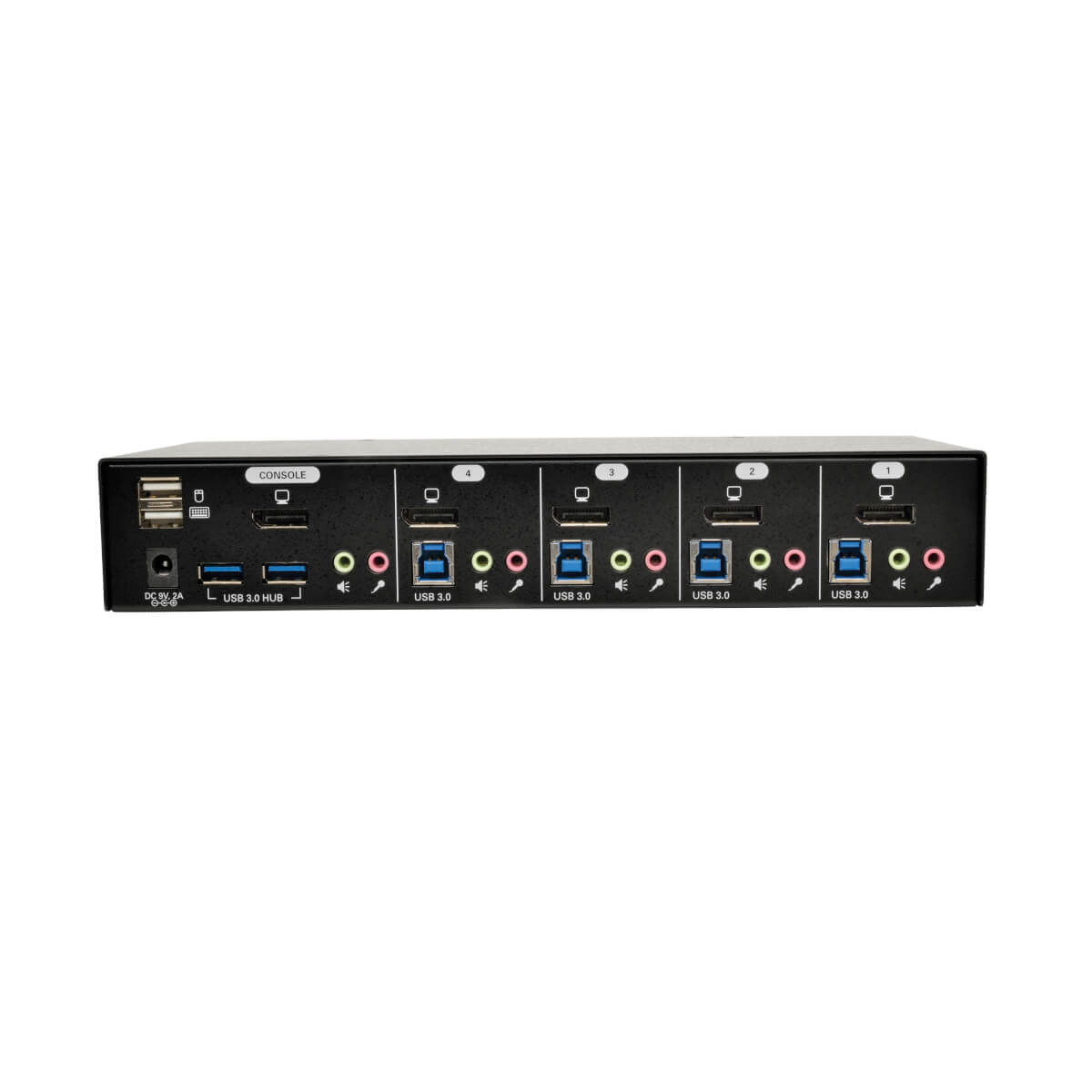

Console ports3.5mm headphone, 3.5mm mic, DisplayPort, USB B
USB hubYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
Cable length70.9" (1.8 m)
Performance
DDC/DDC2 supportedYes
Maximum resolution2560 x 1600 pixels
Number of users1 user(s)
Design
Product colourBlack
Cable length70.9" (1.8 m)
Rack mountingNo
LED indicatorsYes
Country of originChina
Display
Built-in displayNo
Power
Output voltage9 V
AC input frequency50 - 60 Hz
Input current0.8 A
Output current2 A
Input voltage100-240 V
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Video
Maximum resolution2560 x 1600 pixels
Technical details
USB version2.0/3.2 Gen 1 (3.1 Gen 1)
Display connectionYes
USB hubYes
Sustainability certificatesRoHS
Compliance certificatesRoHS
Features
Country of originChina
Sustainability
Sustainability certificatesRoHS
Compliance certificatesRoHS
Weight & dimensions
Width8.1" (205.7 mm)
Depth3.9" (99.1 mm)
Height1.8" (45.7 mm)
Weight33.5 oz (950 g)
Package width6.2" (157.5 mm)
Package depth10.6" (269.2 mm)
Package height7.4" (188 mm)
Package weight5.91 lbs (2.68 kg)
Packaging data
Package width6.2" (157.5 mm)
Package depth10.6" (269.2 mm)
Package height7.4" (188 mm)
Package weight5.91 lbs (2.68 kg)
Packaging content
Cables includedAudio (3.5mm), DisplayPort, USB
ManualYes
AC adapter includedYes
Logistics data
Country of originChina
Master (outer) case width19.4" (492.8 mm)
Master (outer) case length21.7" (551.2 mm)
Master (outer) case height8.5" (215.9 mm)
Master (outer) case gross weight37.5 lbs (17 kg)
Products per master (outer) case6 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332188639
Harmonized System (HS) code8517.62.0020
