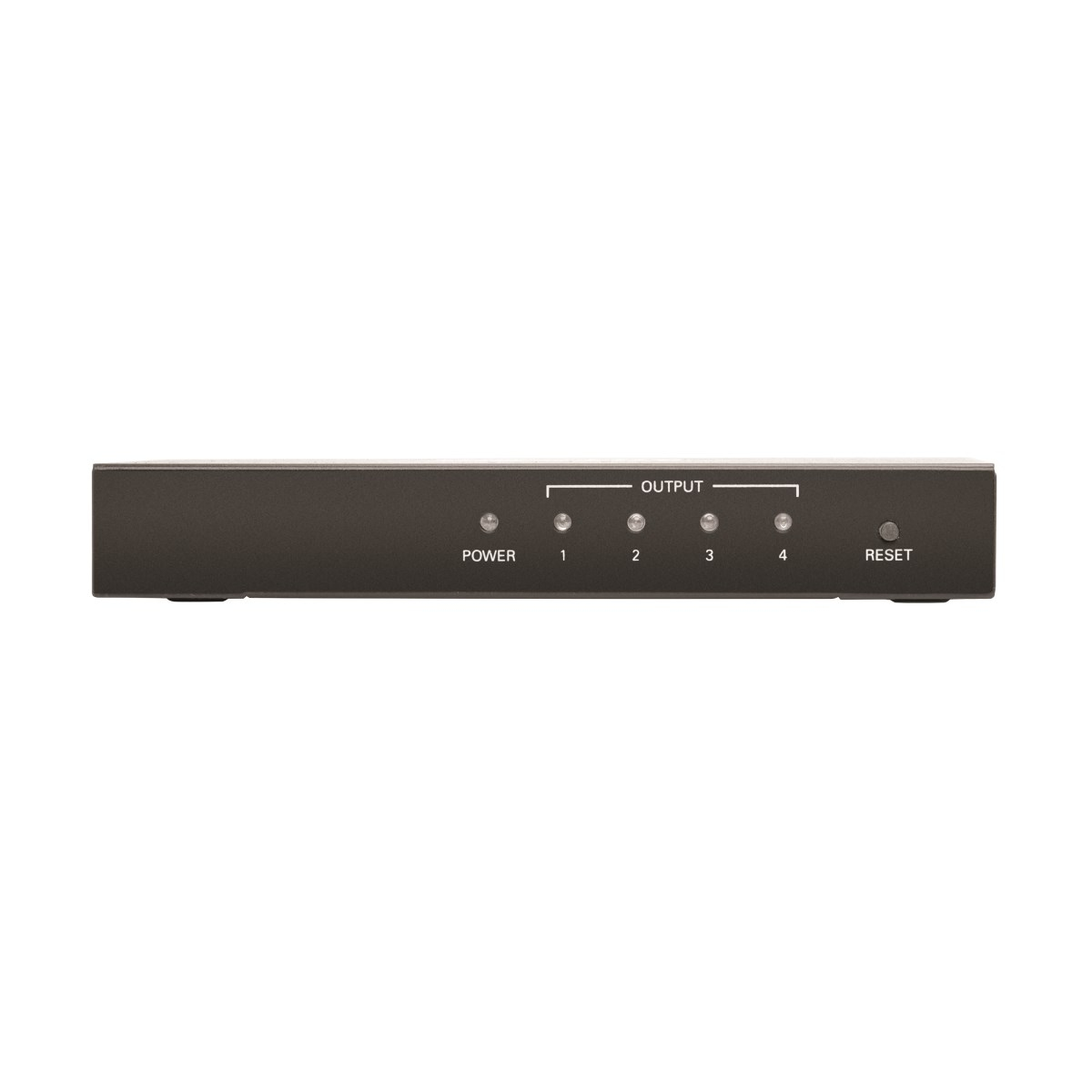

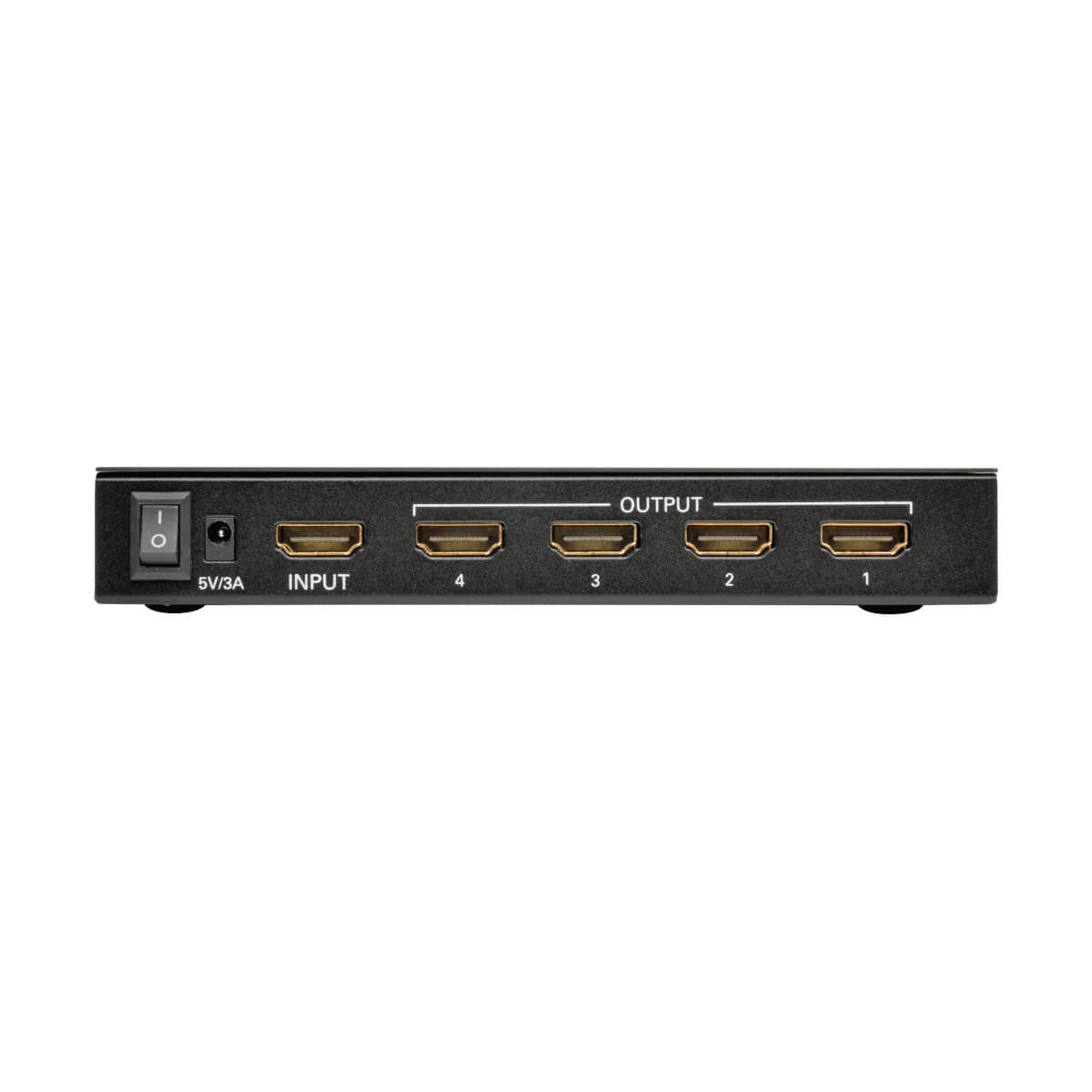

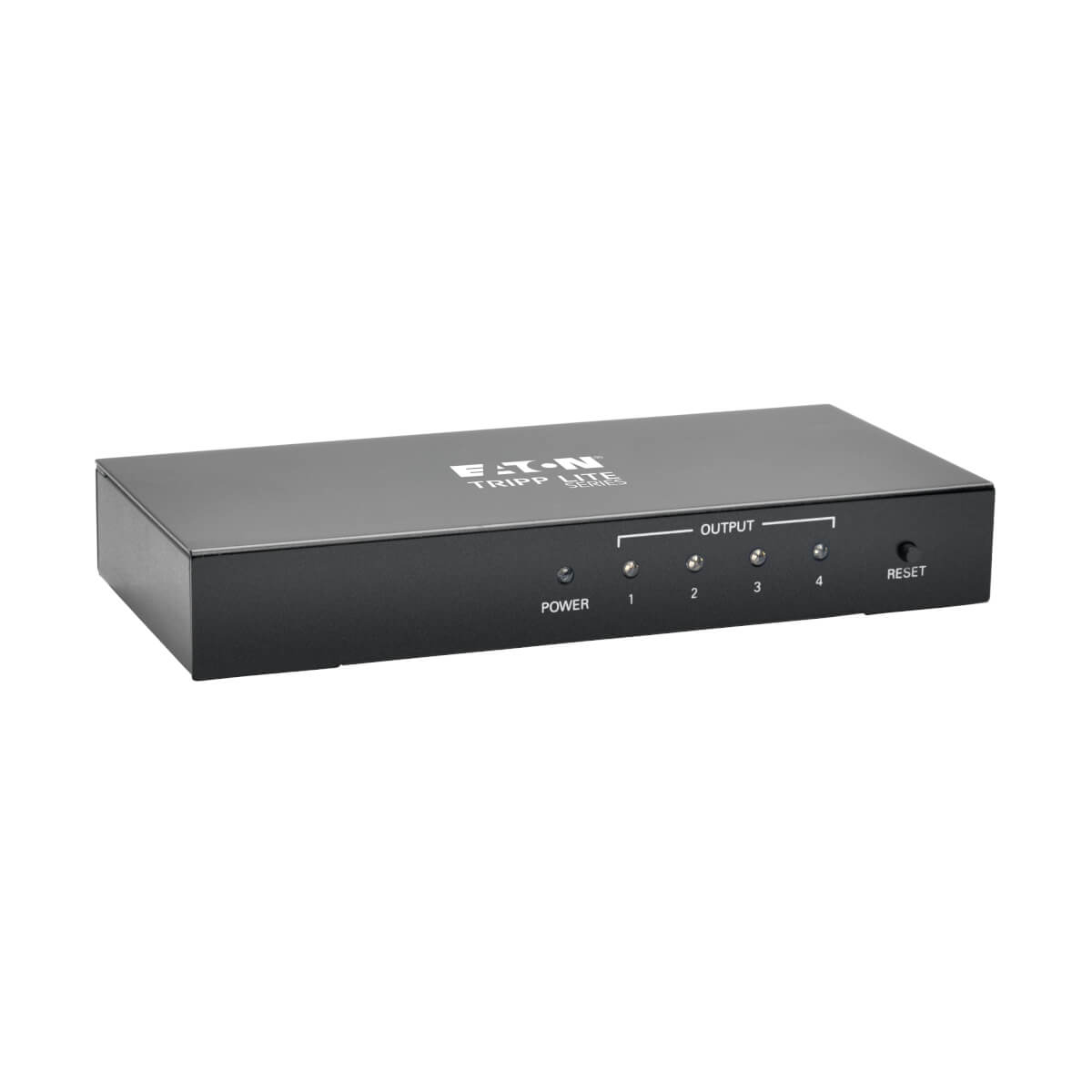

Tripp Lite B118-004-UHD video splitter HDMI 4x HDMI

Tripp Lite B118-004-UHD video splitter HDMI 4x HDMI

4-Port 4K HDMI Splitter for Ultra-HD (4Kx2K) Video and Audio - 3840x2160

Trade Prices

Distributor Product SKU Stock Updated Price
ASI AC B118-004-UHD 4PT HDMI Splitter HDMI1.4 HDCP1.3 4K Retail 245391 Register free see stock
BlueStar TRIPP LITE, 4 PORT 4K HDMI SPLITTER, ULTRA-HD 4K X 2K VIDEO AND AUDIO, 3840X2160 B118-004-UHD
Ingram Micro 4PORT 4K HDMI SPLITTER ULTRA-HD 7066CH

Related Products

Description

Tripp Lite's B118-004-UHD HDMI Splitter allows the 4K2K digital signal from a Blu-Ray player or other HDMI device to be displayed on up to four HDMI displays, or, connect a DVI-D Single Link display using an HDMI to DVI adapter, such as Tripp Lite's P566-Series cables. Installation is quick and simple, with no software or drivers to install. Locate your HDMI source up to 16.4 ft. (5 m.) from the splitter, and the splitter up to 16 ft. (5 m.) from a display, for a max distance of 23 ft. (7 m.) between splitter and display. Supports Full 3D and video resolutions up to UHD 4Kx2K 3840 x 2160 (24Hz and 30Hz). High Speed HDMI and 3D compliant, with support for 36-bit Deep Color (12-bits per channel). Supports DTS-HD, Dolby True HD, Dolby Digital Plus, and LPCM 7.1 Channel Surround Sound audio. HDCP and EDID compliant.

Specifications

Ports & interfaces
Video ports quantity4
Video port typeHDMI
Video out4x HDMI
DC-in jackYes
Features
Maximum resolution3840 x 2160 pixels
Full HDYes
HD-ReadyYes
HDCPYes
Product colourBlack
Bandwidth340 MHz
Country of originVietnam
Power
AC input voltage5 V
Weight & dimensions
Weight9.52 oz (270 g)
Width6.1" (154.9 mm)
Depth2.7" (68.6 mm)
Height0.902" (22.9 mm)
Package depth7.9" (200.7 mm)
Package width10" (254 mm)
Package height2.6" (66 mm)
Package weight24.3 oz (690 g)
Packaging data
Package depth7.9" (200.7 mm)
Package width10" (254 mm)
Package height2.6" (66 mm)
Package weight24.3 oz (690 g)
Packaging content
ManualYes
Video
Maximum resolution3840 x 2160 pixels
Full HDYes
HD-ReadyYes
HDCPYes
Bandwidth340 MHz
Colour
Product colourBlack
Technical details
Video out4x HDMI
Logistics data
Master (outer) case width20.9" (530.1 mm)
Master (outer) case length16.5" (420.1 mm)
Master (outer) case height14.2" (359.9 mm)
Master (outer) case gross weight20.7 lbs (9.4 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332183894
Harmonized System (HS) code8525.50.3035
Country of originVietnam
