Tripp Lite BC36ML uninterruptible power supply (UPS) Standby (Offline) 0.036 kVA 36 W

Tripp Lite BC36ML uninterruptible power supply (UPS) Standby (Offline) 0.036 kVA 36 W

Home Network Battery Backup - 100-240V, 36VA/36W, Lithium-Ion Battery, NEMA 5-15P Plug, 4 Barrel Connectors

Trade Prices

Distributor Product SKU Stock Updated Price
D&H BATTERY BACKUP 100-240V 36W BC36MLCA Register free see stock
Ingram Micro SERIES HOME NW BATT AQ7728
Synnex TRIPPLITE BC36ML 7243440

Related Products

Description

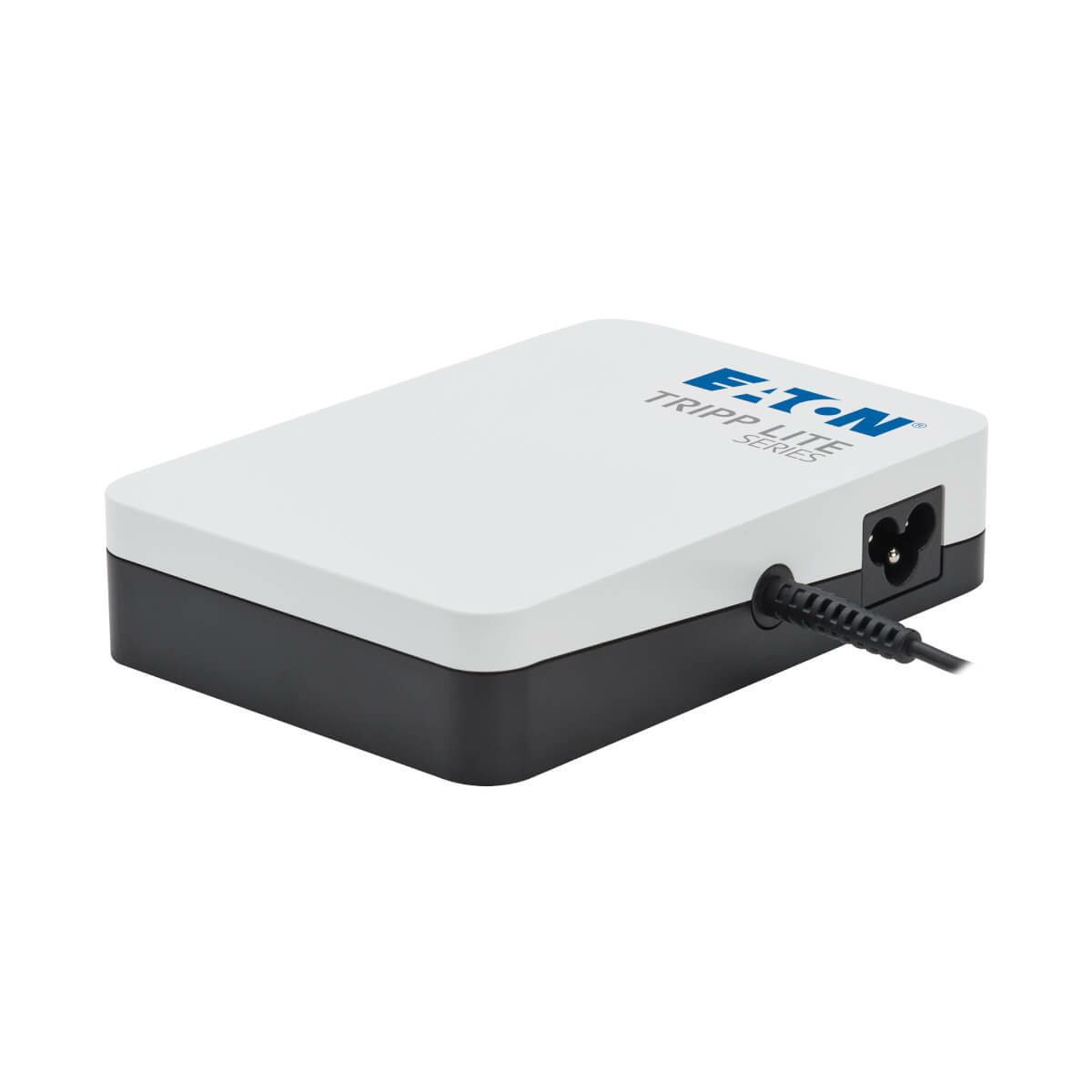

Desktop Battery Backup Keeps Critical Home Equipment Running During Power Outages
You have devices in your home that need to be operational at all times, especially when the power is out. The Internet router that keeps you connected to the world. The IP cameras that help keep you safe. The home assistants, such as the Amazon Echo and Google Nest, and the smart controllers that maintain lighting and temperature. The BC36ML AC-to-DC battery backup not only keeps those devices up and running during a power outage, but it also maintains your ability to control them remotely.

Compatible with a Wide Range of Essential Home Devices
The BC36ML single-device mini UPS system is ideal for routers, modems, wi-fi extenders, IP cameras, access control devices, VoIP phones, medical alert solutions, portable computer monitors and other low-power devices that may need battery backup. It replaces the standard AC power adapter provided with your device, which ensures power protection without additional equipment.

Dual Lithium-Ion Batteries Ensure Reliable Backup Power
This 36V battery backup features two 2200mAh lithium-ion batteries that ensure continuous operation for one connected device at a time in your home office or residential application. The cold-start function also allows the unit to be used as a power bank.

Adaptable to Your Power Needs

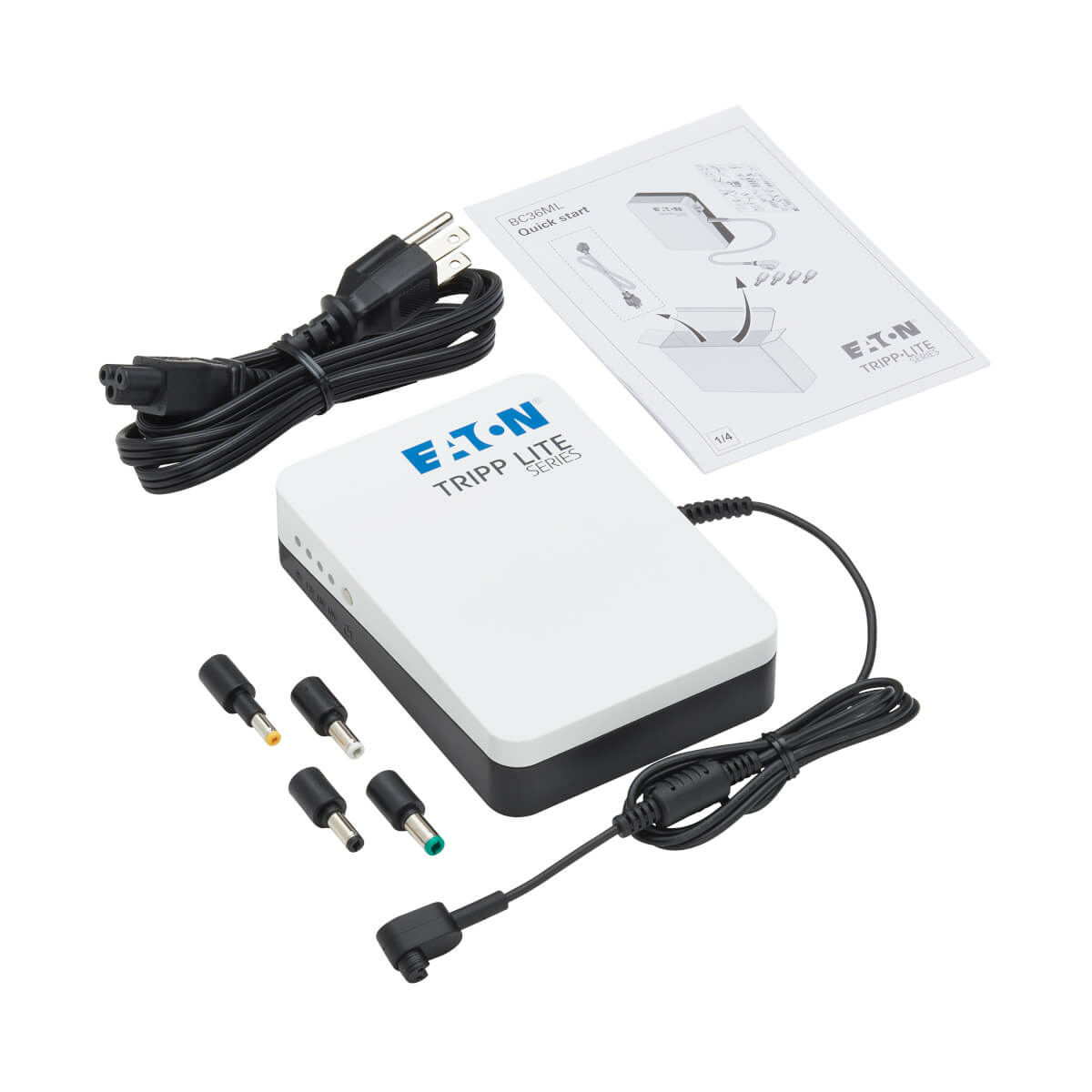

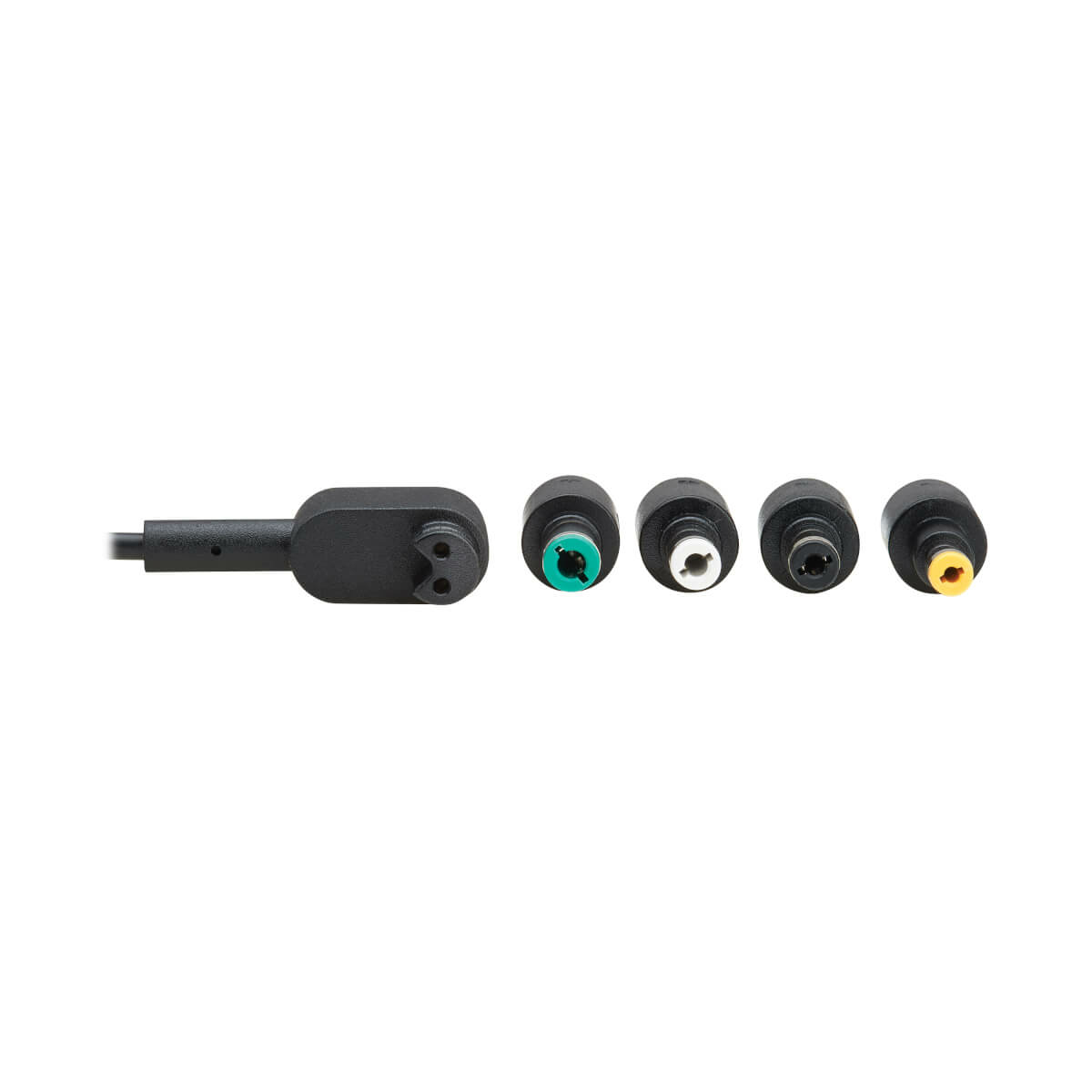

The BC36ML allows you to select the appropriate output DC voltage corresponding to your equipment: 9V/3A, 12V/3A, 15V/2.4A or 19V/1.9A (12V is the default). It features an attached output cord and four barrel adapters (6.3 x 3.0 mm, 4.75 x 1.7 mm, 5.5 x 2.1 mm, 5.5 x 2.5 mm) that take the place of your connected device’s power cord. Just connect the BC36ML to an AC wall outlet using the included input cord with NEMA 5-15P plug.

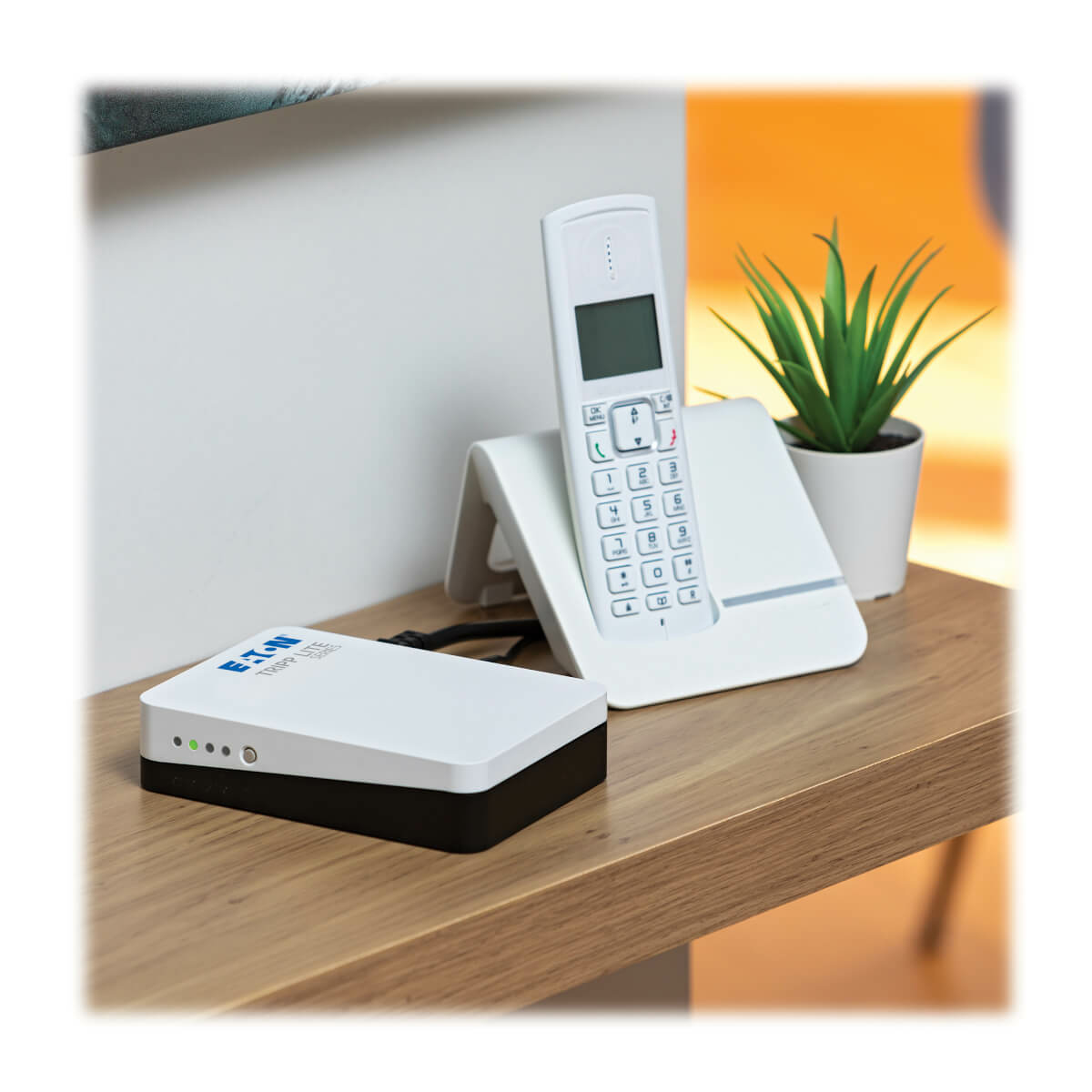

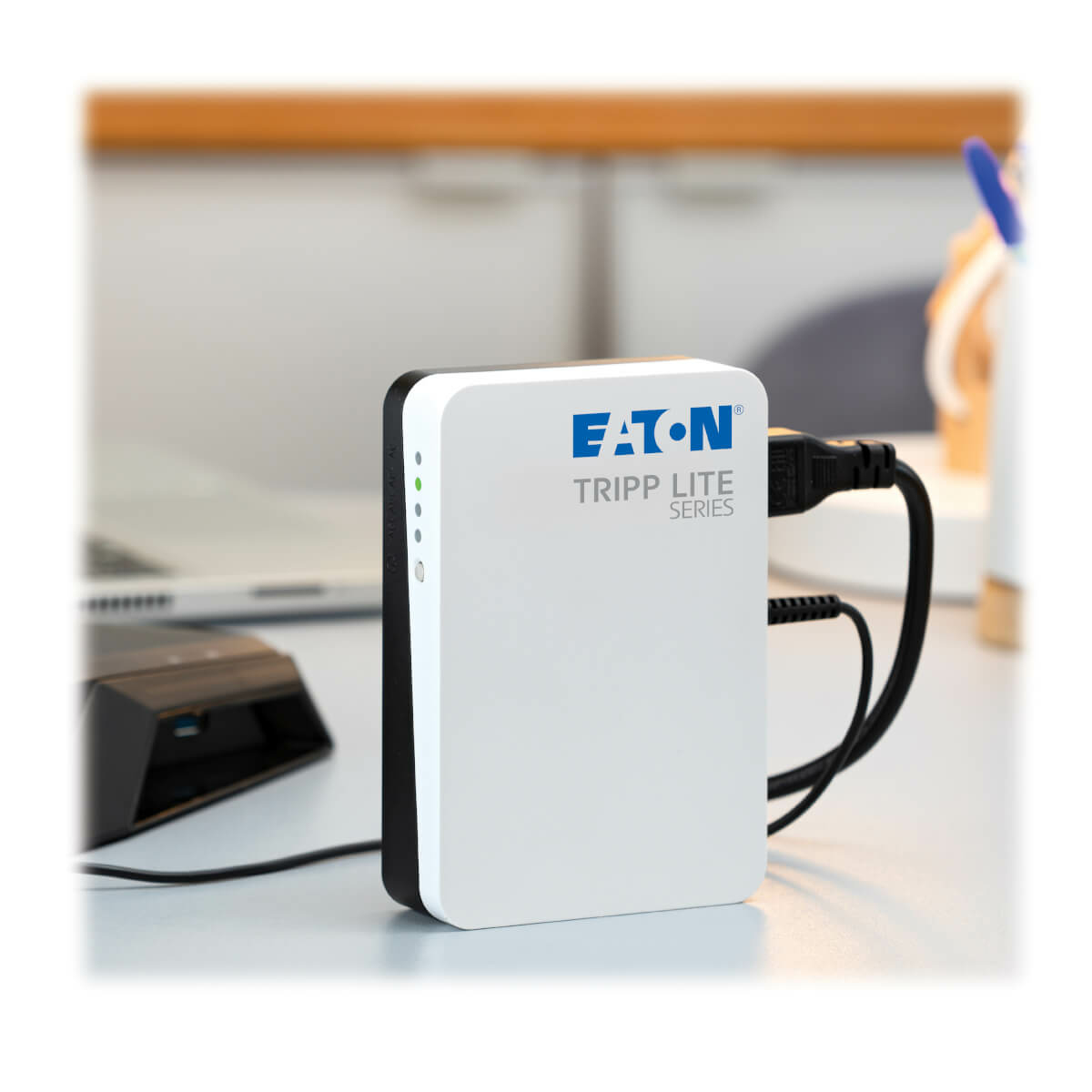

Recommended for Home Office or Residential Purposes

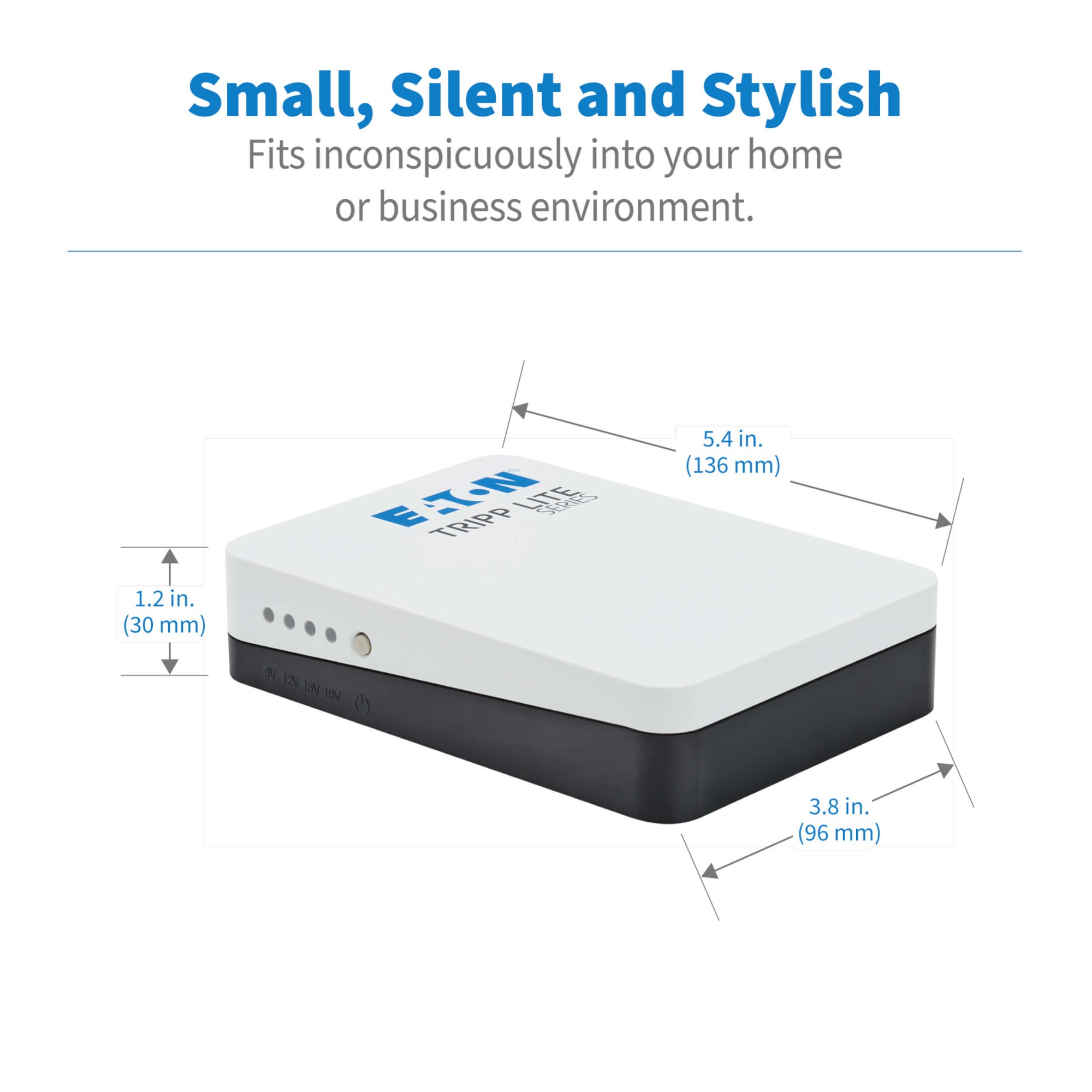

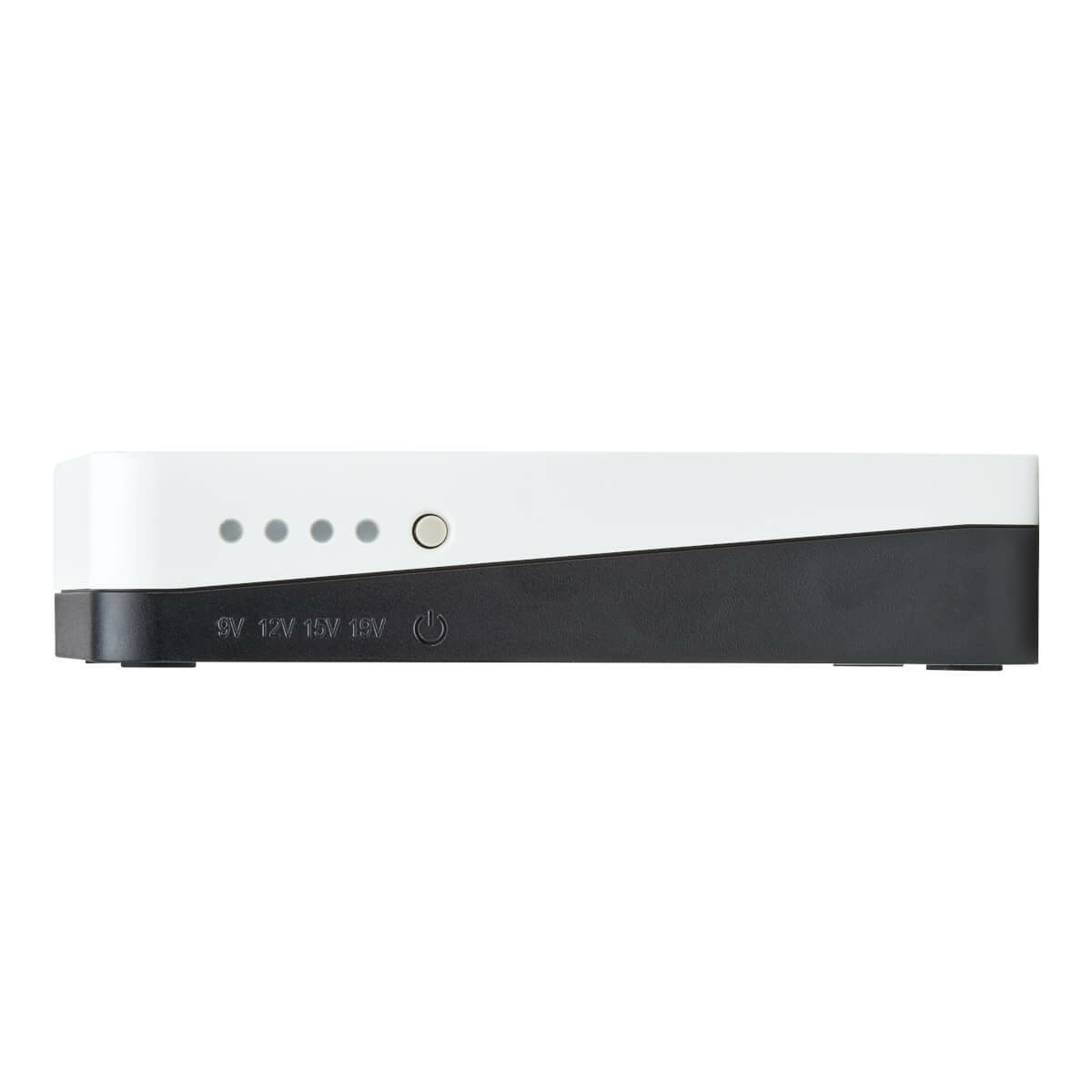

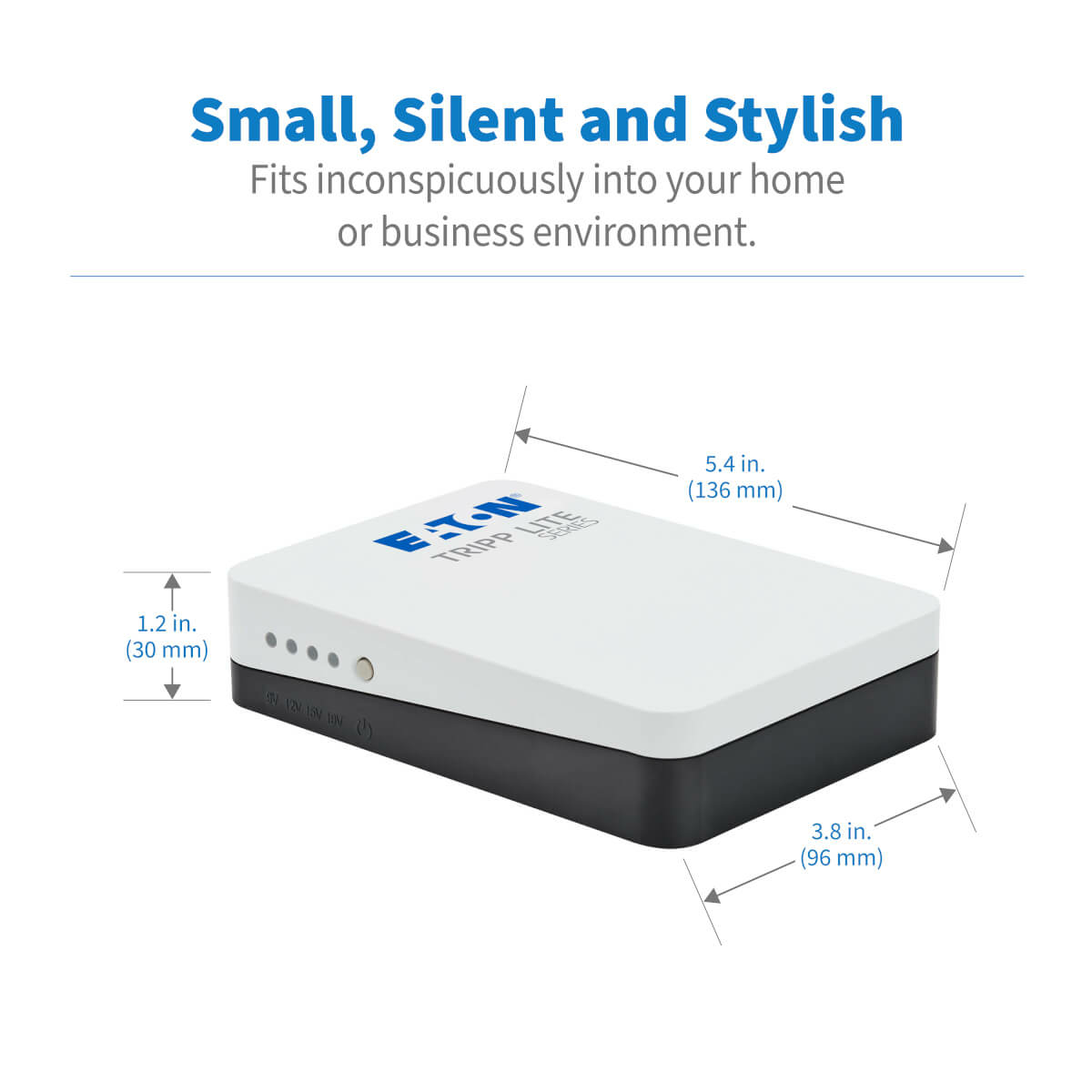

Easy-to-read LED indicators let you at a glance which output voltage you’ve selected and how much battery capacity remains in the BC36ML. The unit is small, silent and stylish to fit inconspicuously into your home or business environment. It’s easy to set up in just a few minutes.

Specifications

Power
Output power capacity0.036 kVA
Output power36 W
Input operation voltage (min)100 V
Input operation voltage (max)240 V
Output operation voltage (min)9 V
Output operation voltage (max)19 V
Input frequency50/60 Hz
Performance
UPS topologyStandby (Offline)
Power protection featuresOver current, Over voltage, Overheating
LED indicatorsYes
Features
UPS topologyStandby (Offline)
Output power capacity0.036 kVA
Country of originChina
Output power36 W
Input operation voltage (min)100 V
Input operation voltage (max)240 V
Output operation voltage (min)9 V
Output operation voltage (max)19 V
Power protection featuresOver current, Over voltage, Overheating
Input frequency50/60 Hz
Ports & interfaces
Power plugNEMA 5-15P
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery recharge time6 h

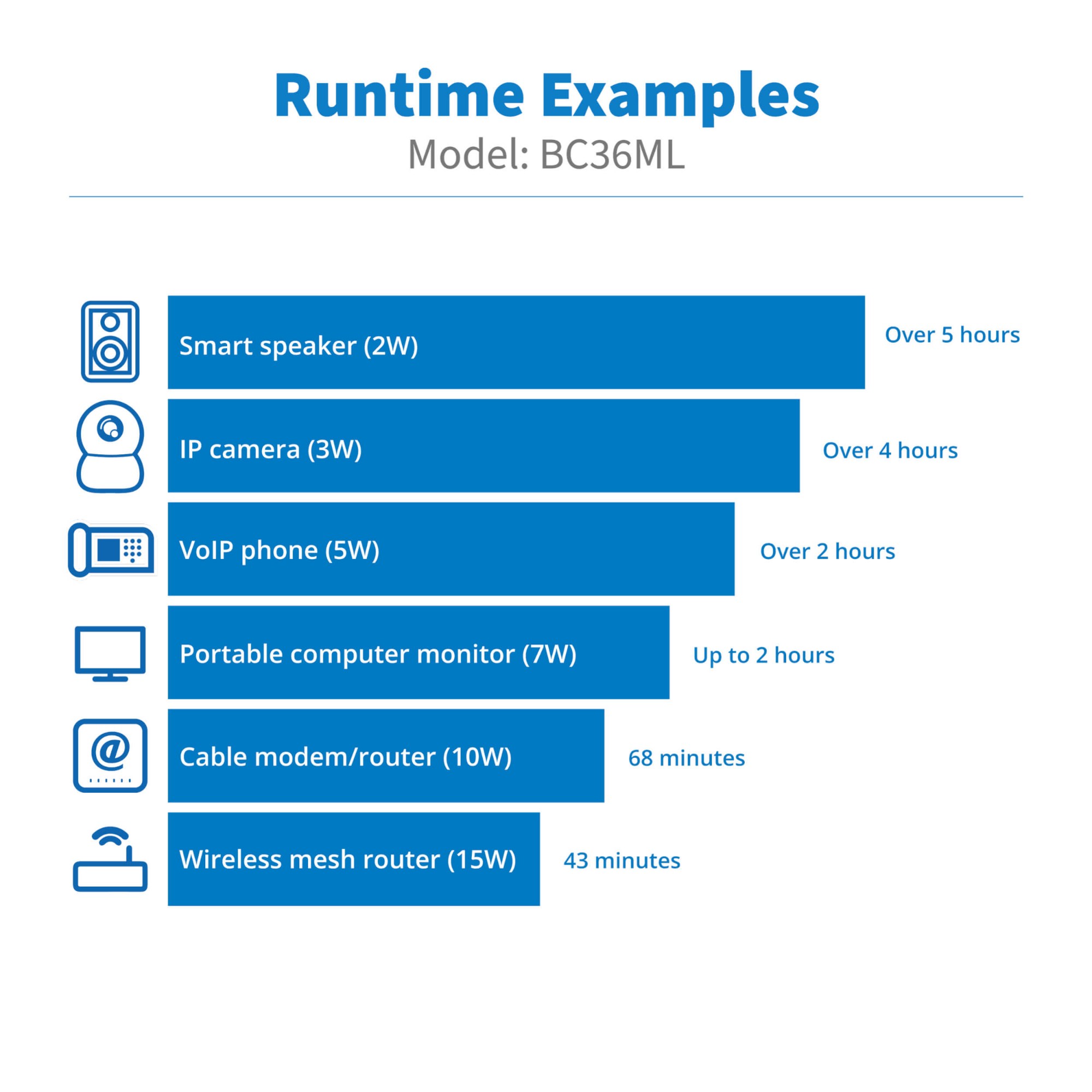

Typical backup time at half load30.4 min
Typical backup time at full load10.8 min
Design
Form factorCompact
Country of originChina
Product colourBlack, White
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 35 °C
Storage temperature (T-T)-20 - 45 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability complianceYes
Sustainability certificatesFederal Communications Commission (FCC), REACH, RoHS, WEEE
Harmonized System (HS) code8504.40.8500
Compliance certificatesFederal Communications Commission (FCC), REACH, RoHS, WEEE
Weight & dimensions
Width3.74" (95 mm)
Depth5.35" (136 mm)
Height1.18" (30 mm)
Weight12.3 oz (350 g)
Package width2.24" (57 mm)
Package depth7.56" (192 mm)
Package height6.42" (163 mm)
Packaging data
Package width2.24" (57 mm)
Package depth7.56" (192 mm)
Package height6.42" (163 mm)
Logistics data
Products per master (outer) case12 pc(s)
Master (outer) case width9.76" (248 mm)
Master (outer) case length23.6" (600 mm)
Master (outer) case height7.72" (196 mm)
Master (outer) case gross weight17.6 lbs (8 kg)
Master (outer) case GTIN (EAN/UPC)10037332279566
Harmonized System (HS) code8504.40.8500
