Tripp Lite HCTHERMISTOR temperature/humidity sensor Indoor Temperature sensor Built-in Wired
- Brand: Tripp Lite
- Category:
- SKU: HCTHERMISTOR
- EAN: 0037332164575
Medical-Grade Temperature Sensor for Healthcare Power Modules, 2 ft. (0.6 m)
Offer details
Related Products
- Mounting Kits
- Voltage Regulators
- Electrical Boxes
- Power Distribution Units (PDUs)
- Rack Cabinets
- Rack Accessories
- Remote Power Controllers
- Uninterruptible Power Supplies (UPSs)
- UPS Accessories
- Power Supply Transformers
- Power Cables
- Internal Power Cables
- Remote Controls
- Temperature & Humidity Sensors
- UPS Battery Cabinets
- Power Adapters & Inverters
Description
Medical-Grade Temperature Sensor Protects Connected Battery from Excessive Heat
This medical temperature sensor provides extra fault protection for the sealed lead acid (SLA) batteries in your HC150SL or HCINT150SL power module for mobile medical carts. The HCTHERMISTOR lets the power module shut down battery charger if the battery’s temperature exceeds 50 degrees Celsius (122 degrees Fahrenheit). It helps prevent overcharging, which can protect the connected battery and prolong its lifespan.
Compatible with Medical Power Modules

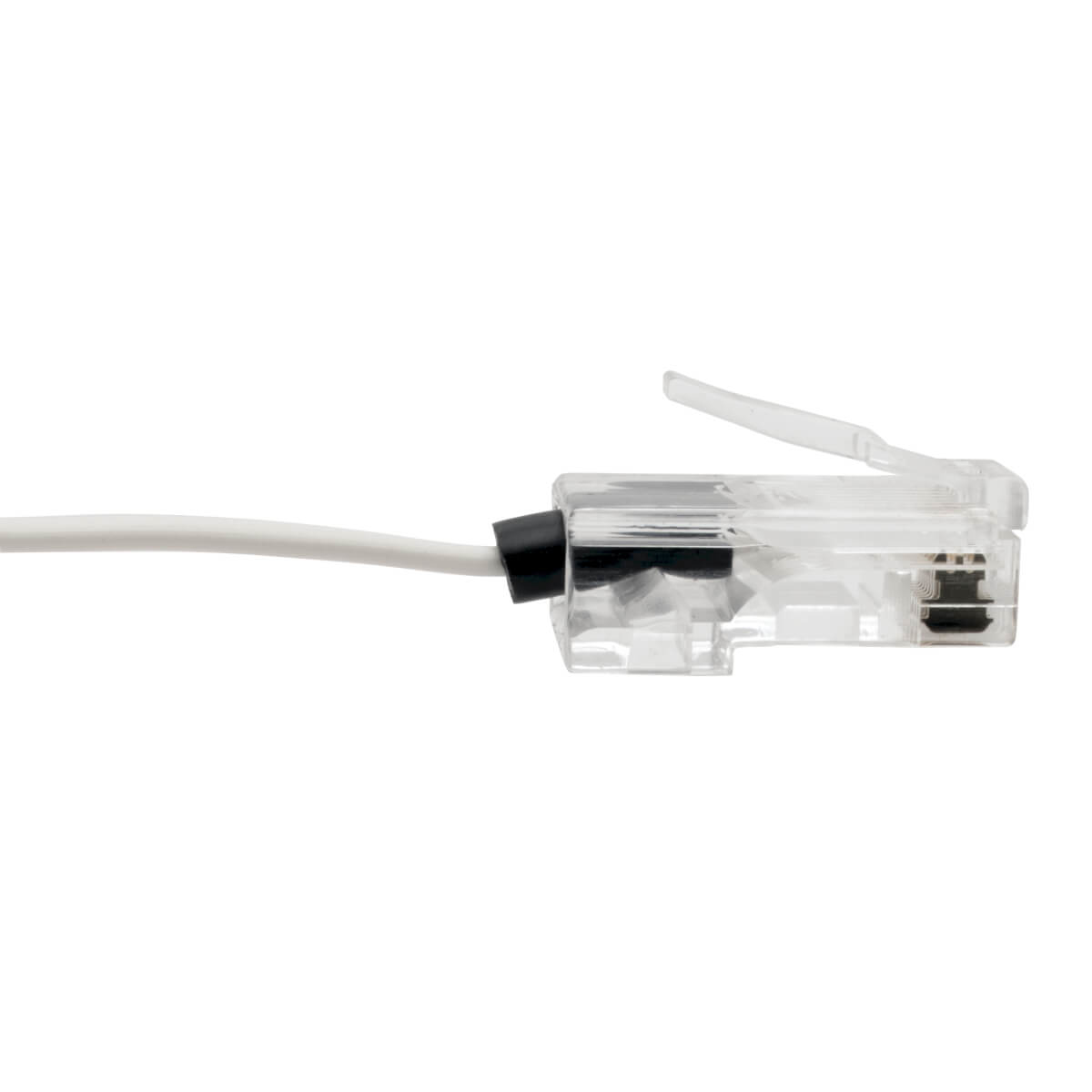

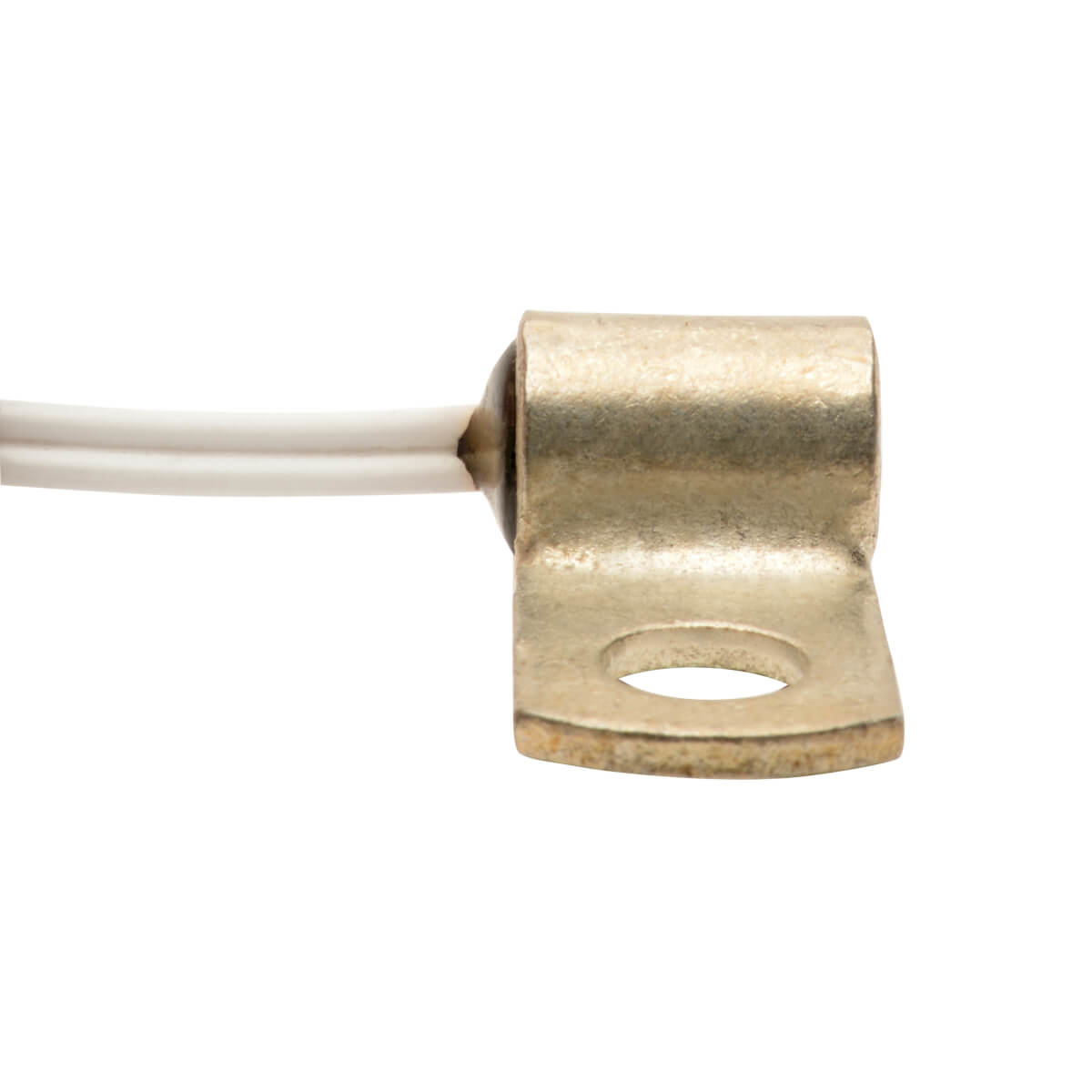

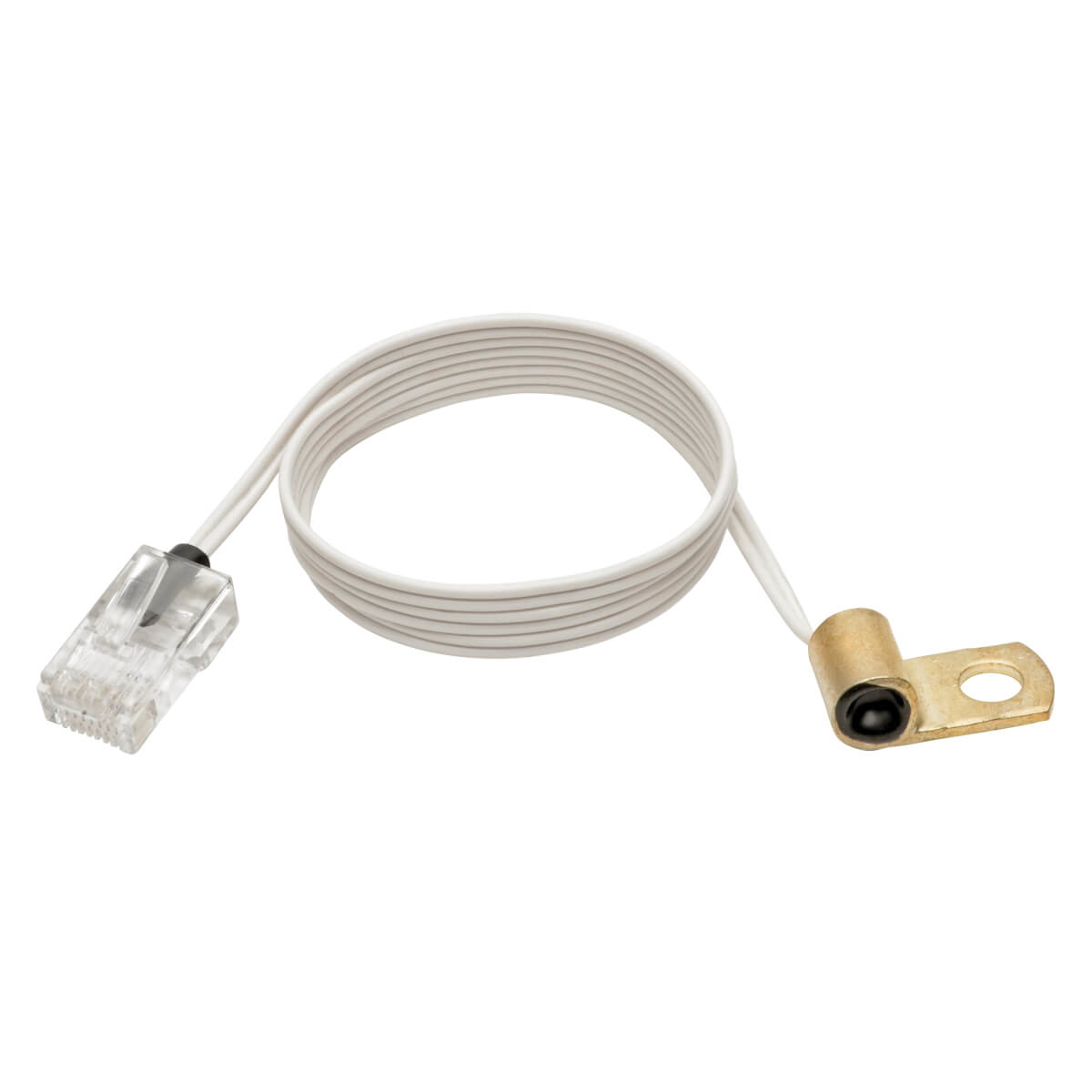

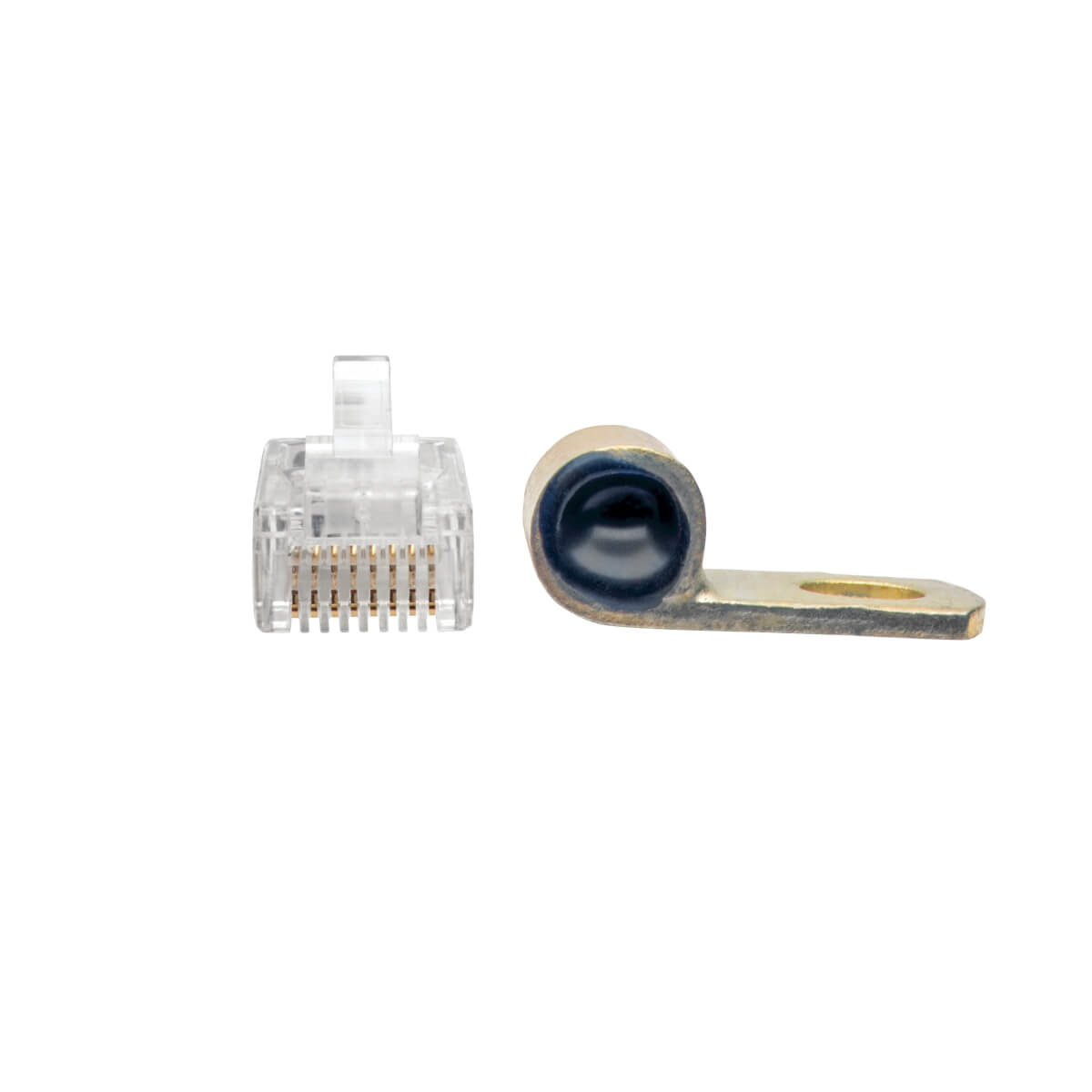

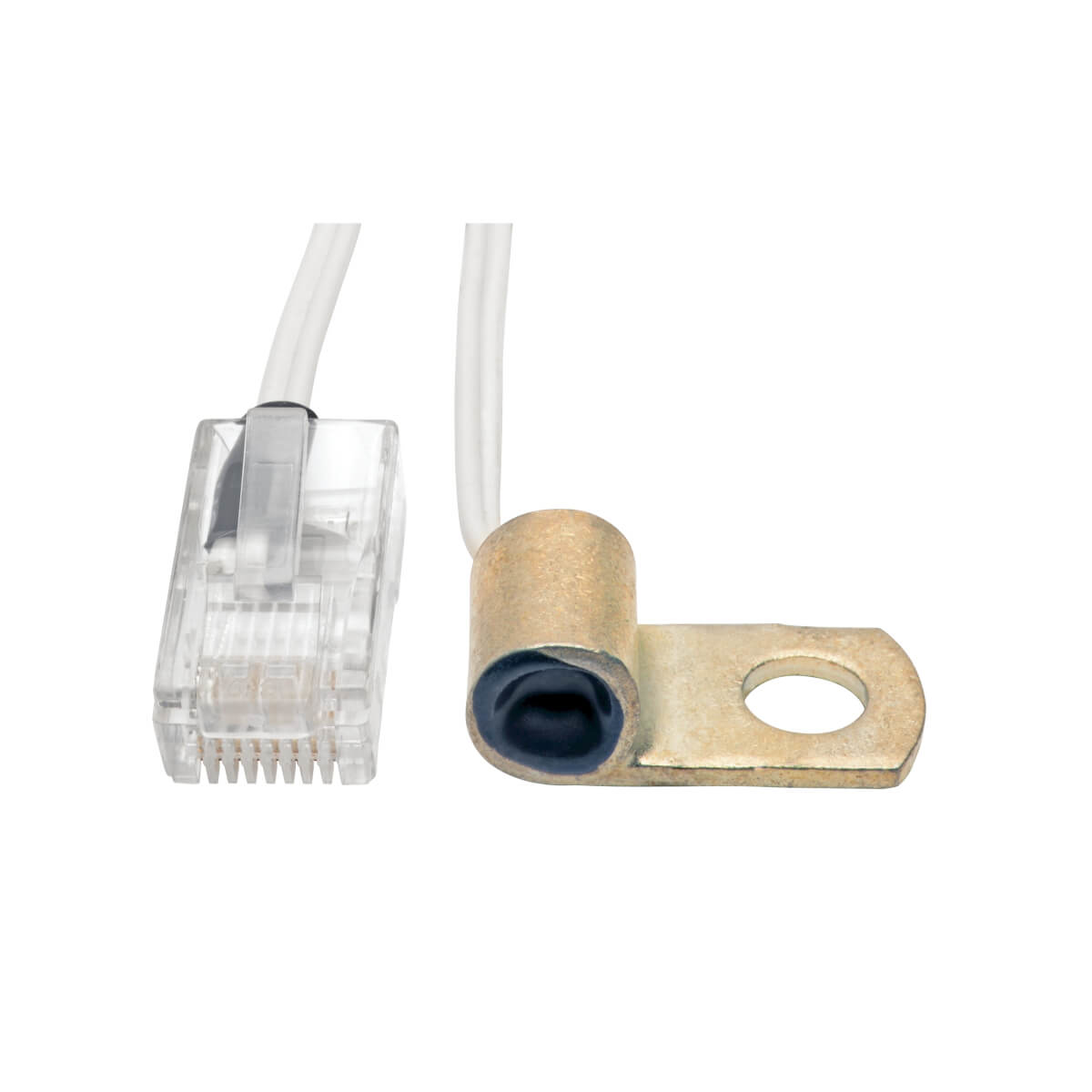

Connect the RJ45 end of the two-foot medical-grade temperature sensor cable to the temperature sensor port on your power module. The other end is a ring terminal that connects to the battery’s negative post.
This medical temperature sensor provides extra fault protection for the sealed lead acid (SLA) batteries in your HC150SL or HCINT150SL power module for mobile medical carts. The HCTHERMISTOR lets the power module shut down battery charger if the battery’s temperature exceeds 50 degrees Celsius (122 degrees Fahrenheit). It helps prevent overcharging, which can protect the connected battery and prolong its lifespan.
Compatible with Medical Power Modules
Connect the RJ45 end of the two-foot medical-grade temperature sensor cable to the temperature sensor port on your power module. The other end is a ring terminal that connects to the battery’s negative post.
Specifications
Technical details | |
---|---|
Sensor type | Temperature sensor |
Purpose | Indoor |
Connectivity technology | Wired |
Type | Built-in |
Operating radius | 118.1" (3 m) |
Sustainability certificates | RoHS |
Master (outer) case GTIN (EAN/UPC) | 10037332164589 |
Compliance certificates | RoHS |
Weight & dimensions | |
Weight | 0.353 oz (10 g) |
Package width | 1.26" (32 mm) |
Package depth | 1.18" (30 mm) |
Package height | 5.28" (134.1 mm) |
Package weight | 0.705 oz (20 g) |
Display | |
Built-in display | No |
Logistics data | |
Country of origin | China |
Master (outer) case width | 13.6" (345.4 mm) |
Master (outer) case length | 13.2" (335.3 mm) |
Master (outer) case height | 12.2" (309.9 mm) |
Master (outer) case gross weight | 11.7 lbs (5.31 kg) |
Products per master (outer) case | 200 pc(s) |
