Tripp Lite N844B-LOOP-12F InfiniBand/fibre optic cable 3.94" (0.1 m) MPO/MTP OFNR Aqua color, Black
- Brand: Tripp Lite
- Category:
- SKU: N844B-LOOP-12F
- EAN: 0037332272867
Multimode 50/125 OM3 Loopback Fiber Optic Cable Tester (12F MTP/MPO Female), LSZH, Aqua
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
FIBER CABLE TESTER MMF | 968A9A | |||
|
FIBER TESTER MMF 50/125 LOOP F | POW-N844BLOOP12F | |||
|
FIBER CABLE TESTER MMF 12FMTP/MPO FEMALE | 6854634 |
Related Products
-
Category: Fibre Optic Adapters -
Category: Fibre Optic Adapters -
Category: Fibre Optic Adapters -
Category: Fibre Optic Adapters -
Category: Fibre Optic Adapters -
Category: Fibre Optic Adapters -
Category: Fibre Optic Adapters
Description
Perform Optical Link Testing of Your 40Gb QSFP+ Devices

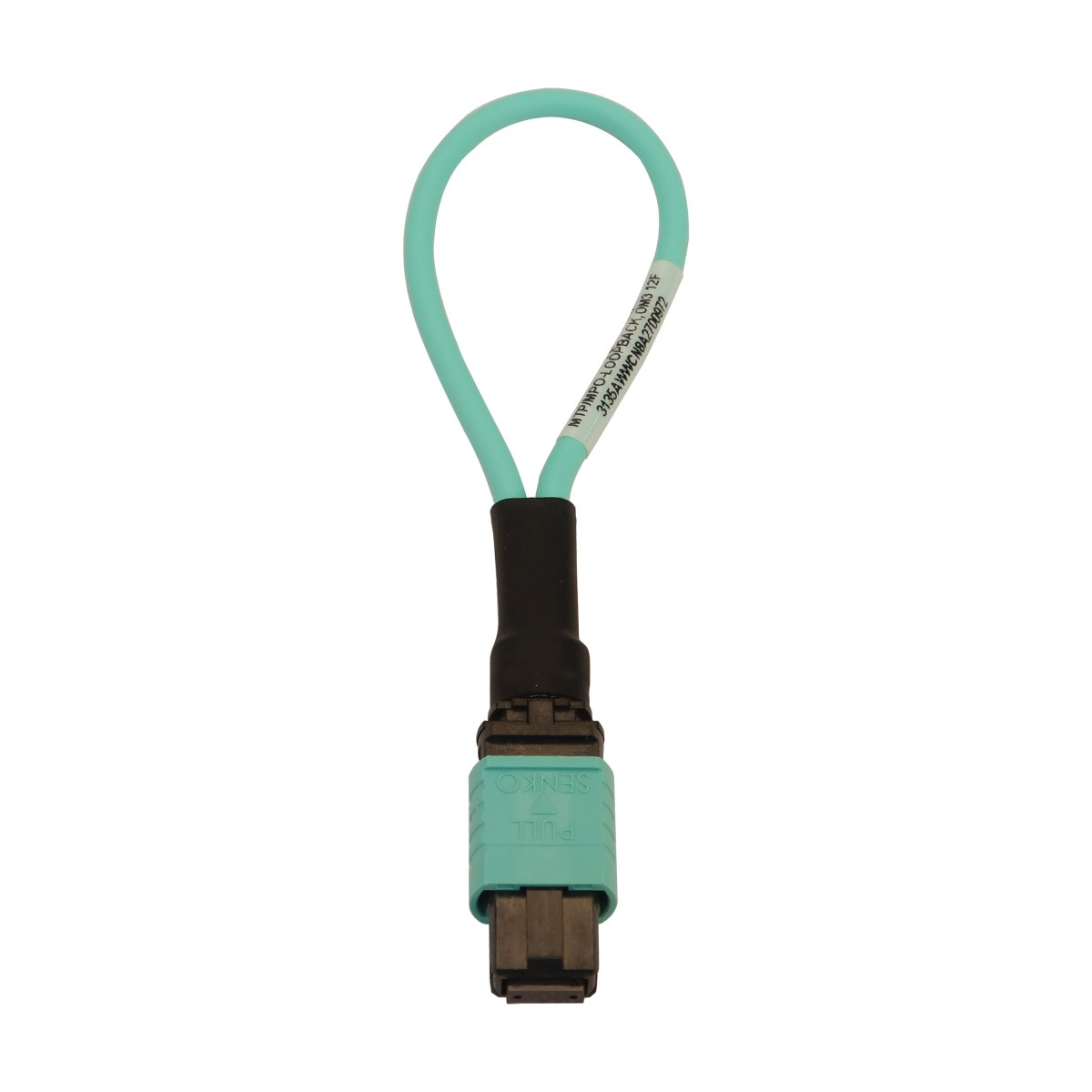

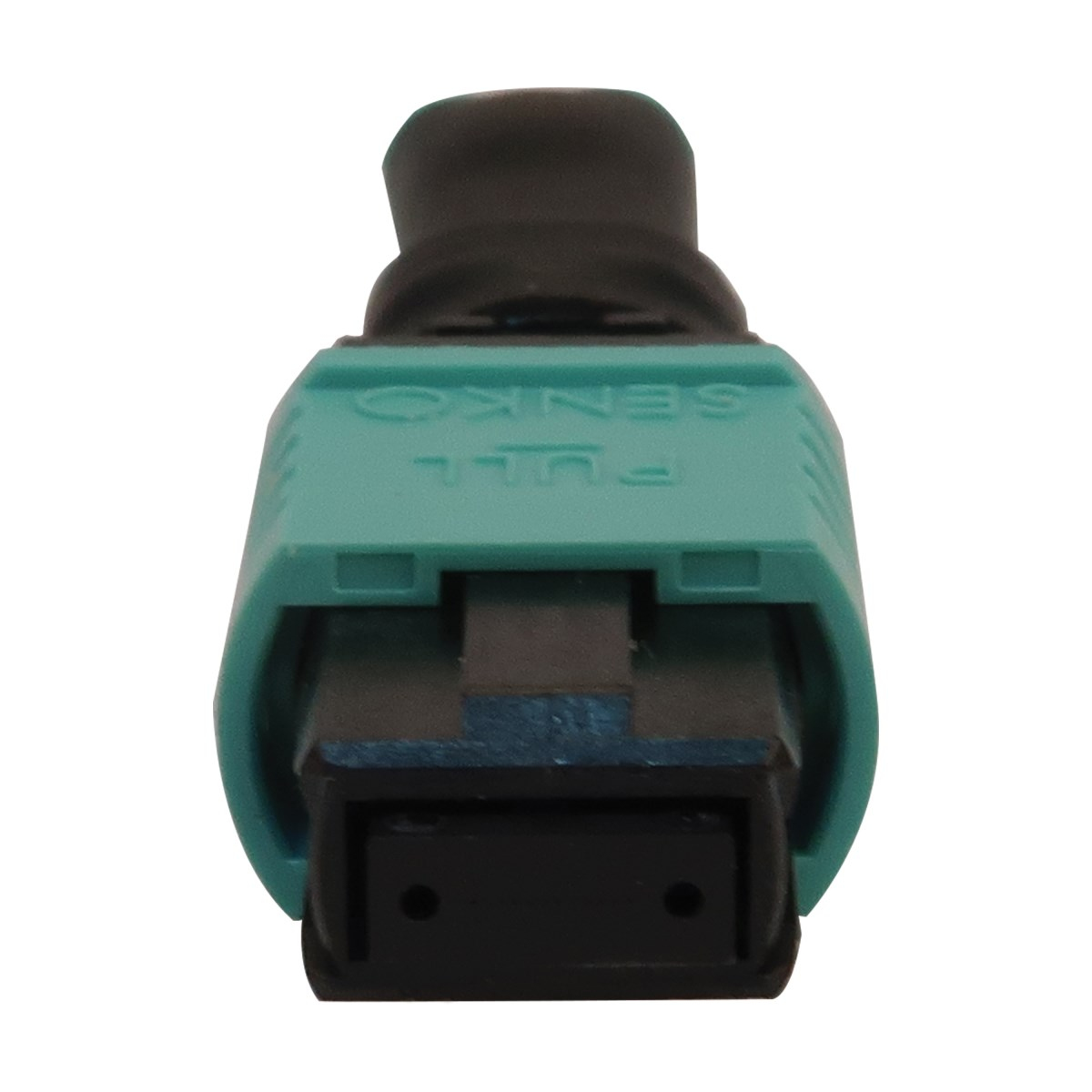

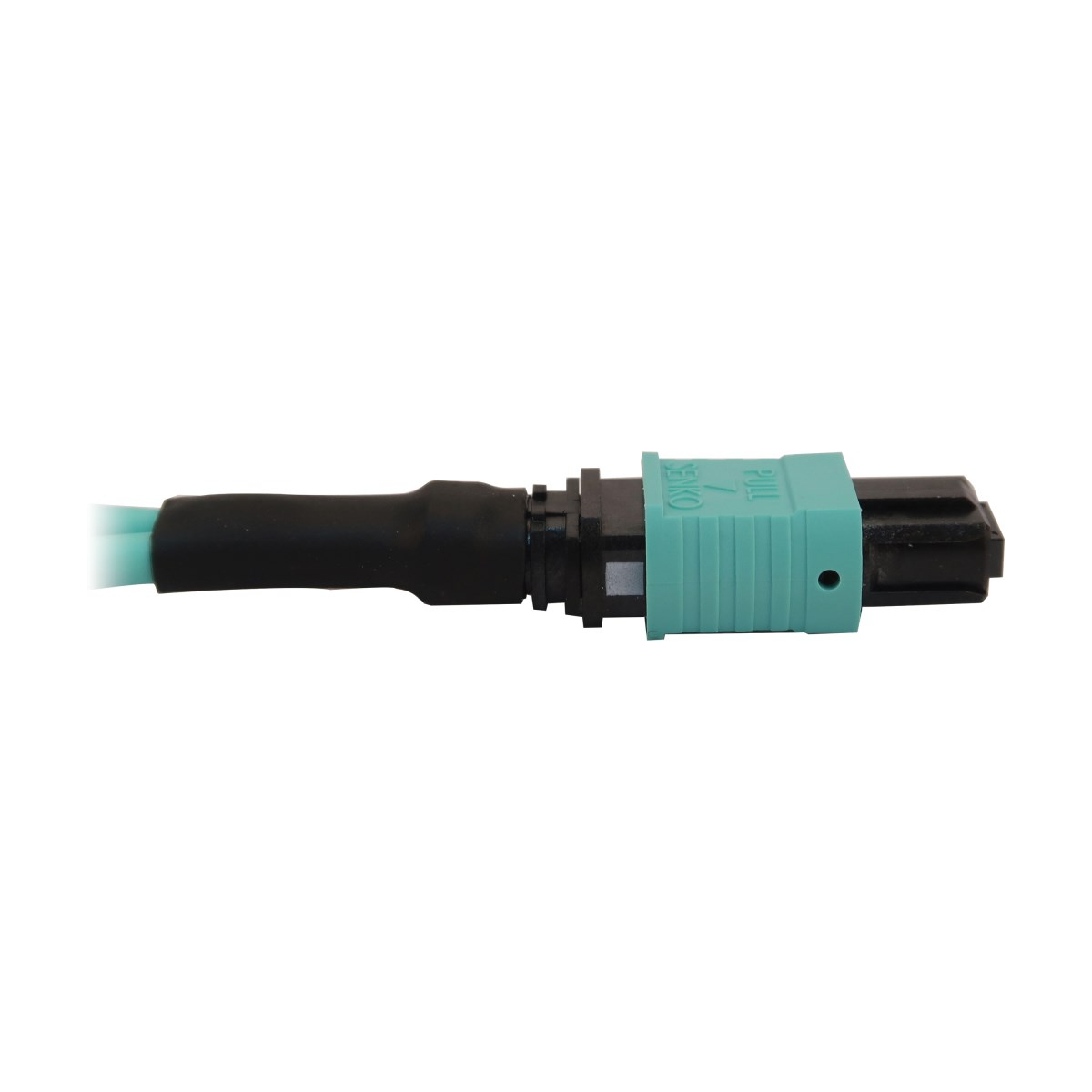

The N844B-LOOP-12F is an OM3-rated 50/125 fiber optic loopback cable with an MTP/MPO female connector with a 12-pin configuration (1-12, 2-11, 3-10, 4-9, 5-8, 6-7), allowing testing to be performed on a complete link. With an overall length of approximately 4 inches, the N844B-LOOP-12F is easy to take with you for testing anywhere in the network. An included dust cap protects the connector when not in use.
The N844B-LOOP-12F is an OM3-rated 50/125 fiber optic loopback cable with an MTP/MPO female connector with a 12-pin configuration (1-12, 2-11, 3-10, 4-9, 5-8, 6-7), allowing testing to be performed on a complete link. With an overall length of approximately 4 inches, the N844B-LOOP-12F is easy to take with you for testing anywhere in the network. An included dust cap protects the connector when not in use.
Specifications
| Features | |
|---|---|
| Cable length | 3.94" (0.1 m) |
| Fibre optic type | OM3 |
| Connector 1 | MPO/MTP |
| Connector 2 | No |
| Cable type | OFNR |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Jacket material | Low smoke zero halogen (LSZH) |
| Insertion loss | 0.35 dB |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 400 Gbit/s |
| Bending radius | 0.787" (2 cm) |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Country of origin | China |
| Ethernet interface type | 40 Gigabit Ethernet, 100 Gigabit Ethernet, 400 Gigabit Ethernet |
| Wavelengths supported | 850,1300 nm |
| Harmonized System (HS) code | 8544.70.0000 |
| Product colour | Aqua color, Black |
| Connector 2 gender | No |
| Connector 1 gender | Female |
| Connector polish type | PC |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | UL ECOLOGO |
| Master (outer) case GTIN (EAN/UPC) | 10037332272864 |
| Compliance certificates | RoHS, CE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Weight & dimensions | |
| Cable length | 3.94" (0.1 m) |
| Cable diameter | 0.118" (3 mm) |
| Bending radius | 0.787" (2 cm) |
| Package width | 4" (101.6 mm) |
| Package depth | 0.5" (12.7 mm) |
| Package height | 5.9" (149.9 mm) |
| Packaging data | |
| Package width | 4" (101.6 mm) |
| Package depth | 0.5" (12.7 mm) |
| Package height | 5.9" (149.9 mm) |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 5.8" (147.3 mm) |
| Master (outer) case length | 3.5" (88.9 mm) |
| Master (outer) case height | 2" (50.8 mm) |
| Master (outer) case gross weight | 3.17 oz (90 g) |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 8544.70.0000 |
| Quantity per pack | 1 pc(s) |
