Tripp Lite SR4POST13 rack cabinet 13U Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SR4POST13
  • EAN: 0037332144041 0999994801048 50 ...4801048 5057103001736 0373321440412 0836339574062 0600889182912 0037332160089 0079531730236more
13U SmartRack 4-Post Open Frame Rack - Organize and Secure Network Rack Equipment

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro SMARTRACK 4POST OPEN 60618J Register free see stock
Synnex 13U SmartRack 4-Post Open Frame Rack - Organize and Secure Network Rack Equipmen 4354664

Related Products

Description

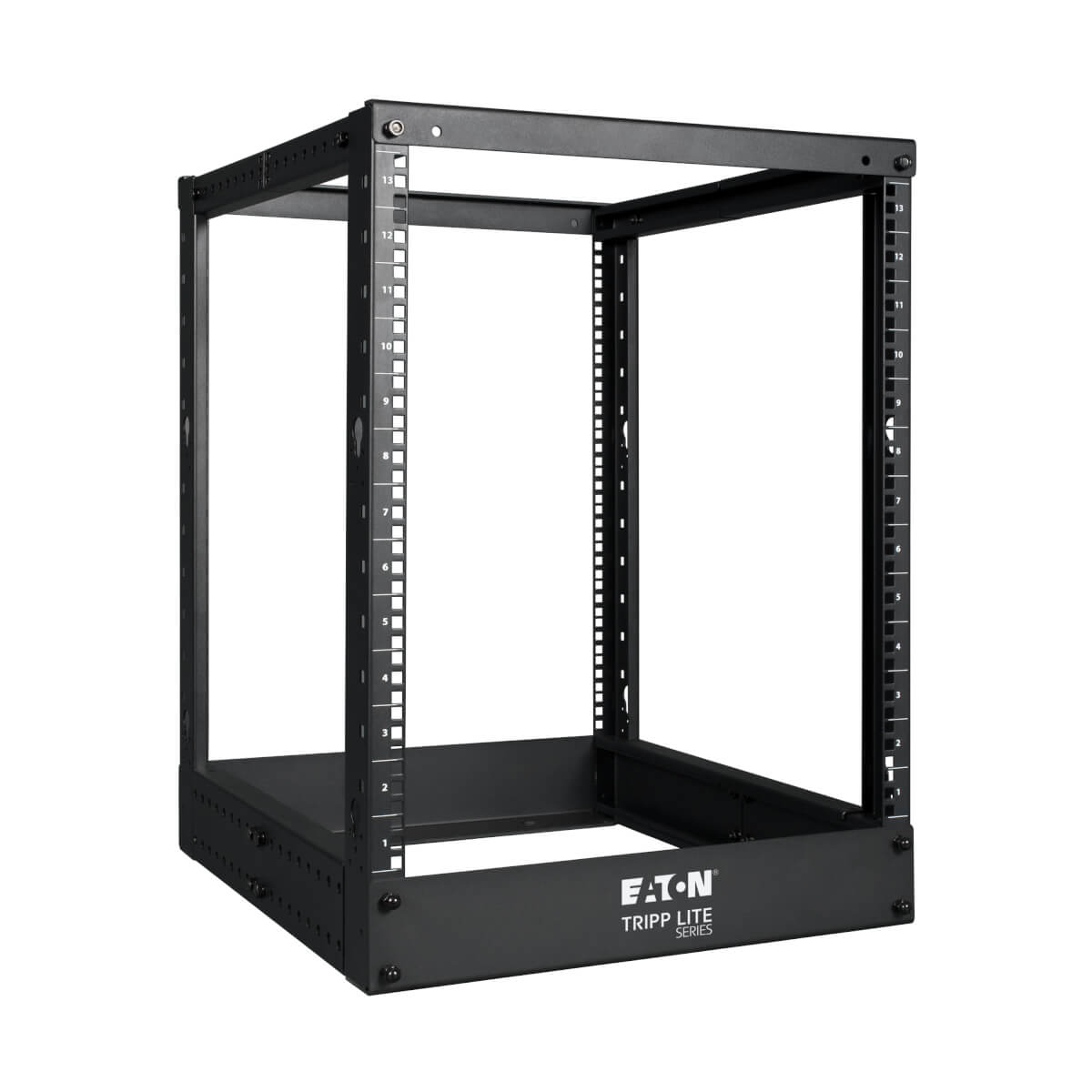

This 13U 4-Post Open Frame Rack helps IT managers organize their equipment array and provides fast, easy access to installed IT equipment. The SR4POST13 is a simple solution for housing IT equipment in secure environments and other areas that don't require a lockable rack solution. This 13U rack features heavy-duty cold-rolled steel construction with a black powder-coated finish for durability. It supports stationary loads up to 1,000 pounds (453.6 kilograms). The SR4POST13 comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions. For high-density applications, multiple units can be bolted together side by side.

The open design of the SR4POST13 provides unobstructed airflow and easy access to equipment and cabling. It has numbered, square-hole mounting positions for easy installation of standard 19-inch rack equipment. The SR4POST13 supports equipment depths from 22 to 36 inches. This rack also accommodates toolless button-hole mounting for vertical PDUs and cable managers.

Specifications

Weight & dimensions
Package width4.53" (115.1 mm)
Package depth55.5" (1410 mm)
Package height6.5" (165.1 mm)
Package weight43.4 lbs (19.7 kg)
Width4.53" (115.1 mm)
Depth55.5" (1410 mm)
Height28.3" (718.8 mm)
Weight39 lbs (17.7 kg)
Features
Rack capacity13U
Maximum weight capacity1000 lbs (453.6 kg)
Product colourBlack
CertificationEIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
Packaging data
Package width4.53" (115.1 mm)
Package depth55.5" (1410 mm)
Package height6.5" (165.1 mm)
Package weight43.4 lbs (19.7 kg)
Technical details
Master (outer) case GTIN (EAN/UPC)10037332144048
Harmonized System (HS) code8517.79.0000
Rack capacity13U
Logistics data
Master (outer) case width20.5" (519.9 mm)
Master (outer) case length55.9" (1420.1 mm)
Master (outer) case height15.4" (389.9 mm)
Master (outer) case gross weight440 lbs (199.6 kg)
Products per master (outer) case9 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
