Tripp Lite SRGP1KO cable entry system

Tripp Lite SRGP1KO cable entry system

SmartRack Cable Gland Plate for NEMA-Rated Enclosure Cabinets, 6 Ports (0.5 in.)

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro CABLE GRAND PLATE FOR ENCLOSURE 261C1F Register free see stock
Synnex TRIPPLITE CABLE GRAND PLATE FOR ENCLOSURE CABINETS 7170899

Related Products

Description

Cable entry plate covers entry/exit cable cutouts on SmartRack NEMA 3R and NEMA 4 industrial enclosures.

Gasketed Cable Entry Plate for NEMA-Rated Industrial Enclosures

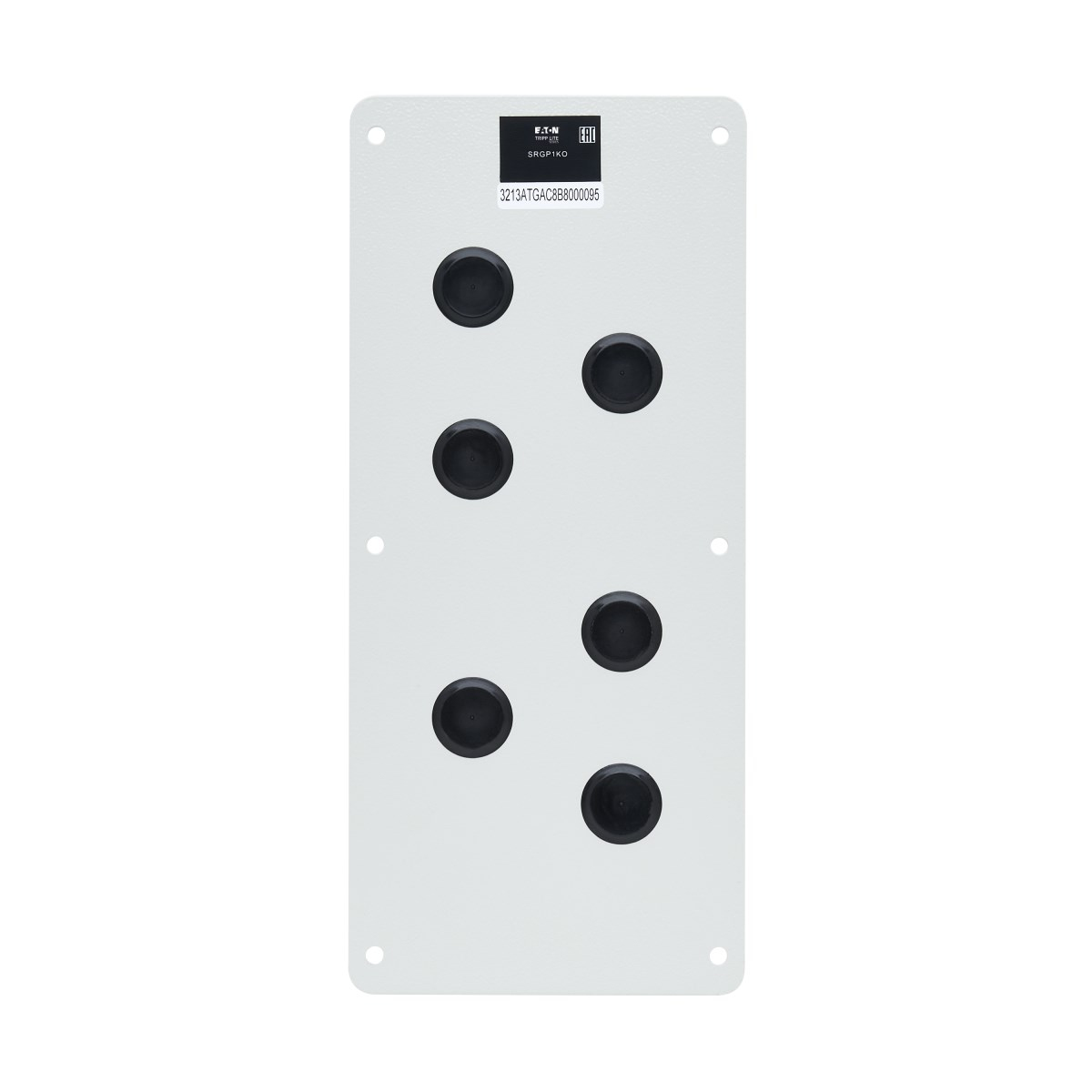

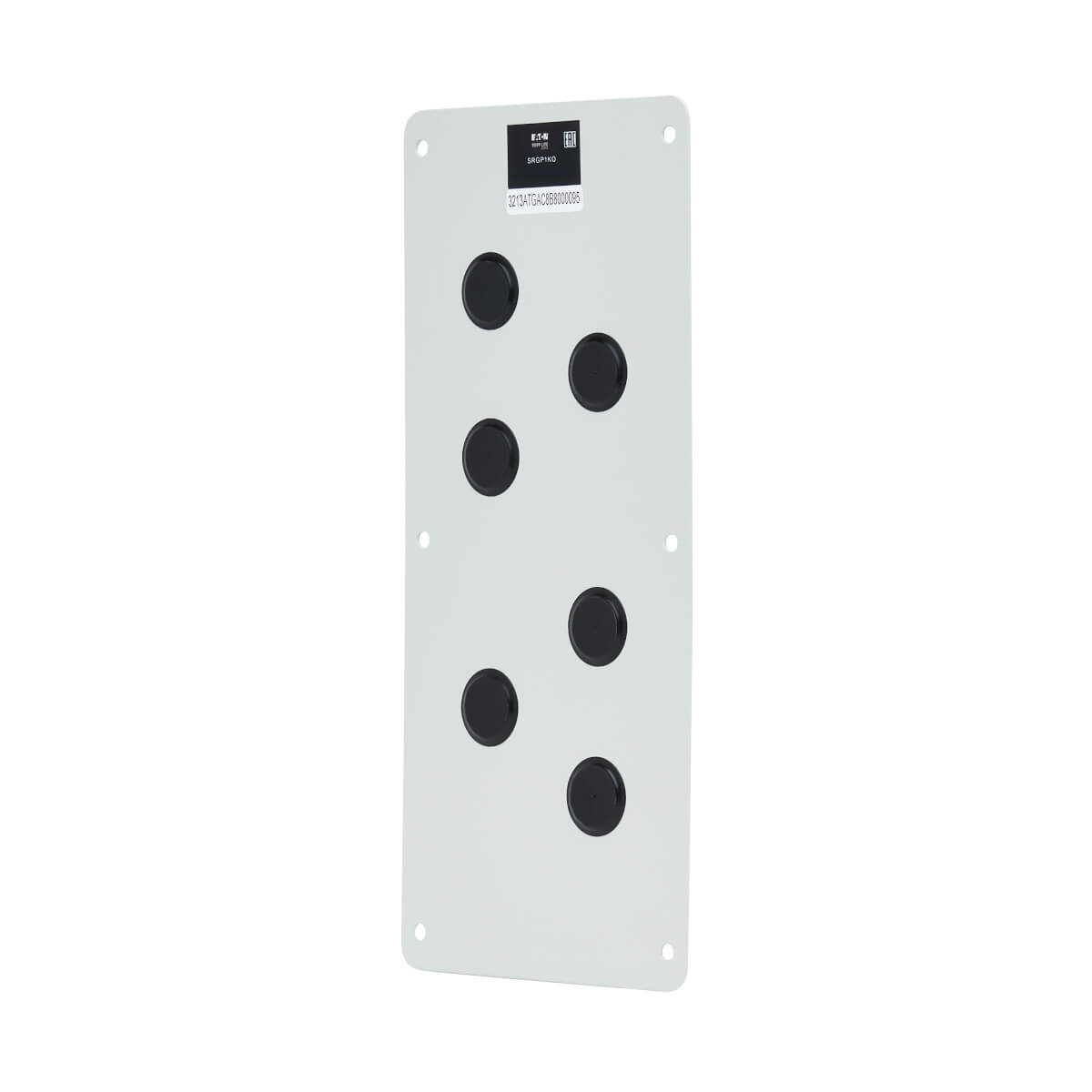

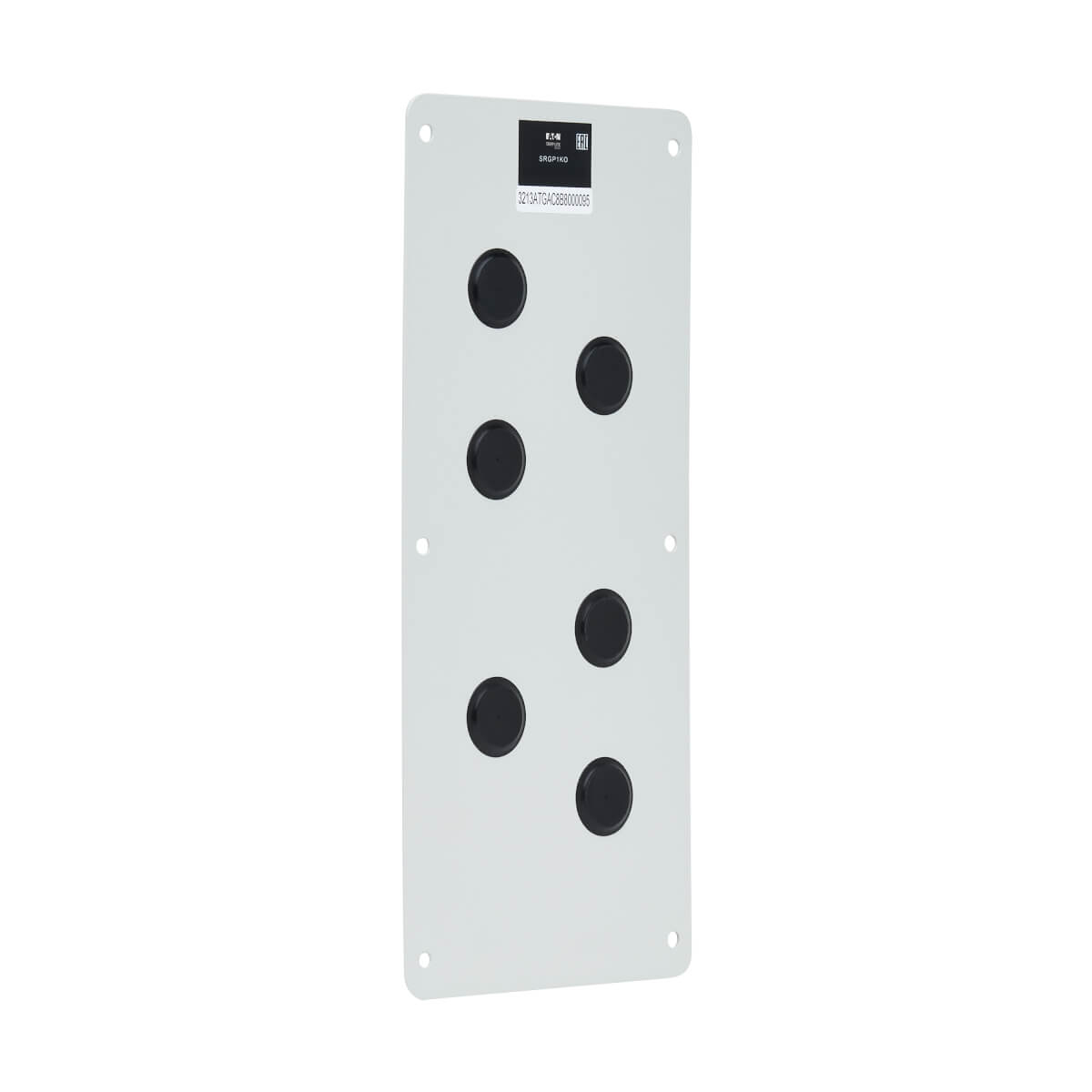

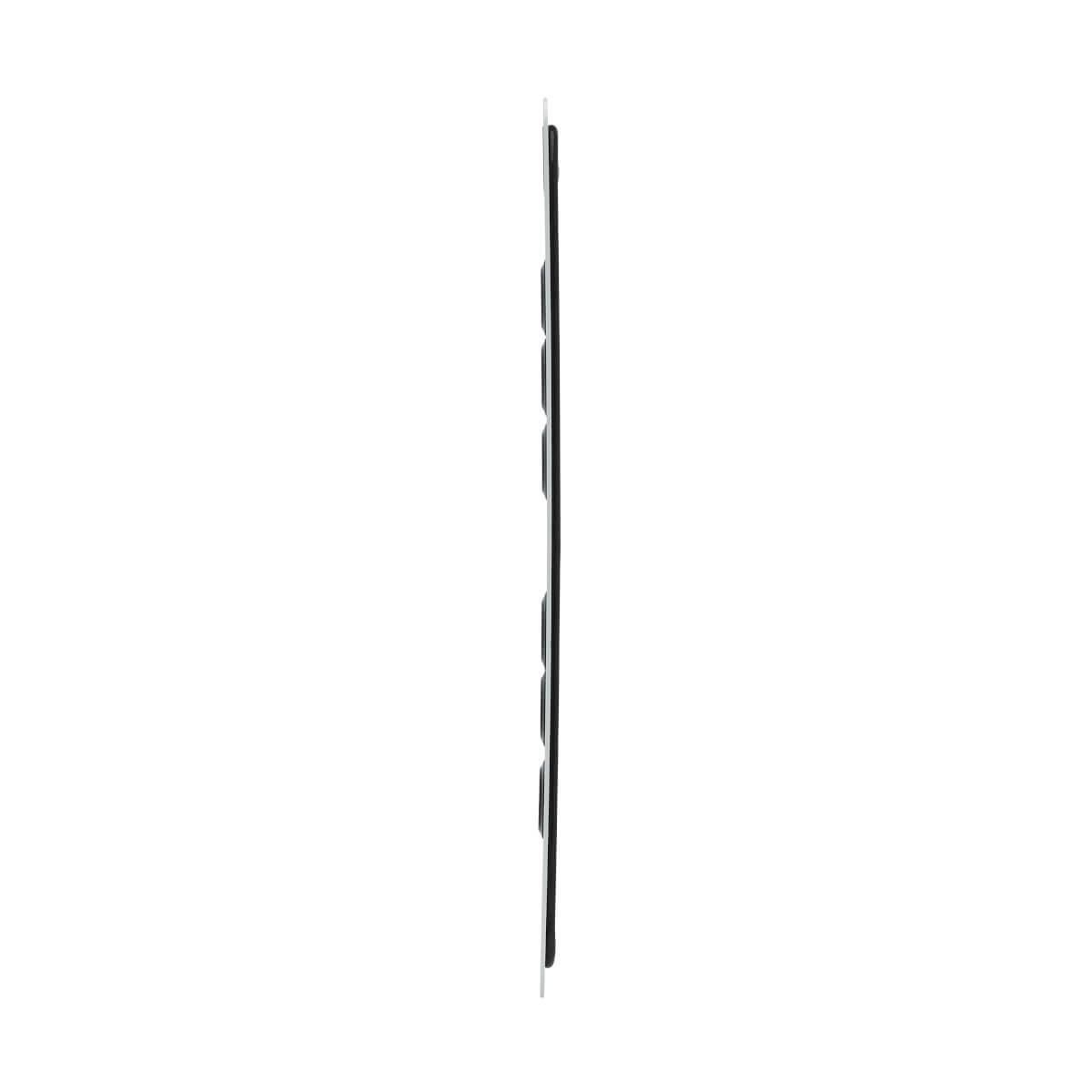

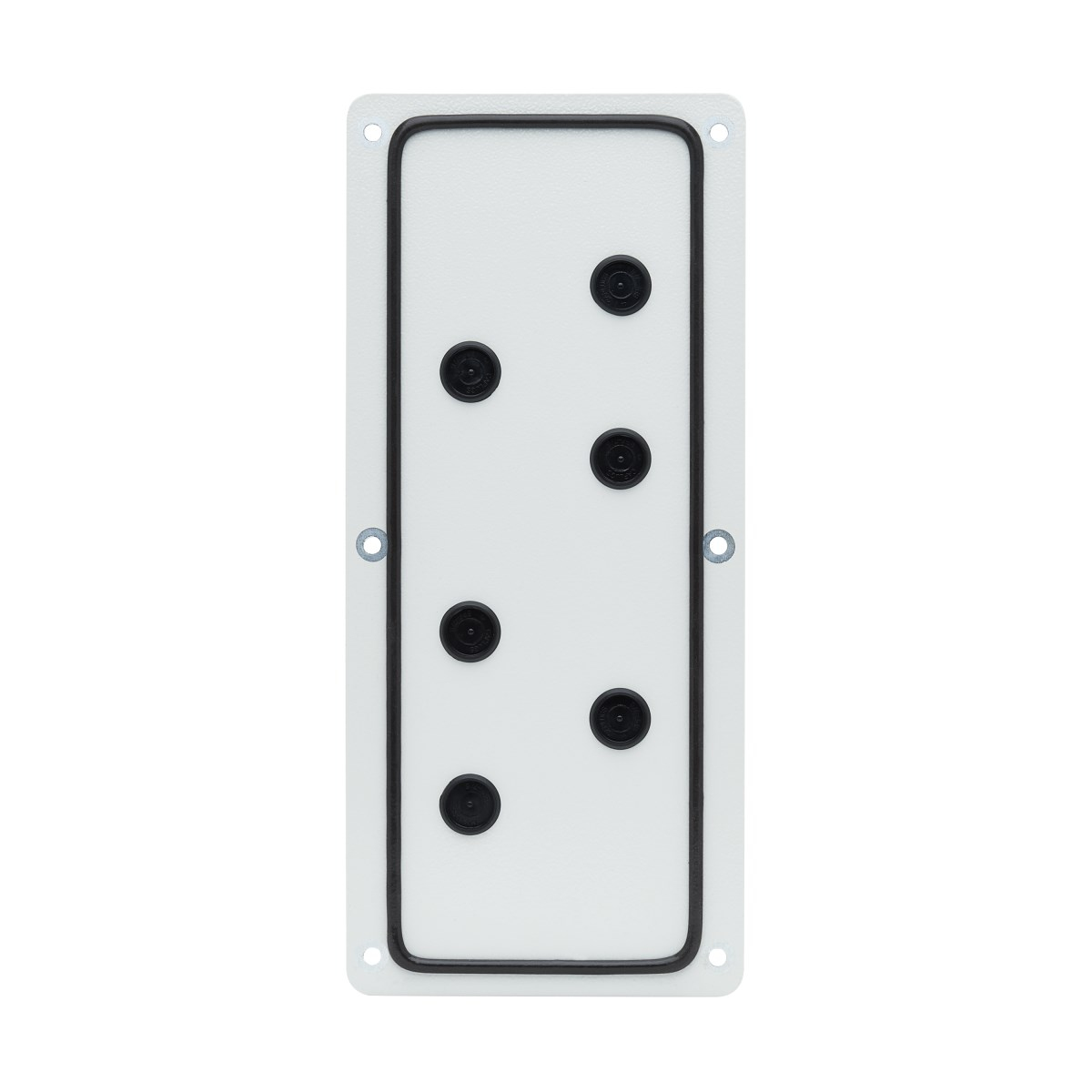

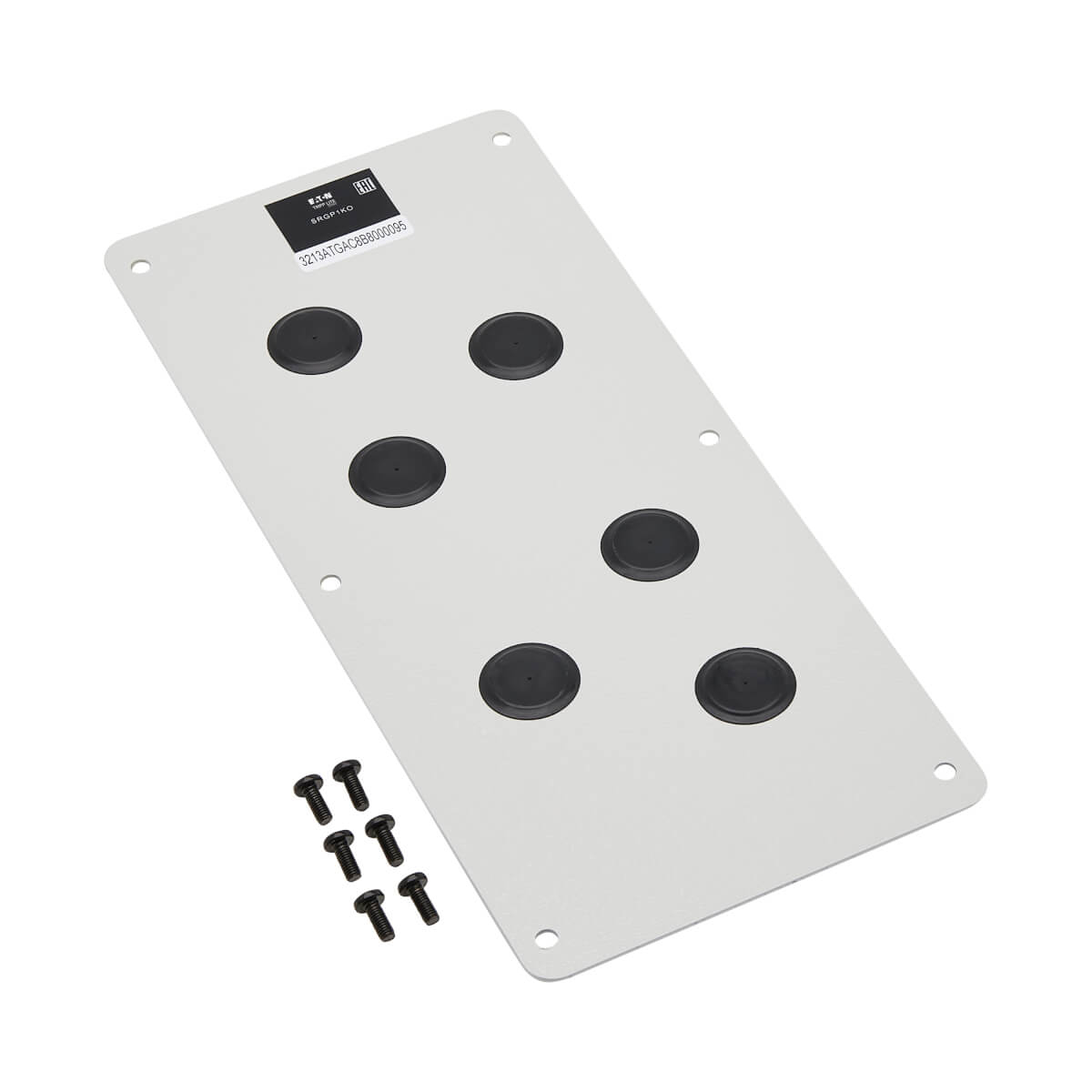

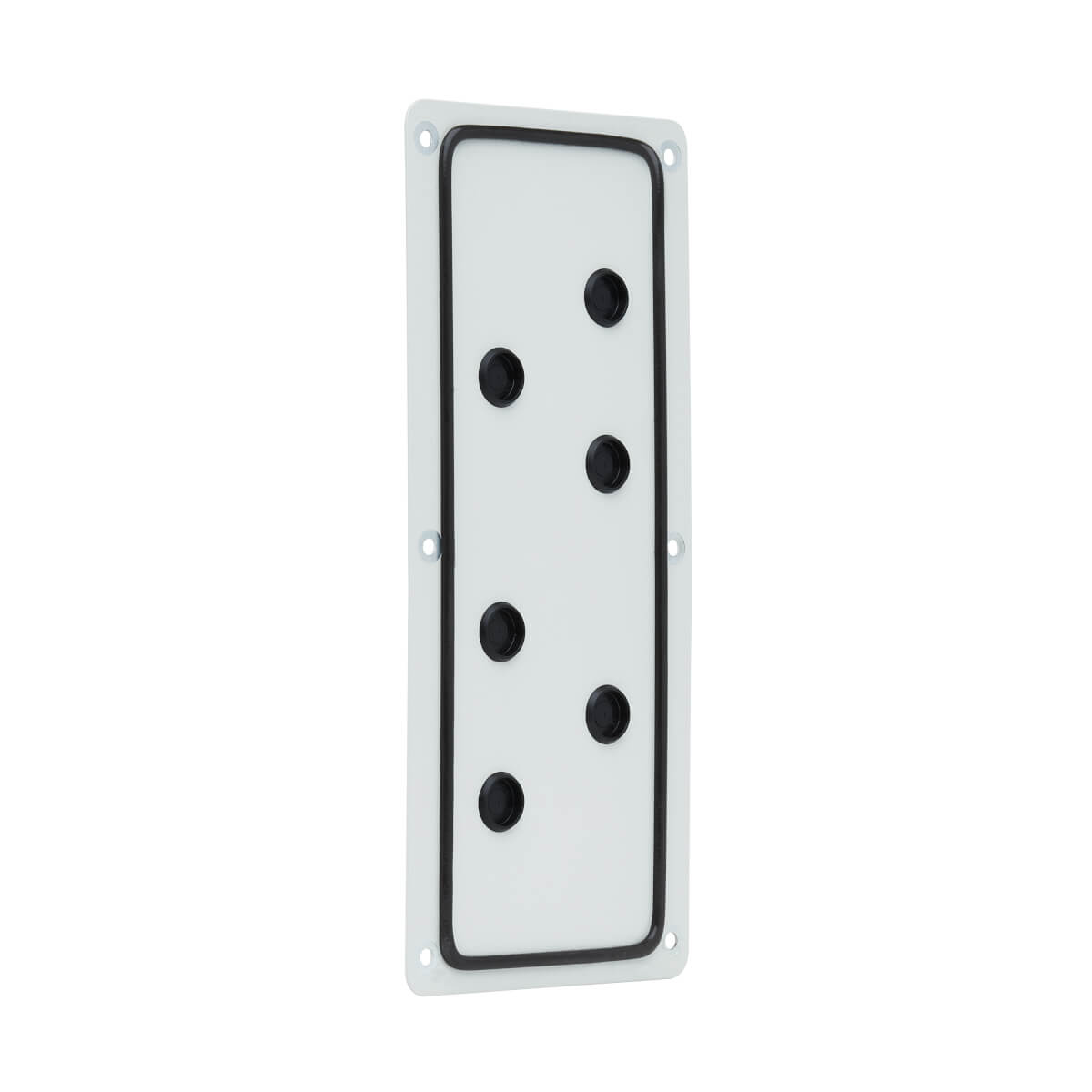

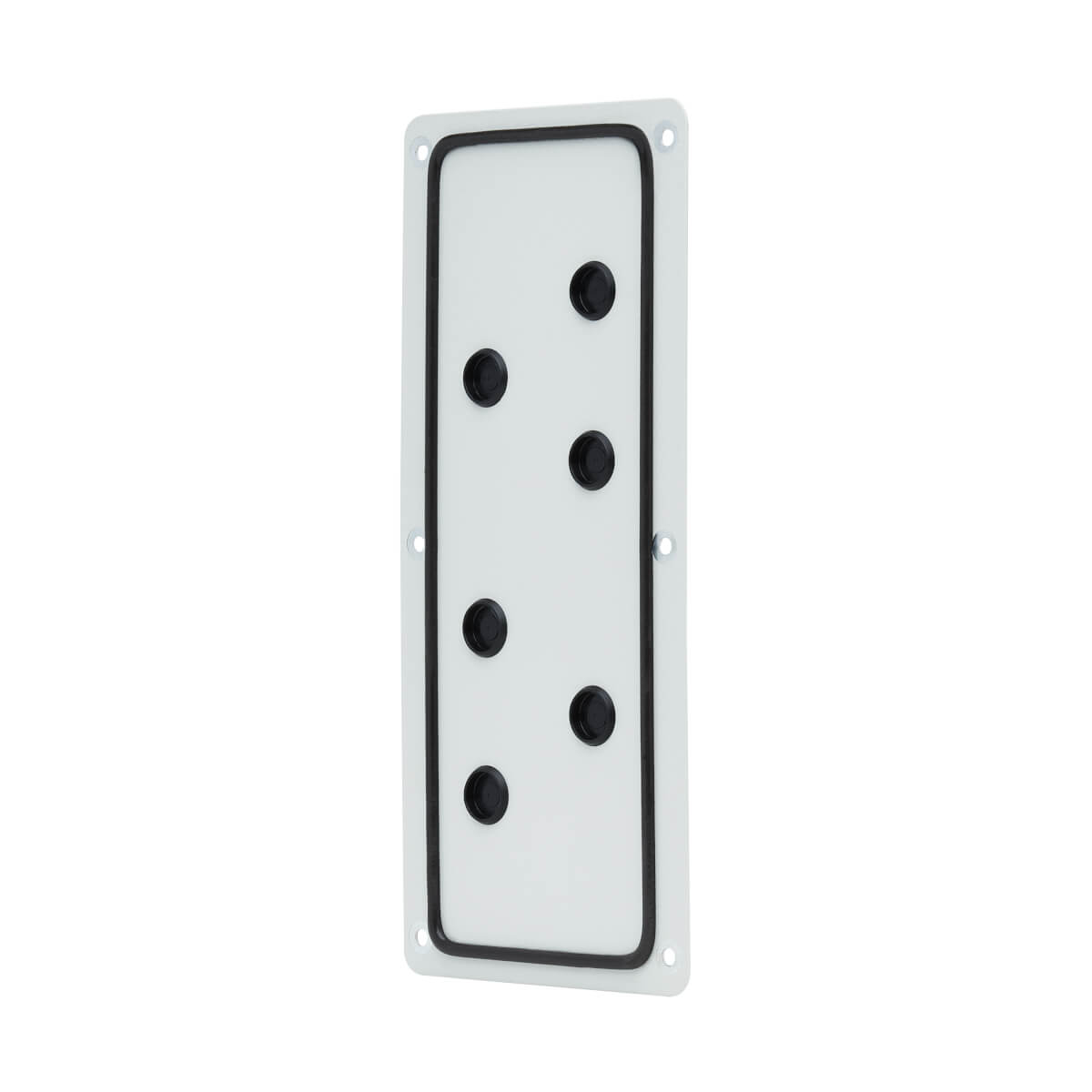

This metal-reinforced gland plate covers cable entry and exit cutouts on SmartRack® NEMA 3R and NEMA 4 industrial enclosures, including the SRN and SRIN series. The SRGP1KO is sized to correspond to the enclosures’ cable cutouts, making it quick and easy to install. Six half-inch (12 mm) ports accept user-supplied cable fittings or conduit. LDPE escutcheons protect unused ports against dust and moisture to protect the enclosure’s NEMA 3R or NEMA 4 rating.

Specifications

Features
Number of cable holes6
Cable diameter supported (max)0.472" (1.2 cm)
Design
Product colourWhite
ShapeRectangle
Technical details
Sustainability complianceYes
Sustainability certificatesREACH, RoHS
Products per master (outer) case30 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332262889
Compliance certificatesREACH, RoHS
Weight & dimensions
Width14" (355.6 mm)
Depth0.252" (6.4 mm)
Height6" (152.4 mm)
Weight25.7 oz (730 g)
