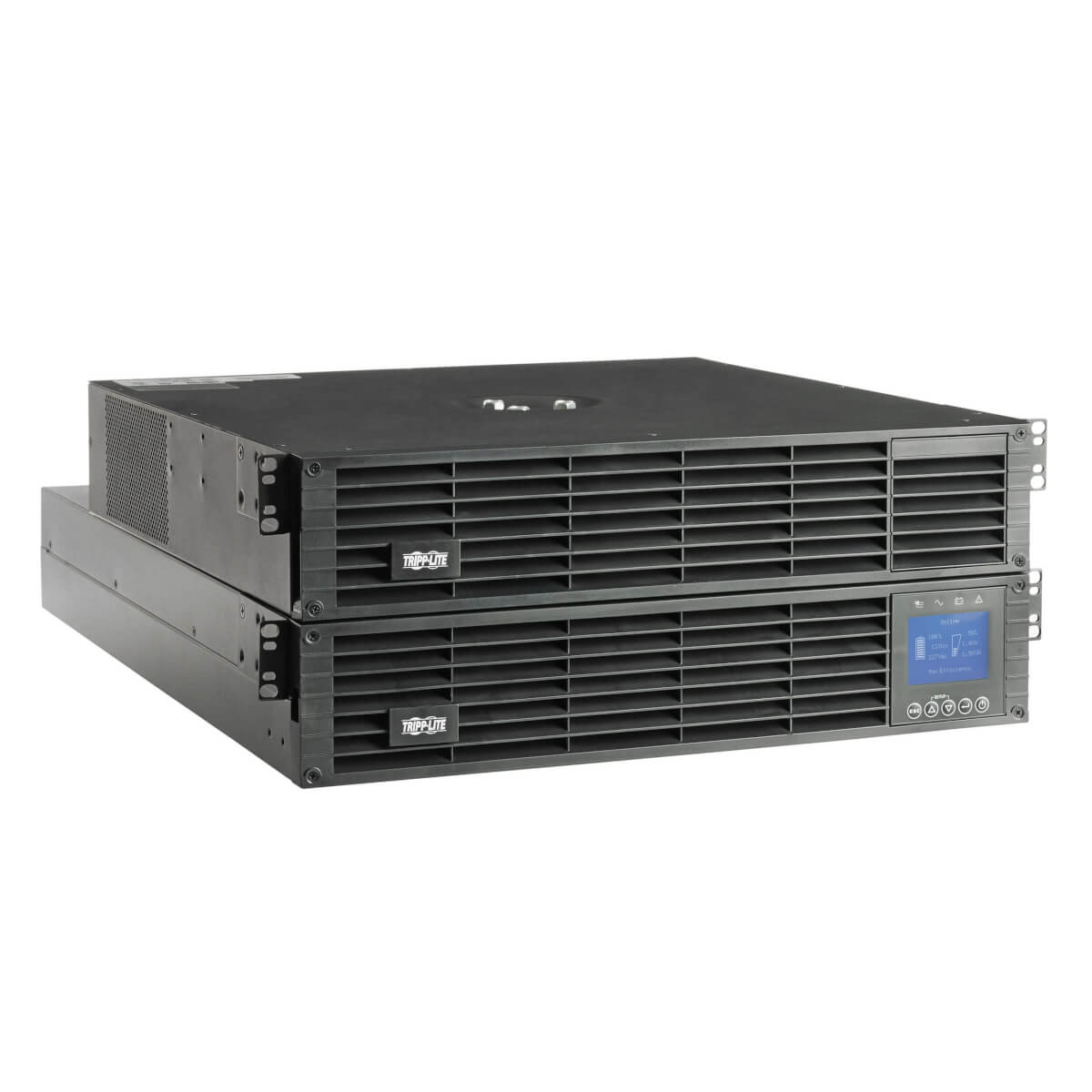

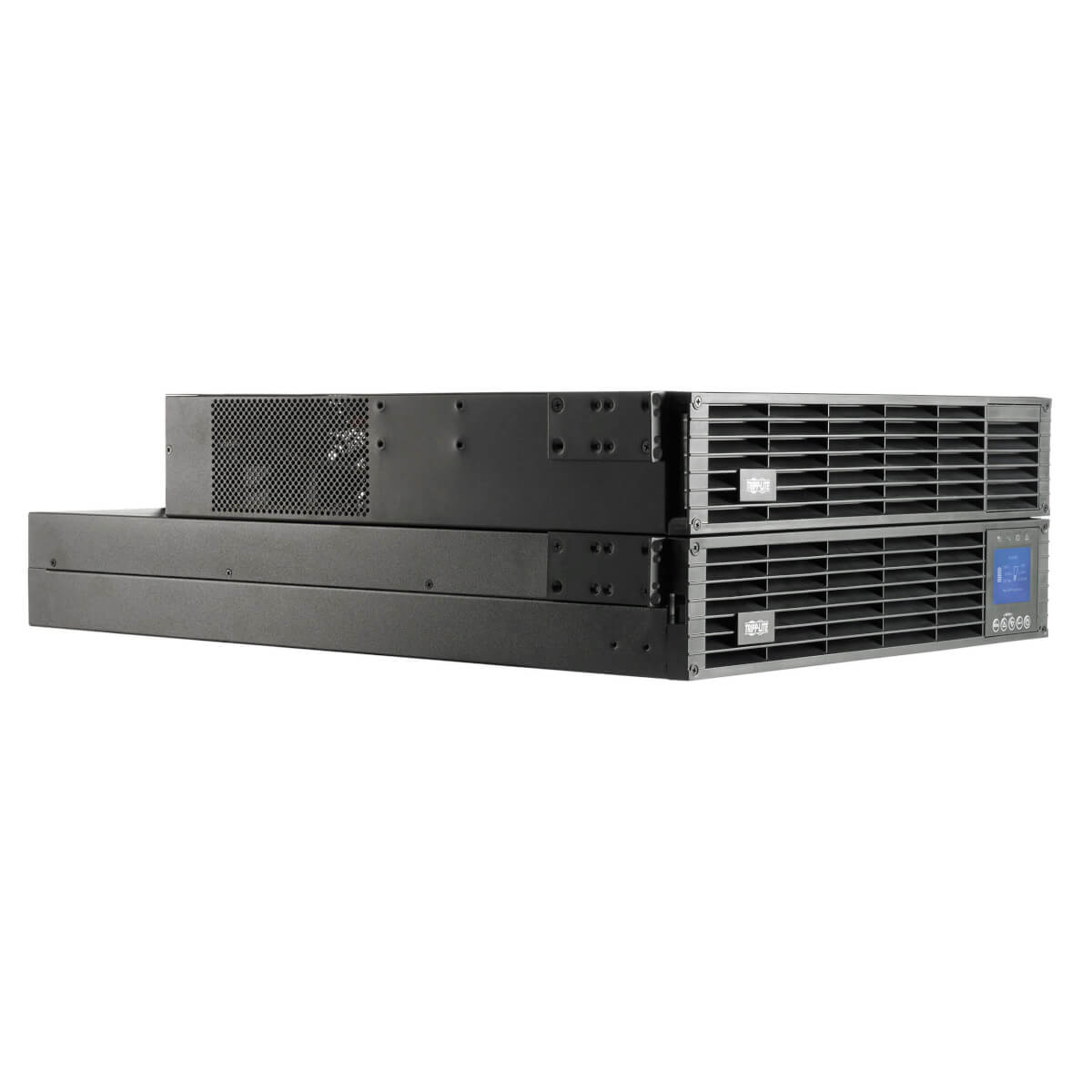

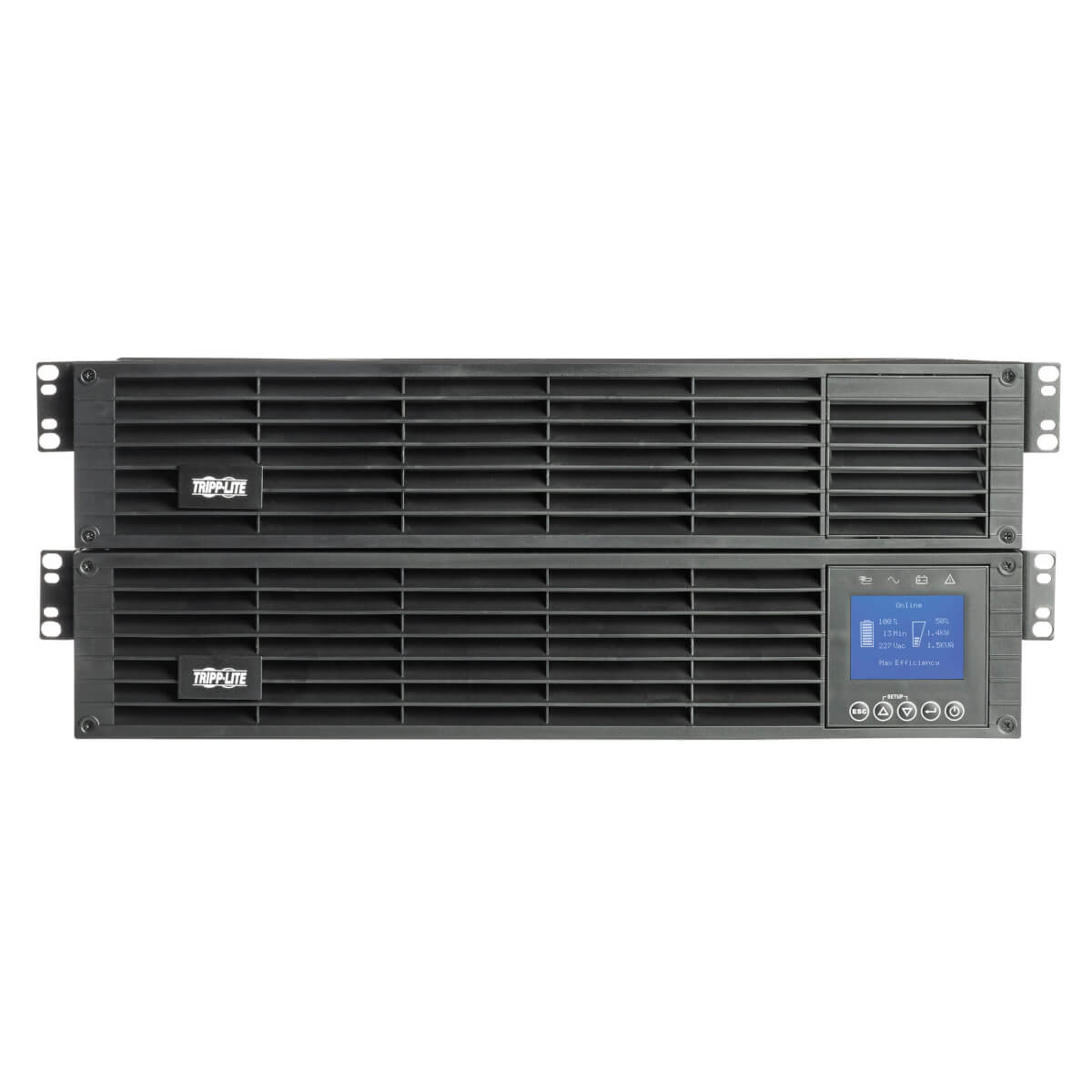

Tripp Lite SU3000LCD2UHVTF uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 20 AC outlet(s)

Tripp Lite SU3000LCD2UHVTF uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 20 AC outlet(s)

Tripp Lite SU3000LCD2UHVTF, Double-conversion (Online), 3 kVA, 2700 W, Pure sine, 100 V, 288 V

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro SMART ONLINE UPS 3000VA 443JJS Register free see stock
Synnex SMART ONLINE UPS 3000VA 208/120V 4URM 6481054

Related Products

Description

Tripp Lite SU3000LCD2UHVTF. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: NEMA 5–15, NEMA 5–20R, NEMA 6-15R, NEMA 6–20R, NEMA L6-20R, Power plug: NEMA L6-20P, AC outlets quantity: 20 AC outlet(s). Typical backup time at full load: 5 min, Typical backup time at half load: 13.5 min. Form factor: Rackmount, Product color: Black, Housing material: Metal. Width: 17.3" (440 mm), Depth: 24.3" (616 mm), Height: 6.97" (177 mm)

Specifications

Power
Output power capacity3 kVA
Output power2700 W
Input operation voltage (min)100 V
Input operation voltage (max)288 V
Output operation voltage (min)120 V
Output operation voltage (max)208 V
Surge energy rating570 J
Maximum current14.97 A
Emergency Power Off (EPO)Yes
Power factor0.9
Output voltage regulation-10 - 10%
Output frequency60 Hz
Crest factor3:1
Efficiency (On-line mode)90%
Efficiency (ECO mode)95%
Input frequency60 Hz
Ports & interfaces
Cable length122" (3.1 m)
AC outlets quantity20 AC outlet(s)

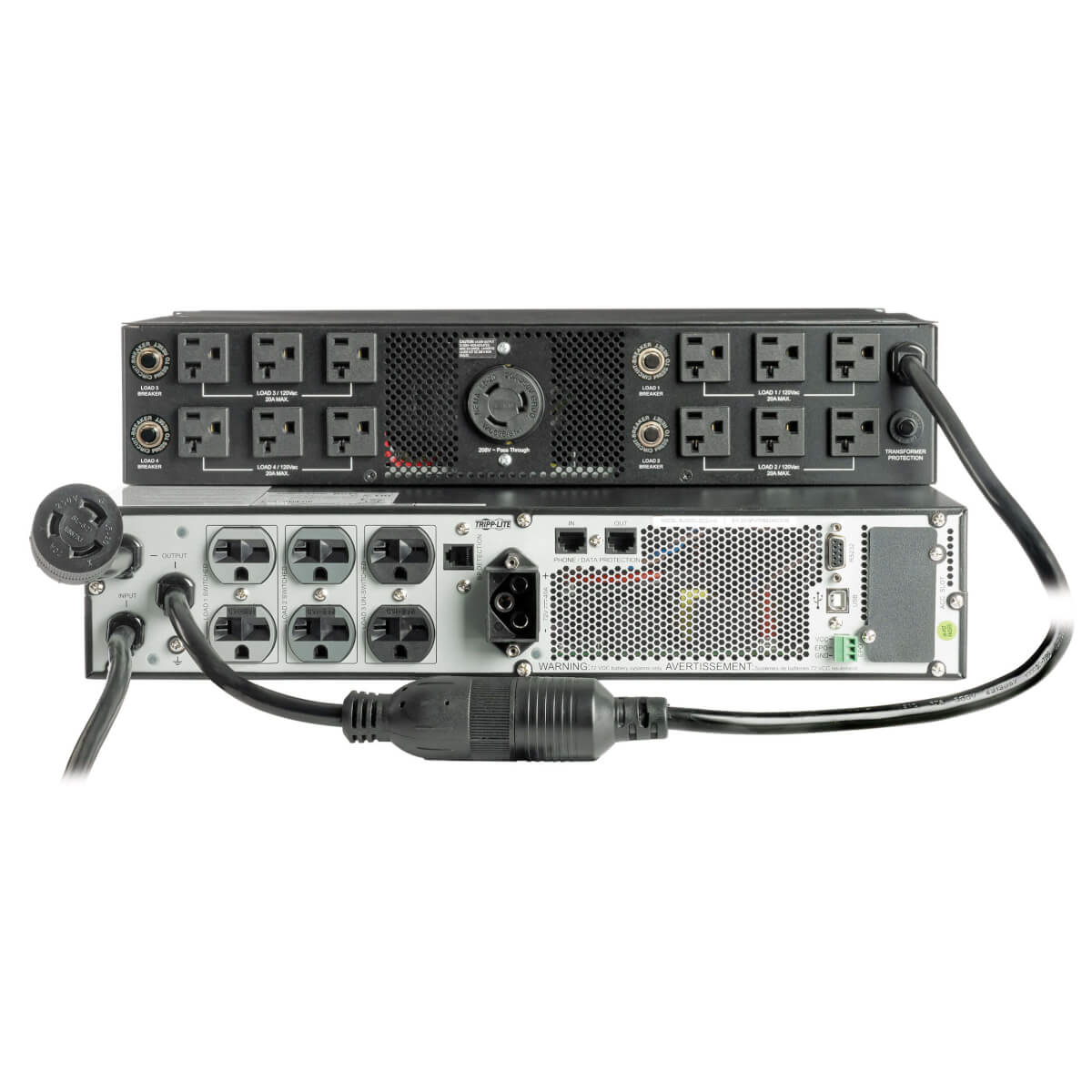

AC outlet typesNEMA 5–15, NEMA 5–20R, NEMA 6-15R, NEMA 6–20R, NEMA L6-20R

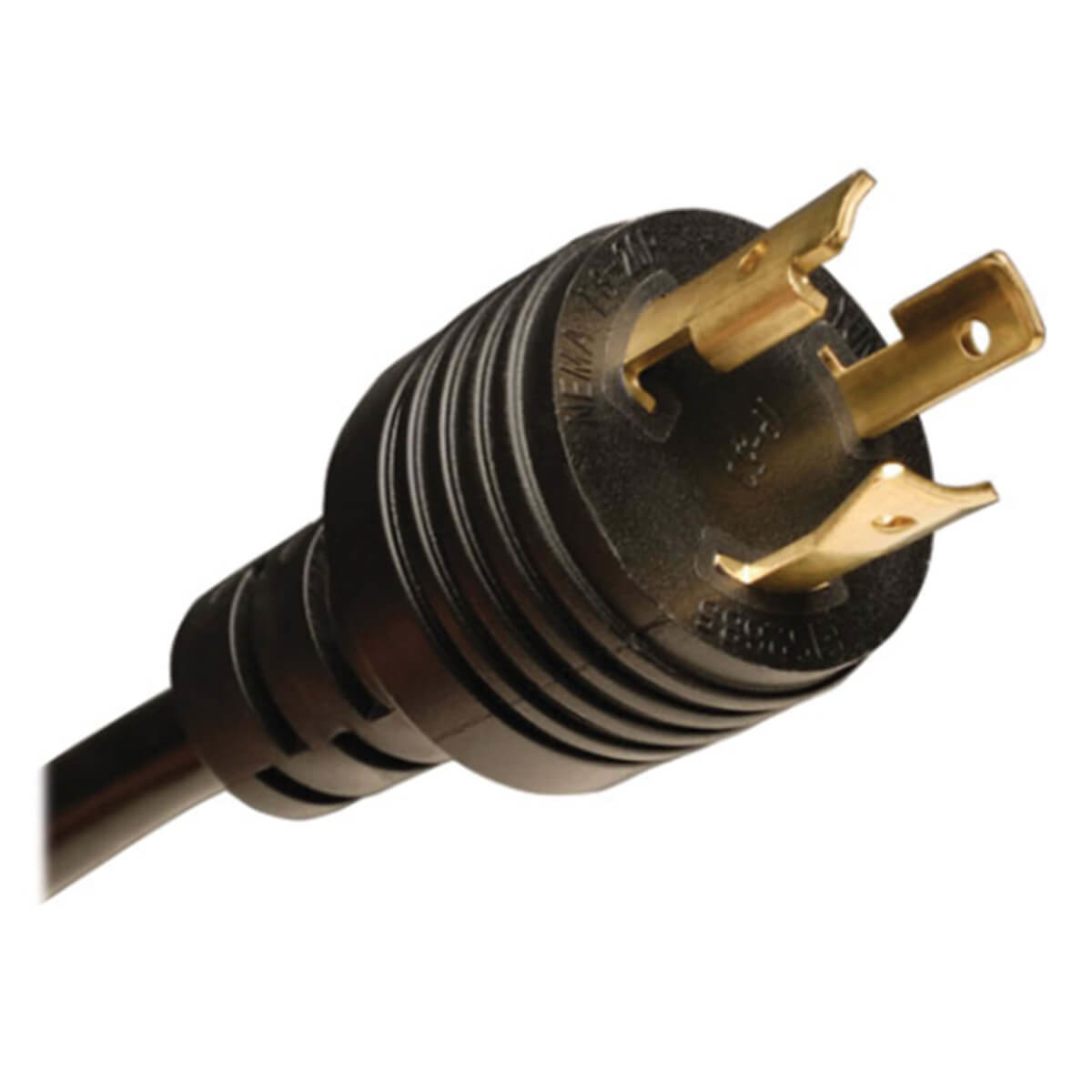

Power plugNEMA L6-20P
Emergency Power Off (EPO) connectorYes
USB portYes
Serial interfaceYes
USB 2.0 ports quantity1
Modem (RJ-11) ports1
Ethernet LAN (RJ-45) ports2
USB port typeUSB Type-B
Performance
UPS topologyDouble-conversion (Online)
Number of input phases1
Audible alarm modesAlarm when on battery, Fault, Low battery alarm, Overload alarm
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresDigital Subscriber Line (DSL), Network
WaveformPure sine
Power protection featuresOverload
Noise level50 dB
LED indicatorsYes
Audible alarm(s)Yes
Features
UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Country of originChina
Number of input phases1
Audible alarm modesAlarm when on battery, Fault, Low battery alarm, Overload alarm
Output power2700 W
Input operation voltage (min)100 V
Input operation voltage (max)288 V
Output operation voltage (min)120 V
Output operation voltage (max)208 V
Surge energy rating570 J
Maximum current14.97 A
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresDigital Subscriber Line (DSL), Network
Emergency Power Off (EPO)Yes
WaveformPure sine
Power protection featuresOverload
Power factor0.9
Output voltage regulation-10 - 10%
Output frequency60 Hz
Crest factor3:1
Noise level50 dB
Audible alarm(s)Yes
Efficiency (On-line mode)90%
Efficiency (ECO mode)95%
Input frequency60 Hz
Battery
Typical backup time at half load13.5 min
Typical backup time at full load5 min
Hot-swap batteryYes
Cold startYes
Design
Form factorRackmount
Country of originChina
Rack capacity4U
Product colourBlack
Cable length122" (3.1 m)
Cooling typeActive
LED indicatorsYes
Built-in fanYes
Housing materialMetal
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Technical details
Output frequency60 Hz
Sustainability certificatesRoHS
Compliance certificatesRoHS
Cooling
Cooling typeActive
Built-in fanYes
Weight & dimensions
Width17.3" (440 mm)
Depth24.3" (616 mm)
Height6.97" (177 mm)
Weight133.8 lbs (60.7 kg)
Package width40" (1016 mm)
Package depth48" (1219.2 mm)
Package height37.7" (958.8 mm)
Package weight192 lbs (87.1 kg)
Packaging data

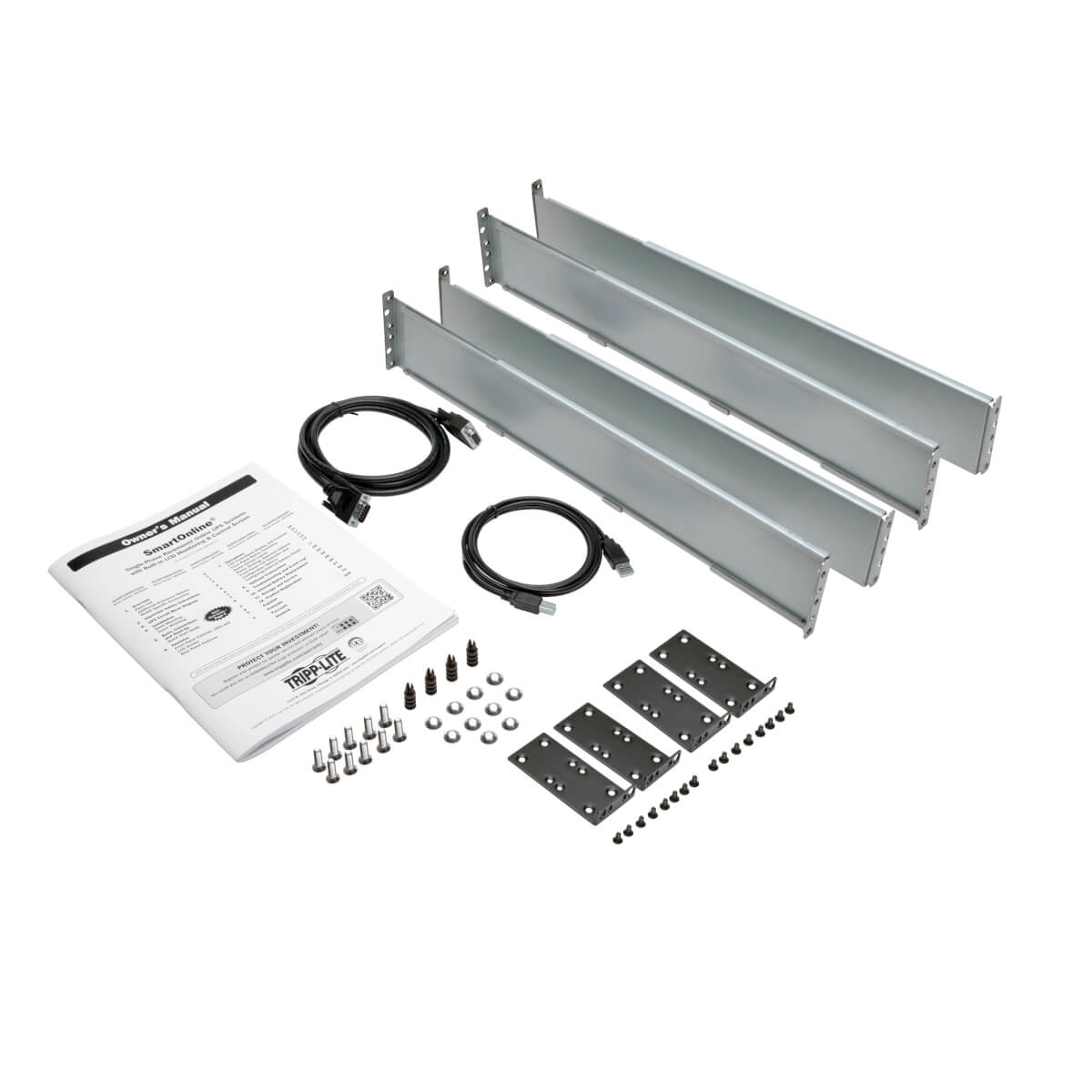

Cables includedSerial, USB cable
Rack mount kitYes
ManualYes
Package width40" (1016 mm)
Package depth48" (1219.2 mm)
Package height37.7" (958.8 mm)
Package weight192 lbs (87.1 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width40" (1016 mm)
Master (outer) case length48" (1219.2 mm)
Master (outer) case height37.7" (958.8 mm)
Master (outer) case gross weight192 lbs (87.1 kg)
Packaging content
Cables includedSerial, USB cable
Rack mount kitYes
ManualYes
