DeepCool ASSASSIN IV Processor Air cooler 120/140 mm Black 1 pc(s)
- Brand: DeepCool
- Category:
- SKU: R-ASN4-WHNNMT-G
- EAN: 0810116591459 6933412728382
Intel/AMD, 500-1700 RPM, 29.3 dB, PWM, FDB, 12 VDC, 144×147×164 mm, 1575 g, White
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Fan R-ASN4-WHNNMT-G ASSASSIN-IV White CPU Cooler Retail |
279994 |
Description

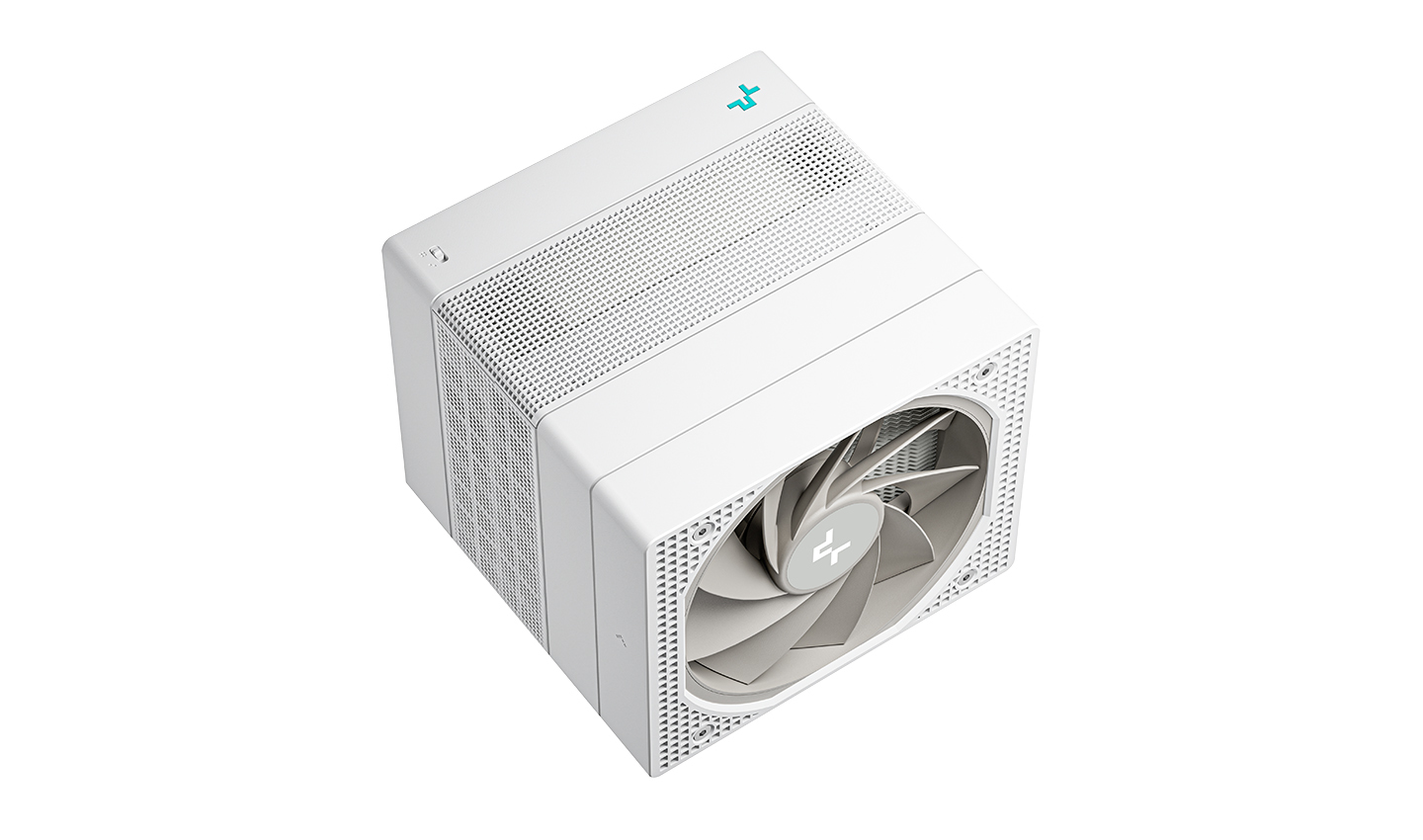

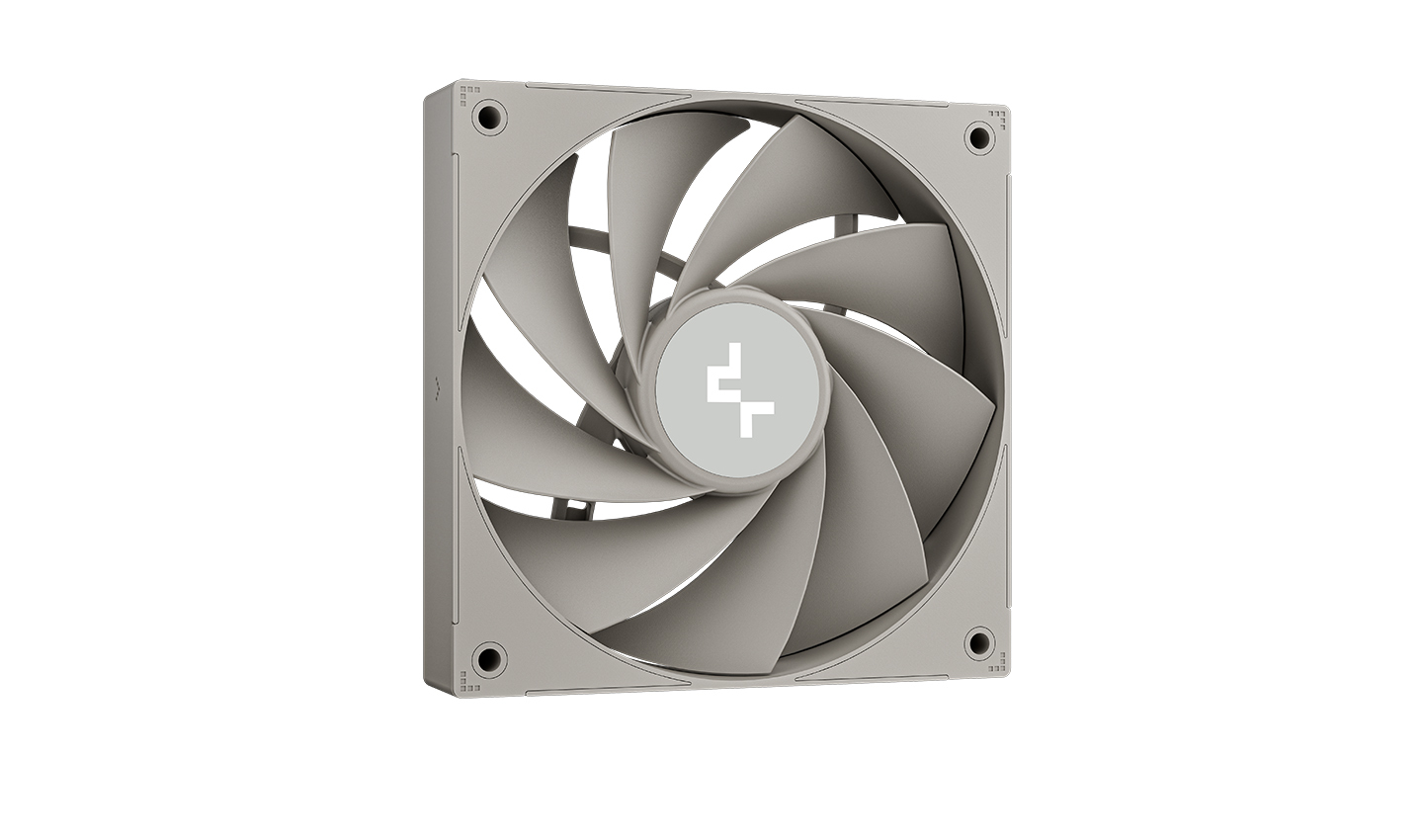

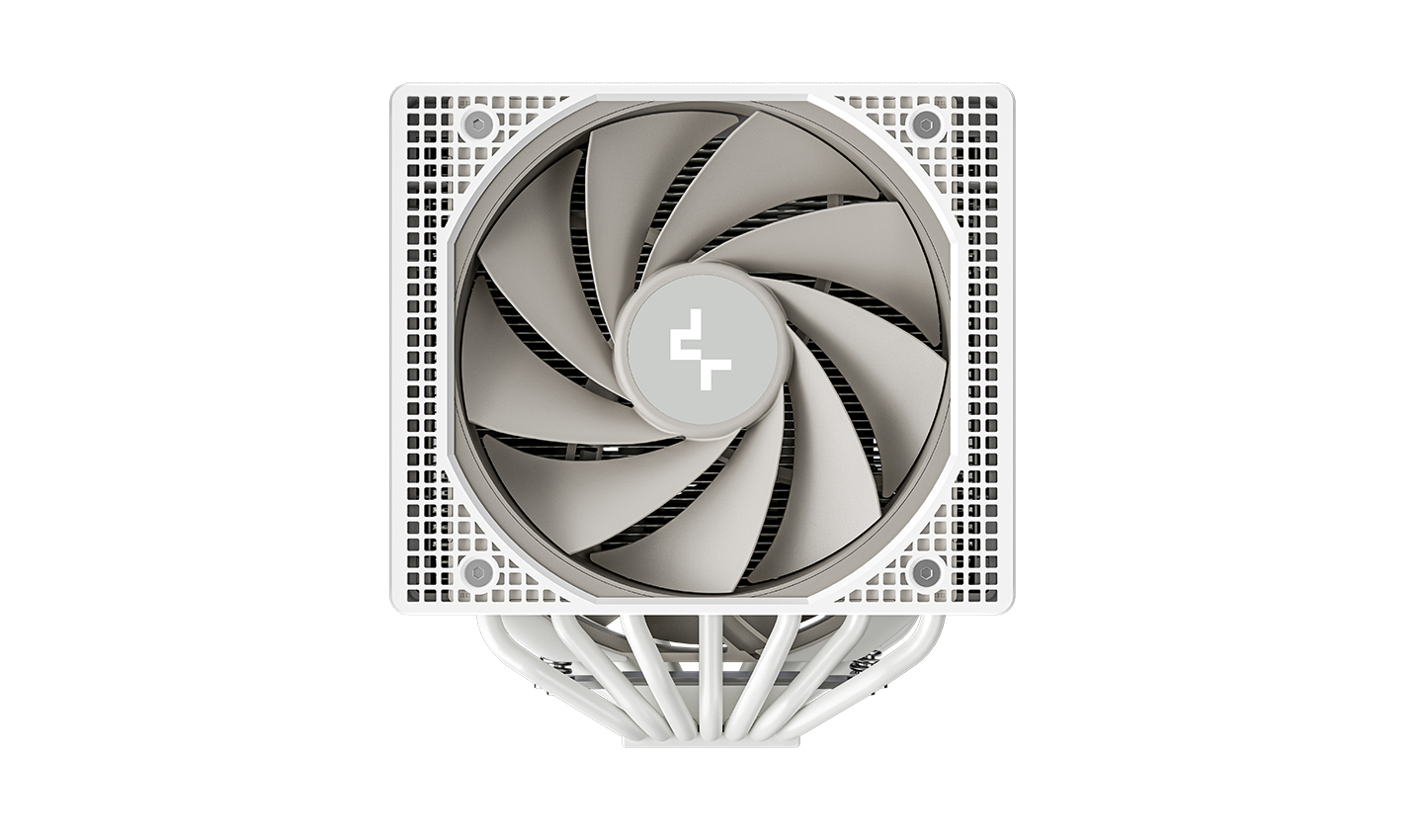

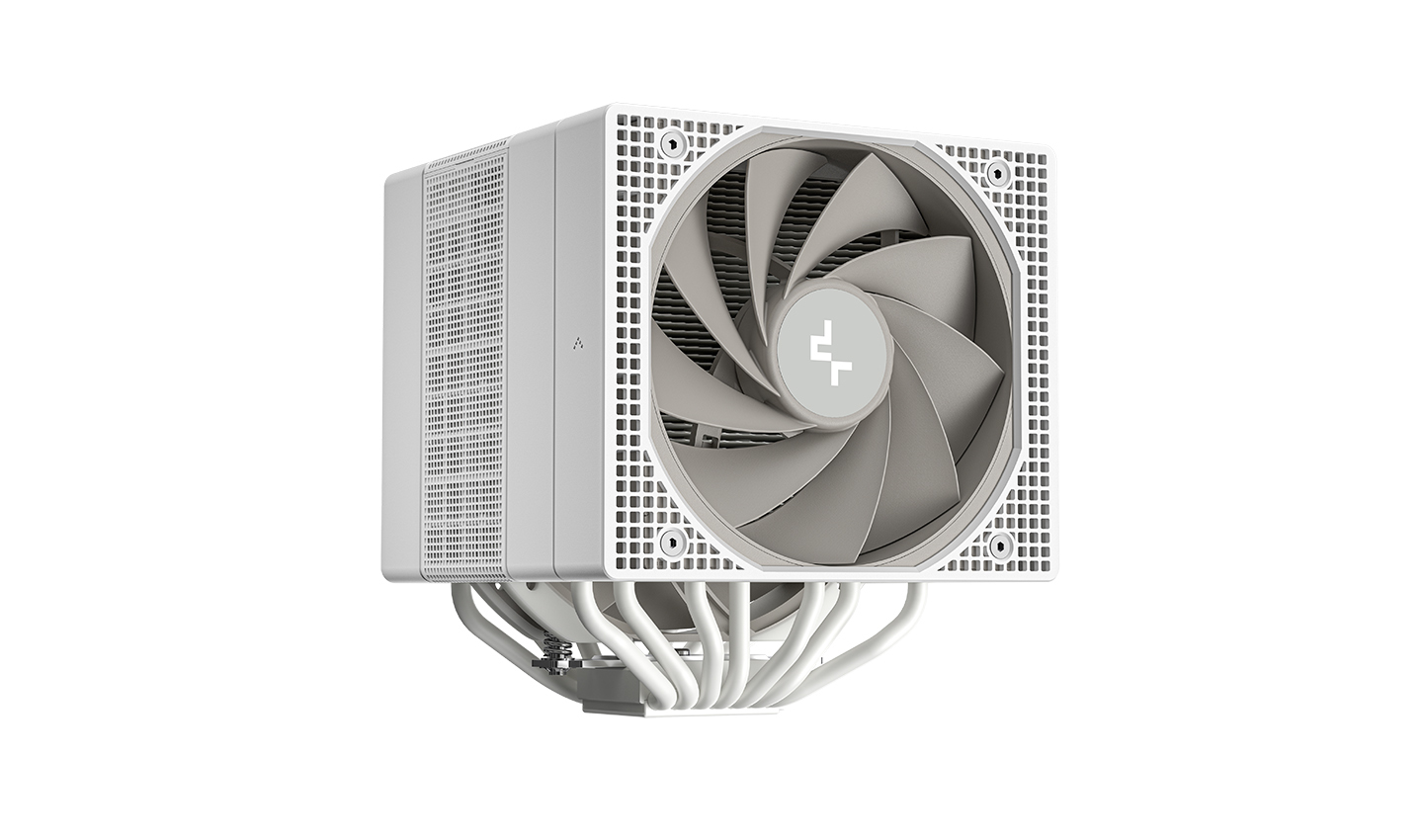

The silent heat killer returns with a new aesthetic and maximum cooling capacity. The ASSASSIN IV provides exceptional performance and is armed with seven heat pipes and newly designed 120 and 140mm FDB fans.
BEAUTY IN SIMPLICITY
The elegant design of the ASSASSIN IV is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
IN SILENT OR EXTREME MODE, THE ASSASSIN IV REIGNS SUPREME
With a simple slide of a switch, the ASSASSIN IV can morph from a whisper-quiet cooler when low noise is of the utmost importance to an unrestricted cooling powerhouse when peak performance is all that matters.
BE COOL, BE CALM
A key factor in the ASSASSIN IV's extremely silent operation is the use of three-phase, six-stage fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN IV comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN
Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
BEAUTY IN SIMPLICITY
The elegant design of the ASSASSIN IV is not just visually pleasing; it also leads to optimal air flow and maximum compatibility.
IN SILENT OR EXTREME MODE, THE ASSASSIN IV REIGNS SUPREME
With a simple slide of a switch, the ASSASSIN IV can morph from a whisper-quiet cooler when low noise is of the utmost importance to an unrestricted cooling powerhouse when peak performance is all that matters.
BE COOL, BE CALM
A key factor in the ASSASSIN IV's extremely silent operation is the use of three-phase, six-stage fan motors with low voltage and power consumption. DeepCool is so confident in our new design that the ASSASSIN IV comes with 6 years of limited warranty coverage!
EXCEPTIONAL BY DESIGN
Featuring seven heat pipes that deliver improved heat transfer through two fin-array heat sink towers for high performance efficiency. The included DM9 thermal paste meets the rigorous standards used in industrial applications.
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan connector | 4-pin |
| Fan diameter | 120/140 mm |
| Pulse-width modulation (PWM) support | Yes |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Maximum airflow | 79.1 cfm |
| Maximum air pressure | 2.44 mmH2O |
| Number of heat pipes | 7 |
| Number of fans | 2 fan(s) |
| Heat pipes diameter | 0.236" (6 mm) |
| Quantity per pack | 1 pc(s) |
| Fan 2 maximum airflow | 58.06 cfm |
| Fan 2 maximum air pressure | 2.1 mmH2O |
| Fan noise level (min) | 22.6 dB |
| Fan noise level (max) | 29.3 dB |
| Pump motor speed (min) | 500 RPM |
| Pump motor speed (max) | 1700 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of heat pipes | 7 |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Fan power consumption | 6 W |
| Fan voltage | 12 V |
| Fan current | 0.3 A |
| Weight & dimensions | |
| Width | 5.79" (147 mm) |
| Depth | 5.67" (144 mm) |
| Height | 6.46" (164 mm) |
| Weight | 3.46 lbs (1.57 kg) |
| Fan dimensions (W x D x H) | 5.51 x 5.51 x 0.984" (140 x 140 x 25 mm) |
| Heat pipes diameter | 0.236" (6 mm) |
| Fan 2 dimensions (W x D x H) | 4.72 x 4.72 x 0.984" (120 x 120 x 25 mm) |
| Radiator width | 4.33" (11 cm) |
| Radiator depth | 5.51" (14 cm) |
| Radiator height | 6.3" (16 cm) |
| Technical details | |
| Fan connector | 4-pin |
| Packaging data | |
| Package type | Box |

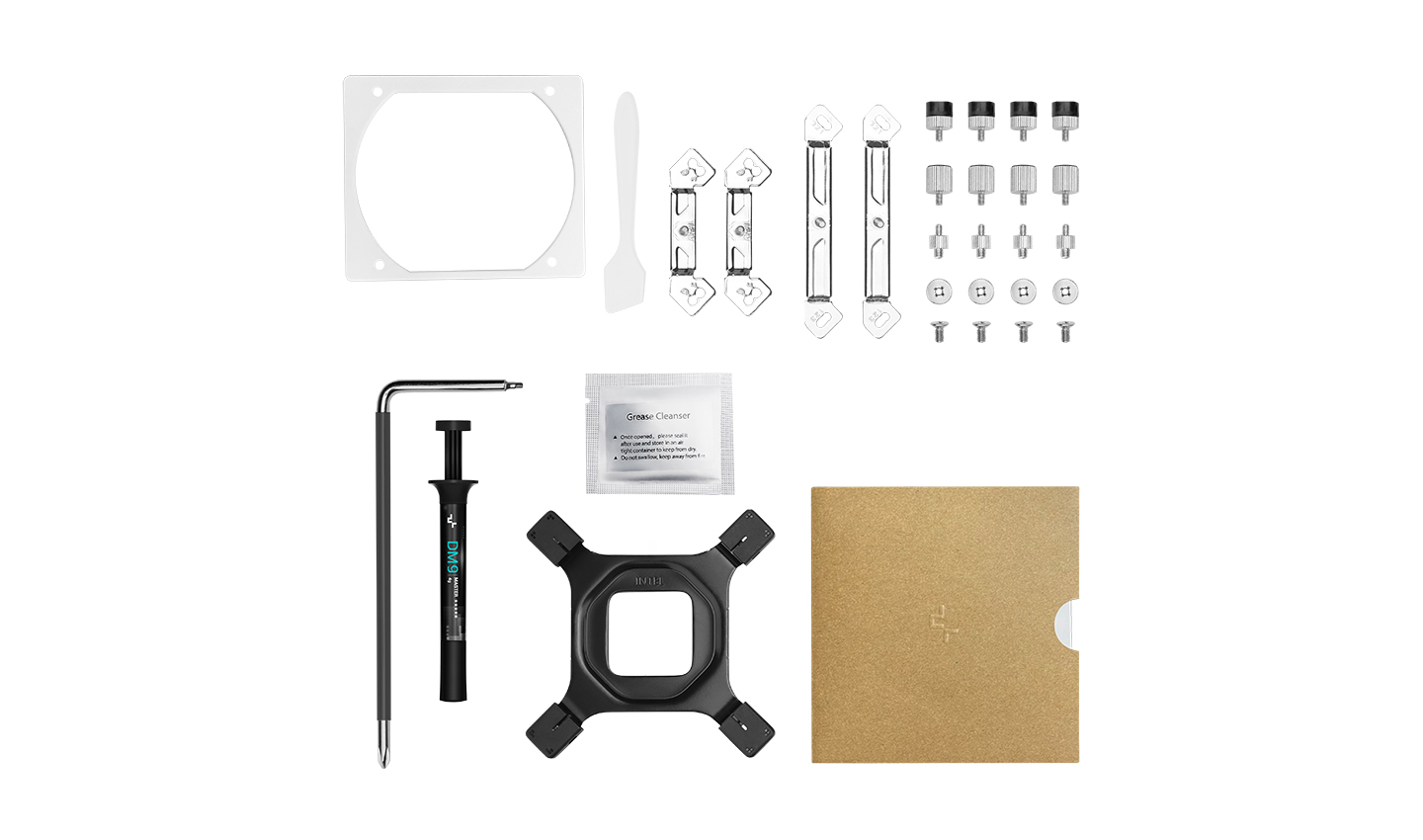

| Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
| Adapter frame included | Yes |
