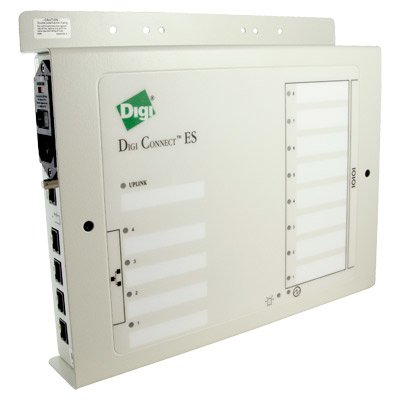

Digi Connect ES 4SB serial server RS-232
- Brand: DIGI
- Category:
- SKU: DC-ES-4SB-EU
- EAN: 0663072944919
4 x RS-232, 1 x RJ-45, 10/100 Base-T, LEDs
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
CONNECT ES 44+1 SB |
5314190 |
Related Products
Description
Medical serial server with galvanic isolation
The Digi Connect ES serial server provides mission-critical serial over Ethernet connectivty. It is the first IEC 60601/EN60601 compliant device of its kind and consists of four or eight galvanic isolated RS-232 serial ports, with a 10/100 Mbps network interface and Ethernet switch. Applications include providing Ethernet connections from serial devices such as ventilators, EKGs, patient monitoring systems, infusion pumps and glucose meters to the central data management system.
- Medical safety certified - IEC 60601 / EN60601 3rd edition compliant
- Integrated Ethernet switch
- 4 or 8 electrically isolated serial ports (RS-232)
- Python and Device Cloud by Etherios support
The Digi Connect ES serial server provides mission-critical serial over Ethernet connectivty. It is the first IEC 60601/EN60601 compliant device of its kind and consists of four or eight galvanic isolated RS-232 serial ports, with a 10/100 Mbps network interface and Ethernet switch. Applications include providing Ethernet connections from serial devices such as ventilators, EKGs, patient monitoring systems, infusion pumps and glucose meters to the central data management system.
- Medical safety certified - IEC 60601 / EN60601 3rd edition compliant
- Integrated Ethernet switch
- 4 or 8 electrically isolated serial ports (RS-232)
- Python and Device Cloud by Etherios support
Specifications
| Technical details | |
|---|---|
| Throughput data rate | 230 Kbit/s |
| Surge protection voltage | 2 kV |
| Serial ports quantity | 4 |
| Serial interface type | RS-232 |
| RS-232 signals | CTS, DCD, DSR, DTR, Rx, Tx |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Management protocols | HTTP/HTTPS, CLI / Telnet |
| Isolation | 4 kV |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Certification | EN55024, ICES-003 EN55011, EN55022, AS/NZS CISPR 22, ICES-003, FCC P15 Subpart B Class A |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Weight & dimensions | |
| Weight | 2.95 lbs (1.34 kg) |
| Dimensions (WxDxH) | 10.6 x 9.25 x 1.65" (269 x 235 x 42 mm) |
| Power | |
| Input voltage | 100 - 240 V |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 85 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Protocols | |
| Supported network protocols | UDP/TCP, DHCP, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Rlogin & Auto Connect, TFTP |
| Security | |
| Security algorithms | SSH, SSL/TLS |
| Indication | |
| LED indicators | Yes |
| Power LED | Yes |
| Link/Act LED | Yes |
| Software | |
| Windows operating systems supported | Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64 |
| Linux operating systems supported | Yes |
| Management features | |
| Management protocols | HTTP/HTTPS, CLI / Telnet |
| Design | |
| Certification | EN55024, ICES-003 EN55011, EN55022, AS/NZS CISPR 22, ICES-003, FCC P15 Subpart B Class A |
| Safety | IEC/EN60950-1, CAN/CSA 22.2 60950-1-3, UL 60950-1, IEC 60601-1, UL 60601-1, EN60601-1 3rd edition, EN60601-1-2 |
