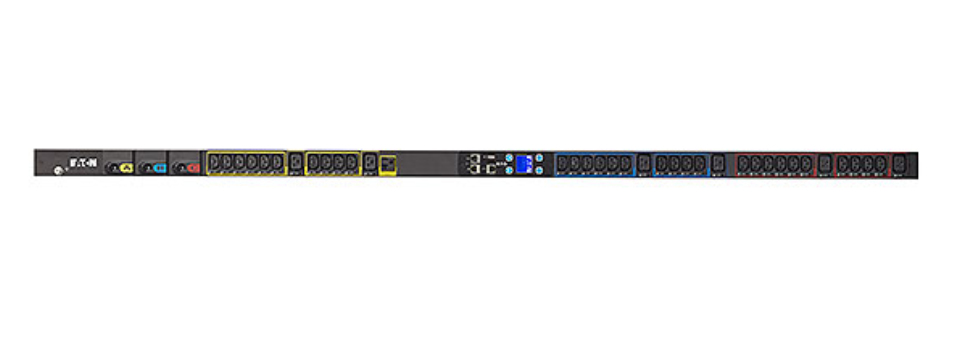

Eaton EMI318-10 power distribution unit (PDU) 39 AC outlet(s) 38U-A Black
- Brand: Eaton
- Category:
- SKU: EMI318-10
- EAN: 0743172050403 7431720504036
5.76kW, 1 x NEMA L21-20P In, 3 x NEMA 5-20R & 30 x IEC 60320 C13 Grip & 6 x IEC 60320 C19 Grip Out, 10/100 Ethernet, RS232, 38U-A
Offer details
Description
Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Specifications
| Design | |
|---|---|
| PDU types | Monitored |
| Mounting | Vertical |
| Display | LCD |
| Product colour | Black |
| Rack capacity | 38U-A |
| Ports & interfaces | |
| Power plug | NEMA L21-20P |
| AC outlets quantity | 39 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler, NEMA 5–20R |
| Output connections | 3 x NEMA 5-20R & 30 x IEC 60320 C13 Grip & 6 x IEC 60320 C19 Grip |
| Features | |
| LED indicators | Yes |
| Cable length | 118.1" (3 m) |
| Ergonomics | |
| Display | LCD |
| LED indicators | Yes |
| Cable length | 118.1" (3 m) |
| Power | |
| Nominal input voltage | 120-208 V |
| Maximum current | 16 A |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 2.05 x 2.1 x 66.5" (52.1 x 53.3 x 1689.1 mm) |
| Width | 2.05" (52.1 mm) |
| Depth | 2.1" (53.3 mm) |
| Height | 66.5" (1689.1 mm) |
| Package width | 7.7" (195.6 mm) |
| Package depth | 9.3" (236.2 mm) |
| Package height | 77.6" (1971 mm) |
| Package dimensions (WxDxH) | 7.7 x 9.3 x 77.6" (195.6 x 236.2 x 1971 mm) |
| Packaging data | |
| Package width | 7.7" (195.6 mm) |
| Package depth | 9.3" (236.2 mm) |
| Package height | 77.6" (1971 mm) |
| Package dimensions (WxDxH) | 7.7 x 9.3 x 77.6" (195.6 x 236.2 x 1971 mm) |
