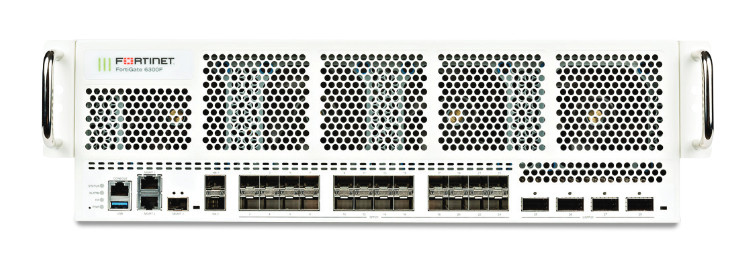

Fortinet FortiGate 6300F hardware firewall 3U 239 Gbit/s
- Brand: Fortinet
- Category:
- SKU: FG-6300F-BDL-950-60
- EAN: 0842382141809
4x 40/100 GE QSFP28 slots, 24x 1/10/25 GE SFP28 slots, 2x 1 GE RJ45 management ports, 2x 10 GE SFP+ HA ports, 1x 1/10 GE SFP+ management port, and 3x AC power supplies, Hardware plus 24x7 FortiCare & FortiGuard UTM 5Y
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
5YR HW 24X7 FC UTP BDL SVC |
917A2T | |||
|
FORTIGATE-6300F HARDWARE PLUS 5 Y FG-6300F-BDL-950-60 |
6882772 |
Description
The FortiGate 6000F series delivers high performance threat protection for large enterprises and service providers, with the flexibility to be deployed at the Internet or cloud edge, in the data center core or internal segments. The multiple high-speed interfaces, high port density, industry-leading security efficacy and high throughput of the 6000F series keeps your network connected and secure.
Specifications
| Data transmission | |
|---|---|
| Firewall throughput | 239000 Mbit/s |
| VPN throughput | 130000 Mbit/s |
| IPS/IDS throughput | 110000 Mbit/s |
| Maximum firewall connections per second | 2000000 |
| Maximum firewall connections | 120000000 |
| Security policies (max) | 200000 |
| Maximum number of virtual firewalls | 500 |
| Firewall latency | 5 µs |
| Default number of virtual firewalls | 10 |
| Firewall throughput | 239 Gbit/s |
| VPN throughput | 130 Gbit/s |
| Network | |
| Wi-Fi | No |
| Security | |
| Security algorithms | 128-bit AES, 256-bit AES, IPSec, SSL/TLS |
| Management features | |
| LED indicators | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| SFP+ module slots quantity | 3 |
| SFP module slots quantity | 24 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Console port | RJ-45 |
| Design | |
| Rack mounting | Yes |
| Form factor | 3U |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 30 A |
| Power consumption (typical) | 977 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -35 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 88582.7" (0 - 2250 m) |
| Weight & dimensions | |
| Dimensions (WxDxH) | 17.2 x 26.2 x 5.2" (437 x 665 x 132 mm) |
| Weight | 67.7 lbs (30.7 kg) |
| Other features | |
| Firewall throughput | 239000 Mbit/s |
| VPN throughput | 130000 Mbit/s |
