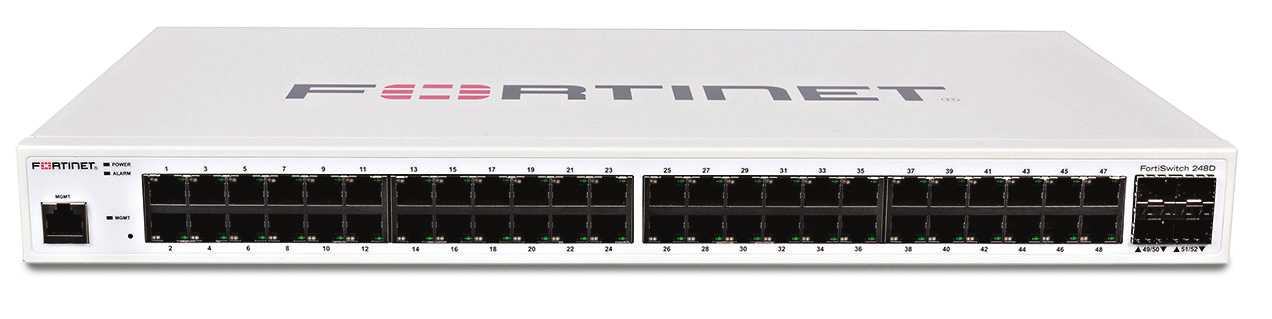

Fortinet FortiSwitch 248D Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U White
- Brand: Fortinet
- Category:
- SKU: FS-248D
- EAN:
Layer 2/3 FortiGate switch controller compatible switch with 48 GE RJ45 + 4 SFP ports
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
L2 SWITCH FS-248D |
11028150 |
Description
FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate ® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from
the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.
the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.
Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Virtual LAN features | |
| Number of VLANs | 4096 |
| VLAN support | Yes |
| Data transmission | |
| Number of VLANs | 4096 |
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Latency (1 Gbps) | 1 µs |
| Packet buffer memory | 1.5 MB |
| Forwarding rate | 155 Mpps |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Management features | |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4096 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| VLAN support | Yes |
| Link aggregation | Yes |
| 10G support | No |
| Design | |
| Rack mounting | Yes |
| Product colour | White |
| Form factor | 1U |
| LED indicators | Yes |
| Certification | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 38.66 W |
| Power consumption (max) | 39.19 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 134 BTU/h |
| Weight & dimensions | |
| Width | 17.3" (440 mm) |
| Depth | 9.69" (246 mm) |
| Height | 1.73" (44 mm) |
| Weight | 7.8 lbs (3.54 kg) |
