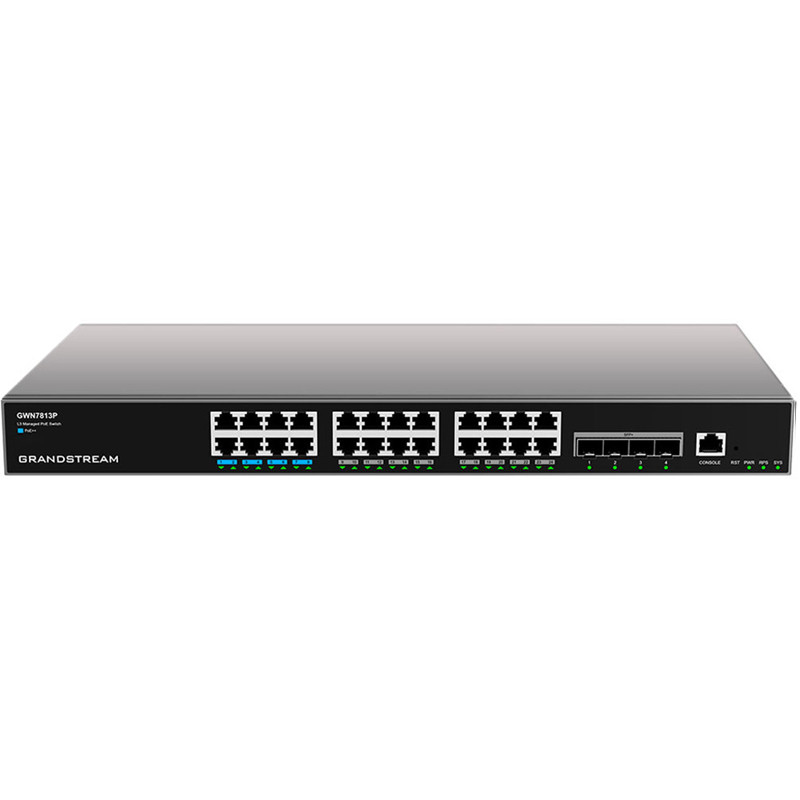

Grandstream Networks GWN7813P network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Gray

Enterprise Layer 3 Managed Network Switches, 24 Gigabit Ethernet Ports

Trade Prices

Distributor Product SKU Stock Updated Price
Synnex

ENTERPRISE LAYER 3 MANAGED POE NETWORK SWITCH 24 X GIGE 4 X SFP+

7376134 Register free see stock

Description

The GWN7810 series are Layer 3 managed network switches that allow enterprises to build scalable, secure, and high-performance business networks that are fully manageable.

GWN.Cloud
GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

GWN Manager
GWN Manager is a on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

Embedded Controller
Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.

Specifications

Management features
Switch layerL3
Switch typeManaged
Traffic shapingYes
ARP inspectionYes
Quality of Service (QoS) supportYes
Cloud-managedYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
SFP+ module slots quantity4
Network
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of VLANs4000
VLAN supportYes
Spanning tree protocolYes
Rate limitingYes
Port mirroringYes
Link aggregationYes
10G supportYes
Virtual LAN featuresTagged VLAN
IGMP snoopingYes
GARP VLAN Registration Protocol (GVRP)Yes
Access Control List (ACL) IPv6 entries2000
Access Control List (ACL) IPv4 entries2000
Data transmission
MAC address table16000 entries
Switching capacity128 Gbit/s
Store-and-forwardYes
Packet buffer memory12 MB
Static routeYes
Forwarding rate95.232 Mpps
Throughput64 Gbit/s
Number of VLANs4000
Security
Loop protectionYes
BPDU filtering/protectionYes
Security algorithms802.1x RADIUS, SNMP
MAC address filteringYes
IGMP snoopingYes
Access Control List (ACL)Yes
Queue scheduling algorithmsSP, WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR)
Password protectionYes
Authentication typeAAA, RADIUS, TACACS+
Access Control List (ACL) IPv6 entries2000
Access Control List (ACL) IPv4 entries2000
DHCP featuresDHCP Option 82, DHCP relay, DHCP server, DHCP snooping
Protocols
GARP VLAN Registration Protocol (GVRP)Yes
Design
Rack mountingYes
Product colourGray
LED indicatorsYes
Number of fans3 fan(s)
Power
Power consumption (typical)300 W
Redundant power supply (RPS) supportYes
Input voltage54 V
Power sourceDC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port60 W
Power over Ethernet (PoE) ports quantity24
Total Power over Ethernet (PoE) budget360 W
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Virtual LAN features
Number of VLANs4000
VLAN supportYes
Virtual LAN featuresTagged VLAN
Weight & dimensions
Width11.8" (300 mm)
Depth17.3" (440 mm)
Height1.73" (44 mm)
Weight10.3 lbs (4.69 kg)
Packaging content
Rack mount kitYes
Quick start guideYes
Cables includedAC
IPv4 & IPv6 features
Access Control List (ACL) IPv6 entries2000
Access Control List (ACL) IPv4 entries2000
Performance
Packet buffer memory12 MB
Mobile network
GARP VLAN Registration Protocol (GVRP)Yes
Packaging data
Rack mount kitYes
Quick start guideYes
Cables includedAC
Other features
Input voltage54 V
