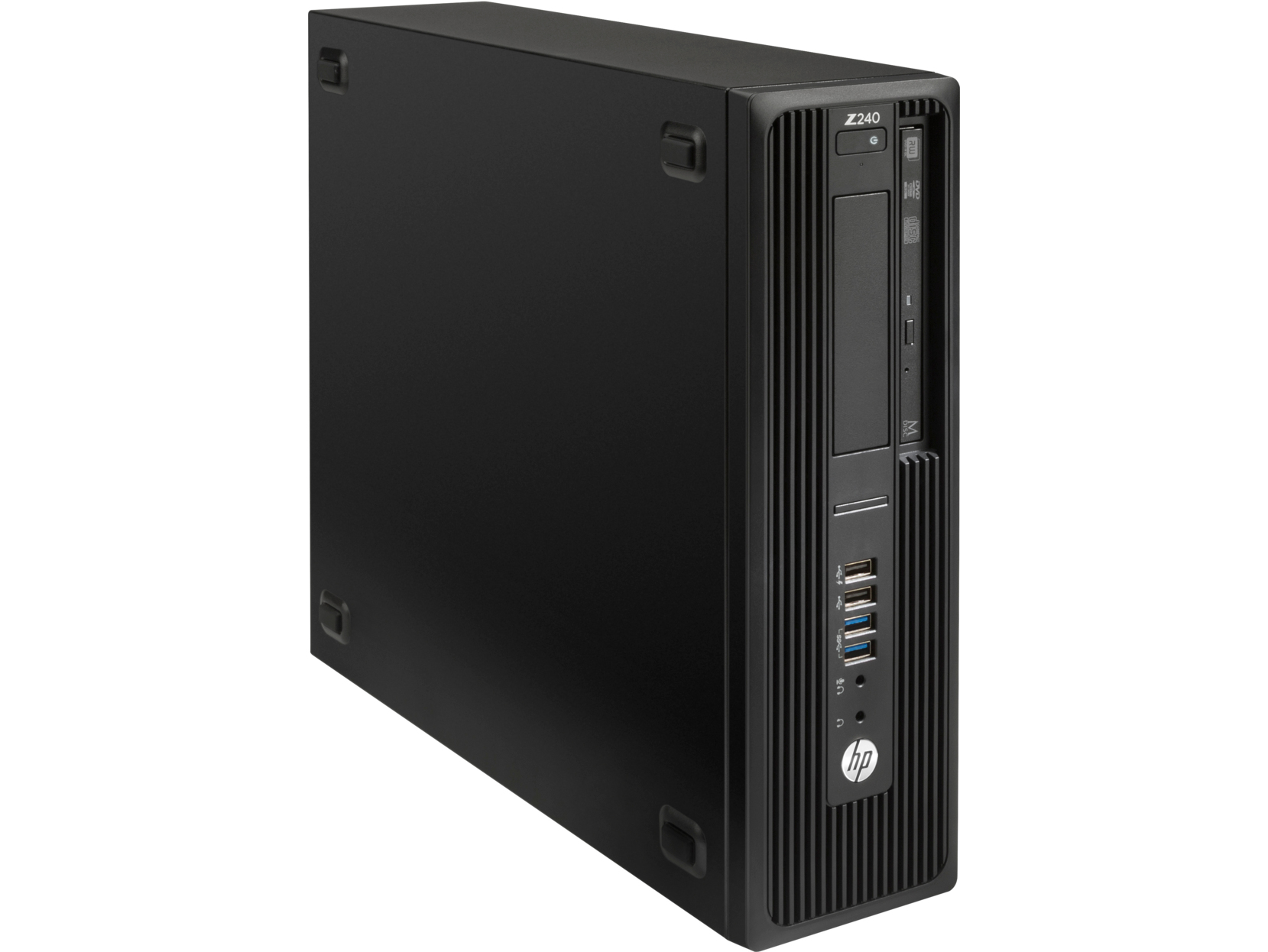

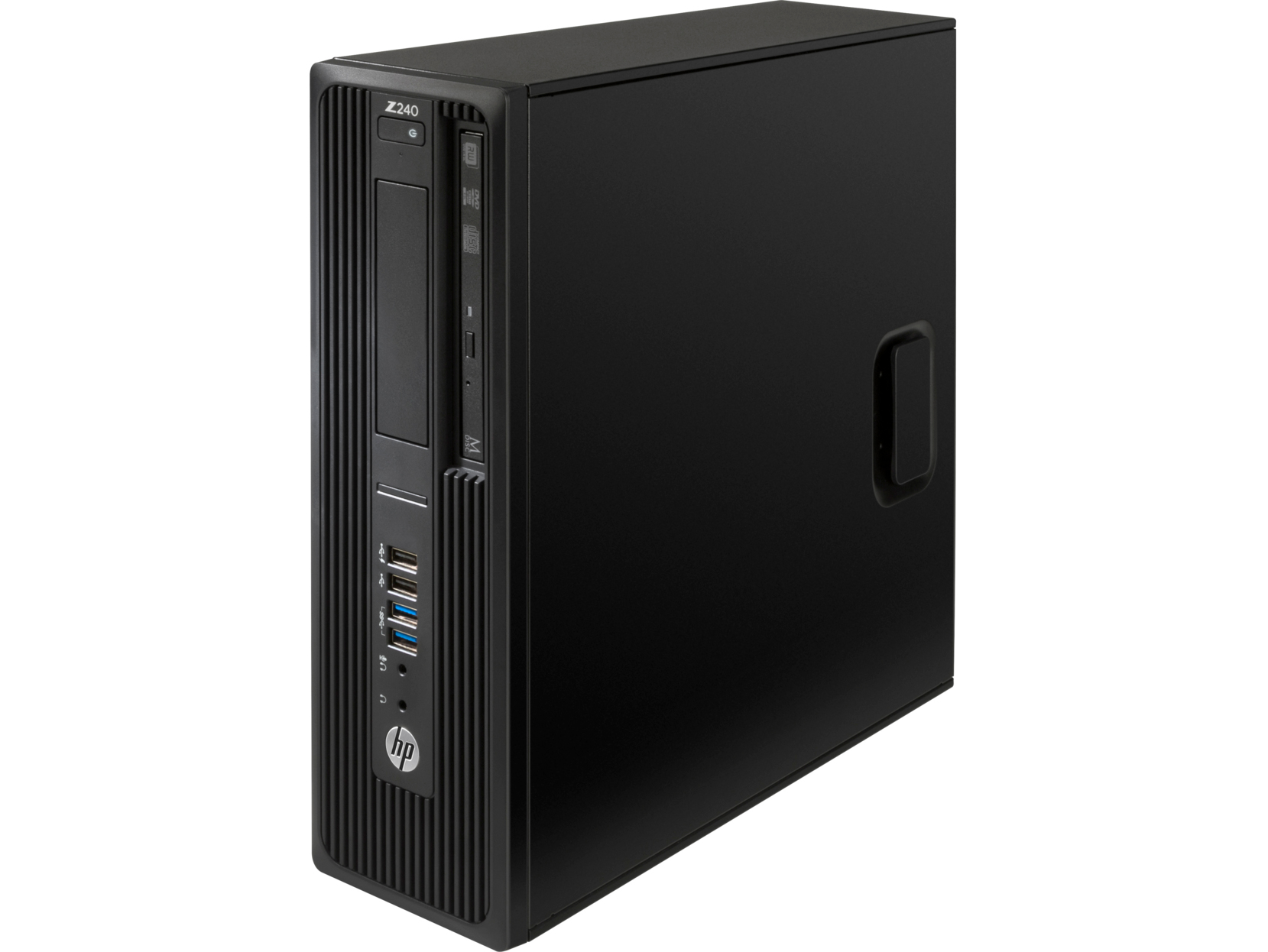

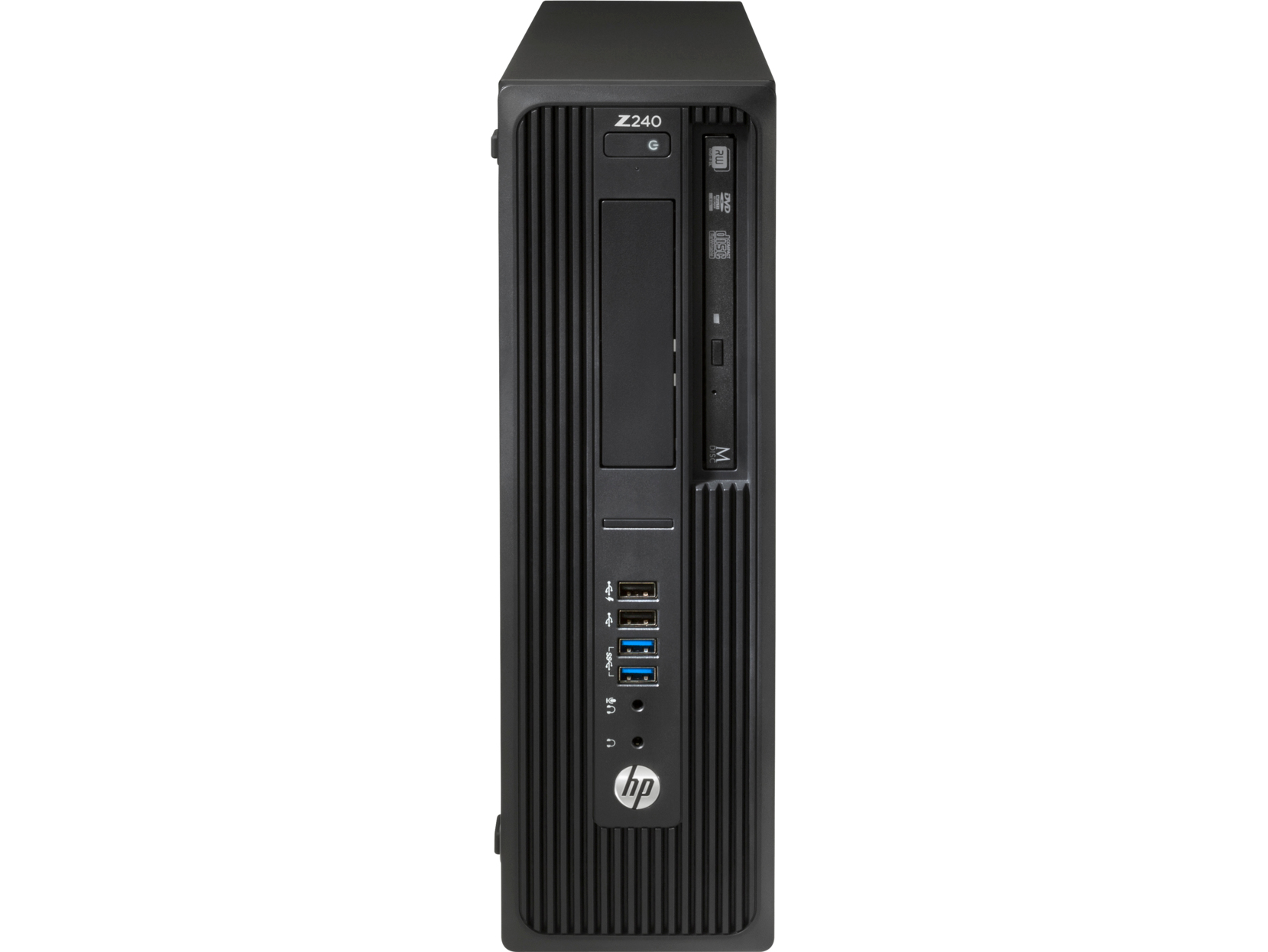

HP Z240 Intel® Core™ i5 i5-6500 16 GB DDR4-SDRAM 500 GB HDD SFF Workstation Black
- Brand: HP
- Category:
- SKU: X2B31UP#ABA
- EAN: 0190780103128
Intel Core i5-6500 (6MB Cache, 3.2GHz), 16GB DDR4-SDRAM, 500GB HDD, Intel HD Graphics 530, LAN
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
NC NR CTO Z240 SFF ZH3.2 16G/500G W10P |
6189664 |
Related Products
- Video Cable Adapters
- Drive Bay Panels
- Internal Solid State Drives
- Interface Cards/Adapters
- Internal Hard Drives
- Optical Disc Drives
- POS Monitors
- Mice
- Computer Monitors
- Graphics Cards
- DisplayPort Cables
- Cable Locks
- Software Licenses/Upgrades
-
Category: Video Cable Adapters -
Category: Video Cable Adapters
-
Category: Drive Bay Panels
-
Category: Internal Solid State Drives -
Category: Internal Solid State Drives -
Category: Internal Solid State Drives -
Category: Internal Solid State Drives -
Category: Internal Solid State Drives -
Category: Internal Solid State Drives
-
Category: Internal Solid State Drives -
Category: Internal Solid State Drives -
Category: Internal Solid State Drives
-
Category: Interface Cards/Adapters -
Category: Interface Cards/Adapters -
Category: Interface Cards/Adapters
-
Category: Internal Hard Drives -
Category: Internal Hard Drives
-
Category: POS Monitors -
Category: POS Monitors -
Category: POS Monitors
-
Category: Mice
-
Category: Computer Monitors
-
Category: Cable Locks
Description
Power, price, and size
HP’s entry level workstations just got better. The HP Z240 SFF packs the performance, features, and reliability of a workstation into the price point of a desktop PC.
HP’s entry level workstations just got better. The HP Z240 SFF packs the performance, features, and reliability of a workstation into the price point of a desktop PC.
Specifications
| Processor | |
|---|---|
| Processor generation | 6th gen Intel® Core™ i5 |
| Processor frequency | 3.2 GHz |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor model | i5-6500 |
| Processor cores | 4 |
| Stepping | R0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 2133,1333,1600,1866 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 71 °C |
| Processor series | Intel Core i5-6500 Desktop series |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Maximum number of PCI Express lanes | 16 |
| Memory voltage supported by processor | 1.35 V |
| Processor cache type | Smart Cache |
| Conflict-Free processor | Yes |
| Processor boost frequency | 3.6 GHz |
| Processor socket | LGA 1151 (Socket H4) |
| Processor cache | 6 MB |
| PCI Express slots version | 3.0 |
| System bus rate | 8 GT/s |
| Processor threads | 4 |
| Number of processors installed | 1 |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 64 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2400 MHz |
| Storage | |
| Total storage capacity | 500 GB |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| Total HDDs capacity | 500 GB |
| Graphics | |
| On-board graphics card model | Intel® HD Graphics 530 |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 1912 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 3 |
| PS/2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Line-out | Yes |
| Microphone in | No |
| Headphone outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Serial ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Design | |
| Product colour | Black |
| Chassis type | SFF |
| Country of origin | China |
| Performance | |
| Product type | Workstation |
| Motherboard chipset | Intel® C236 |
| Audio chip | Realtek HD ALC221 |
| Embedded options available | Yes |
| Processor special features | |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® Secure Key | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Smart Cache | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Thermal solution specification | PCG 2015C |
| Supported instruction sets | SSE4.2, AVX 2.0, SSE4.1 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Processor code | SR2BX |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Graphics & IMC lithography | 14 nm |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 88184 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Weight & dimensions | |
| Width | 13.3" (338 mm) |
| Depth | 15" (381 mm) |
| Height | 3.94" (100 mm) |
| Weight | 12.6 lbs (5.7 kg) |
| Packaging content | |
| Display included | No |
| Mouse included | Yes |
| Keyboard included | Yes |
| Display | |
| Display included | No |
| Features | |
| Country of origin | China |
| Other features | |
| Processor manufacturer | Intel |
| On-board graphics card | Yes |
| Country of origin | China |
