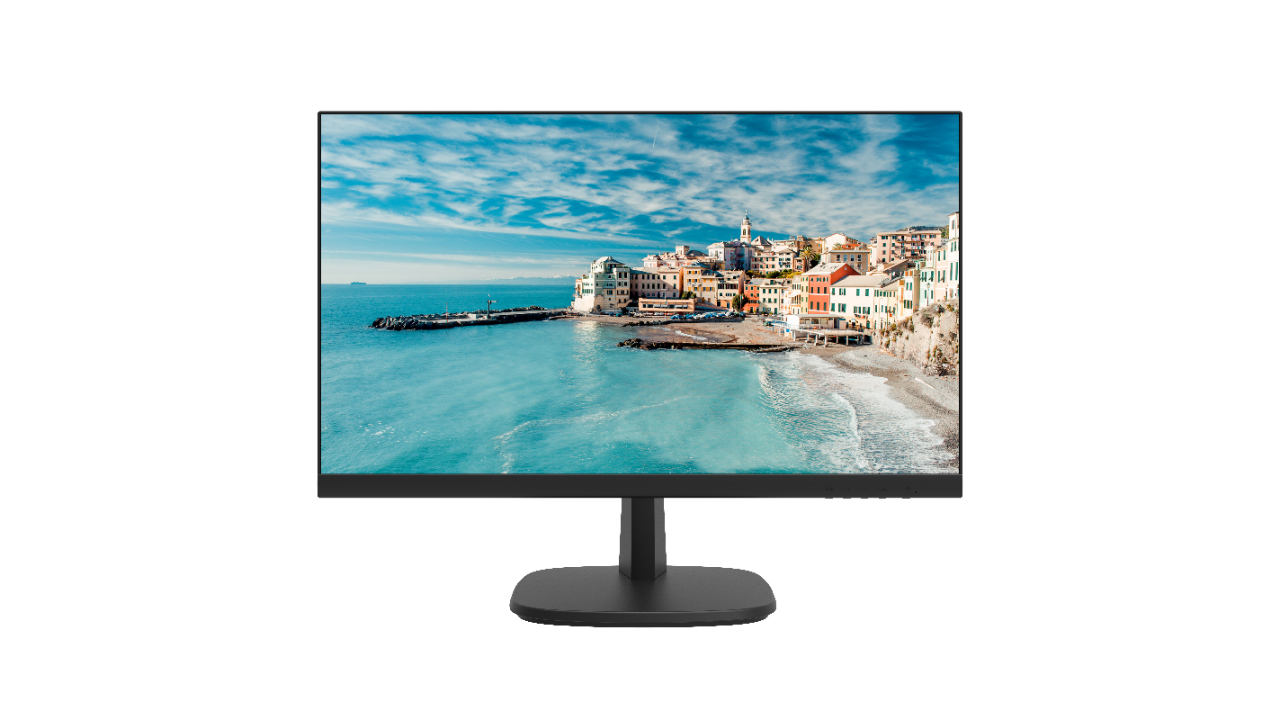

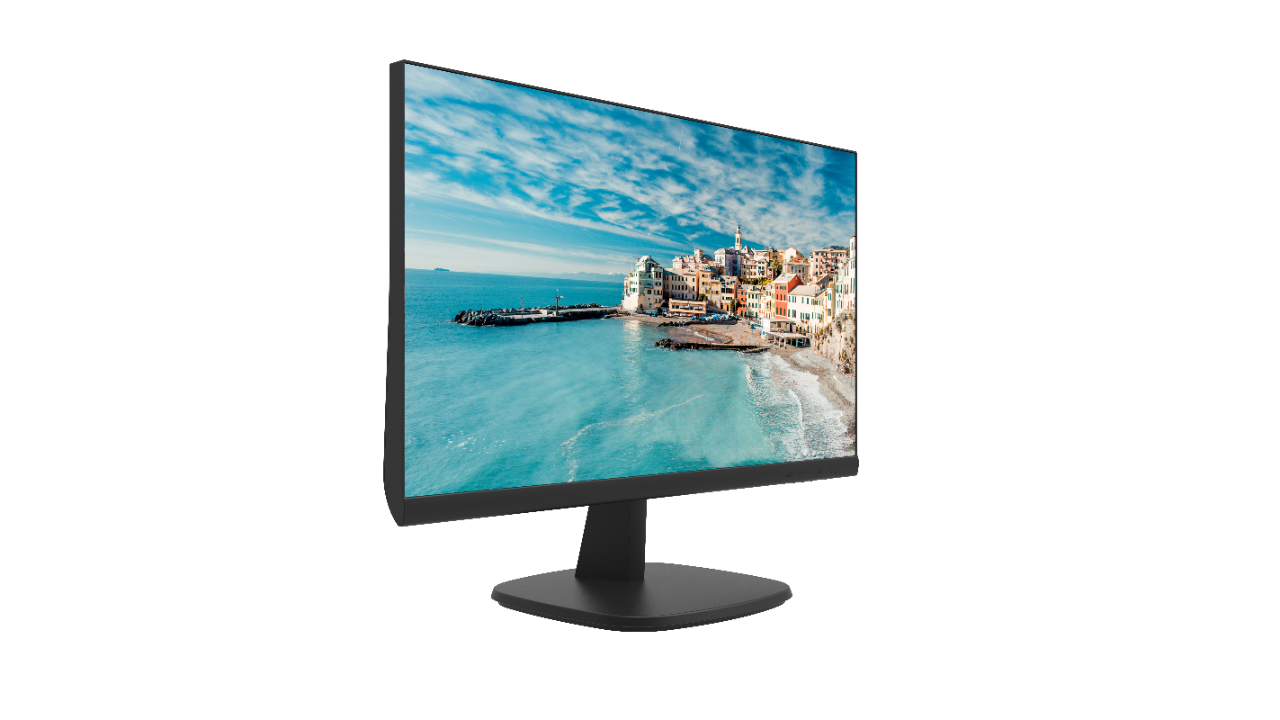

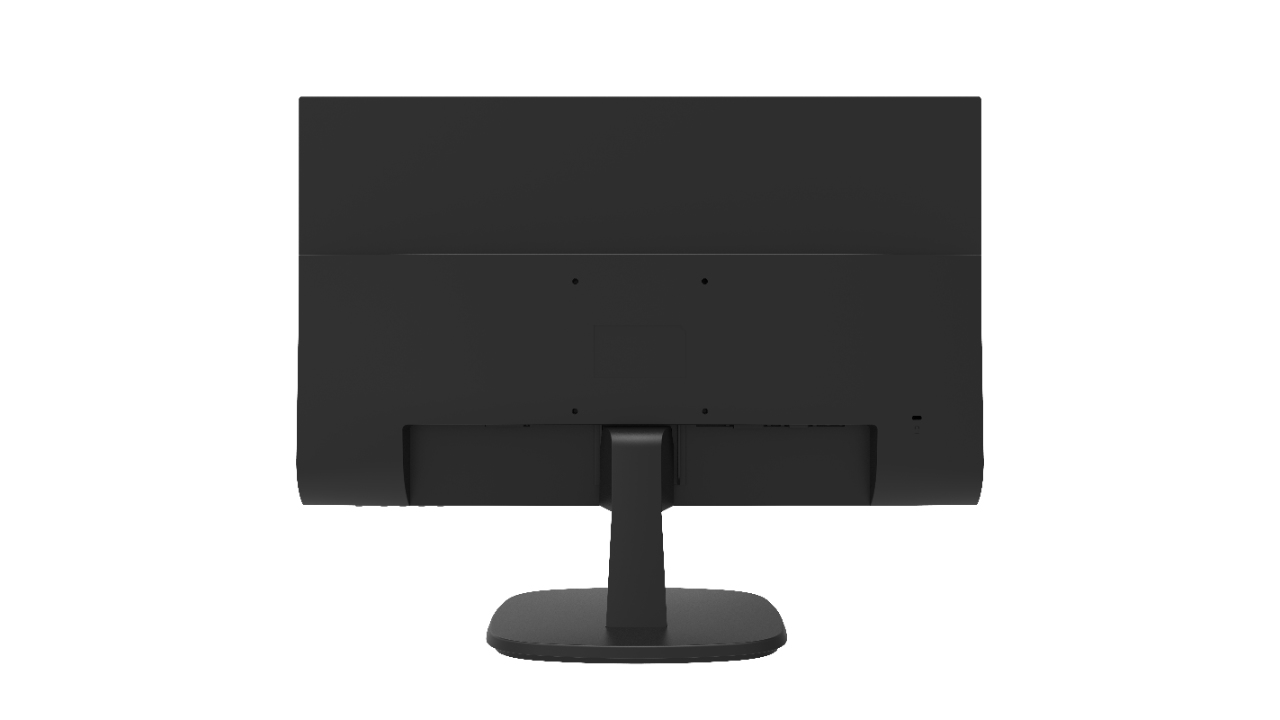

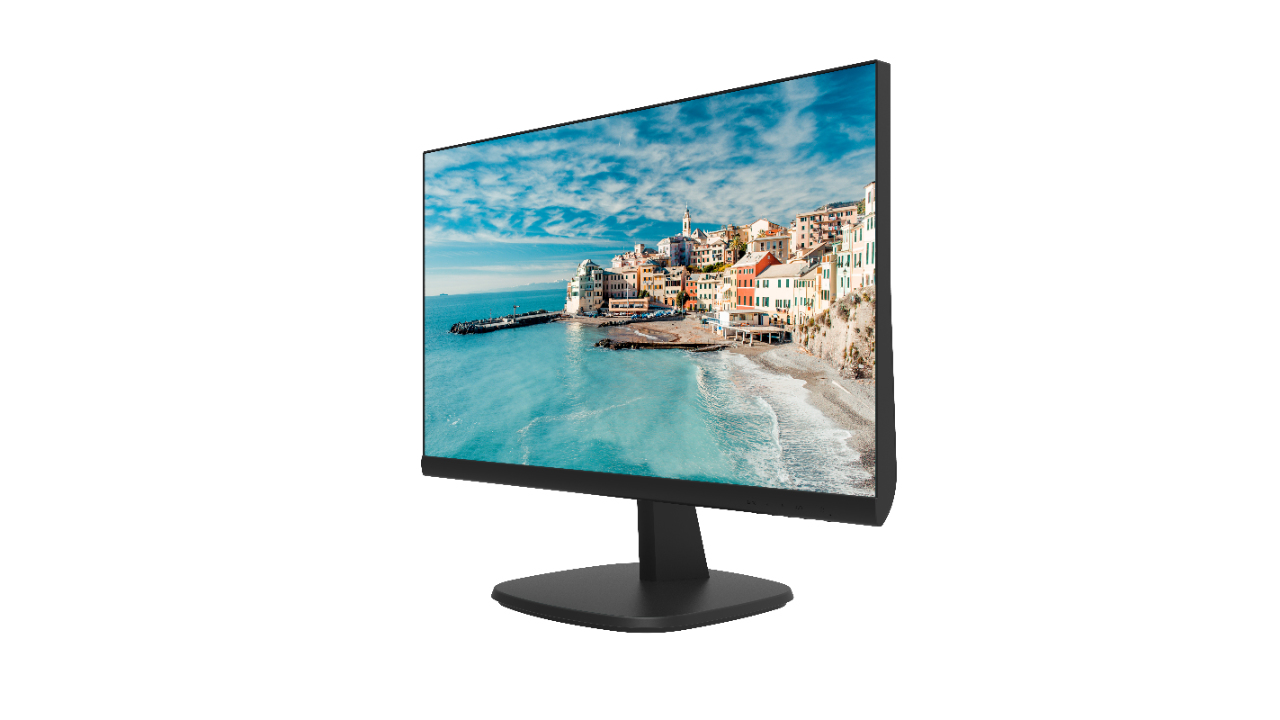

Hikvision Digital Technology DS-D5024FN LED display 23.8" 1920 x 1080 pixels Full HD Black

Hikvision Digital Technology DS-D5024FN LED display 23.8" 1920 x 1080 pixels Full HD Black

23.8", 1920x1080, 14 ms, VGA, HDMI, 540x418x227 mm

Trade Prices

Distributor Product SKU Stock Updated Price
ASI LCD DS-D5024FN 23.8 FHD 1920x1080 HDMI Borderless Retail 263478 Register free see stock

Specifications

Display
Display brightness (typical)250 cd/m²
Display diagonal23.8"
Response time14 ms
Display resolution1920 x 1080 pixels
Display technologyLED
Screen shapeFlat
Display number of colours16.78 million colors
Contrast ratio (typical)1000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Viewable size, horizontal20.7" (52.7 cm)
Viewable size, vertical11.7" (29.6 cm)
HD typeFull HD
Supported graphics resolutions1920 x 1080 (HD 1080)
TouchscreenNo
Panel typeTFT
Performance
AMD FreeSyncNo
NVIDIA G-SYNCNo
Multimedia
Built-in speaker(s)No
Built-in cameraNo
Design
Market positioningBusiness
Product colourBlack
Feet colourBlack
Ports & interfaces
Built-in USB hubNo
VGA (D-Sub) ports quantity1
DVI portNo
HDMI ports quantity1
Audio inputNo
Headphone outNo
HDMIYes
AC (power) inYes
HDMI version1.3
Ergonomics
Cable lock slotNo
VESA mountingYes
Panel mounting interface100 x 100 mm
Height adjustmentNo
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.5 W
Power consumption (typical)30 W
Energy efficiency scaleA to G
Energy efficiency class (SDR)E
Energy consumption (SDR) per 1000 hours18 kWh
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Packaging content
Stand includedYes
Cables includedAC, VGA
Weight & dimensions
Width (with stand)21.3" (540 mm)
Depth (with stand)8.94" (227 mm)
Height (with stand)16.5" (418 mm)
Width (without stand)21.3" (54 cm)
Height (without stand)12.8" (32.4 cm)
Weight (without stand)7.56 lbs (3.43 kg)
Package width24" (609 mm)
Package depth4.29" (109 mm)
Package height19.7" (500 mm)
Package weight9.79 lbs (4.44 kg)
Packaging data
Package width24" (609 mm)
Package depth4.29" (109 mm)
Package height19.7" (500 mm)
Package weight9.79 lbs (4.44 kg)
Stand includedYes
Cables includedAC, VGA
Other features
Width (without stand)21.3" (54 cm)
Height (without stand)12.8" (32.4 cm)
HDMIYes
Energy efficiency scaleA to G
TouchscreenNo
Technical details
TouchscreenNo
