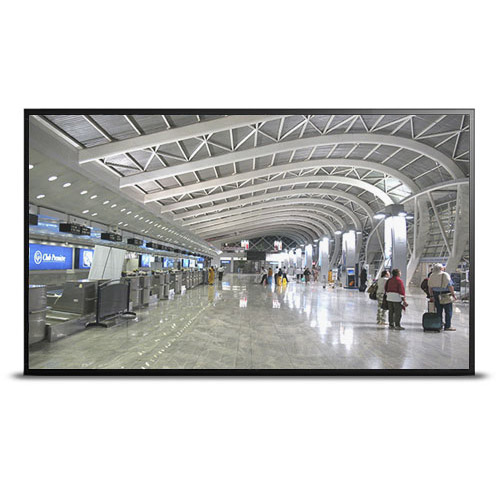

ORION Images R4N98NNU video wall display LCD Indoor
- Brand: Orion Images
- Category:
- SKU: R4N98NNU
- EAN: 0836228002706
98", 3840 x 2160 @ 60Hz, 500cd/m2, 1200 : 1, Display Port x 2, HDMI x 3, DVI, VGA, RS232 x 2, Audio, 2190.2 x 1245.1 x 93.5mm, 90kg
Offer details
Description
The R4N (UHD) Series of LCD Displays is the perfect solution for ultra-high definition video walls. Equipped with a standalone 3840 x 2160 resolution panel and the ability to take a single video source and displaying across the entire Video Wall; it is an excellent choice for command & control centers, corporate, AV and digital signage applications.
Video Walls for Security Center, Control Rooms, Commercial AV, Professional AV
The R4N monitor series can be used for applications in shopping malls, airports, stadiums, lobby signage and boardrooms just to name a few. Whether a small lobby display or an extra large video wall, the R4N series makes a statement. Public display signage with dynamic content receives far more eye contact than with static content and creates cost effective opportunities to improve brand recognition, customer service, safety, training and communications.
Unlike plasma technology, LCD video walls require less power and our built in auto pixel shift feature prevents against image burn in of static content. Individually mounted consumer grade monitors leave gaps between the monitors but with our super & ultra narrow bezels, there are virtually no gaps between monitors in a tiled video wall.
- Security / Control Rooms
- Retail
- Universities & colleges
- Corporations
- Transportation
- Health Care & Medical
- Government
- Financial Institutions
- Hospitality
- Casino
Video Walls for Security Center, Control Rooms, Commercial AV, Professional AV
The R4N monitor series can be used for applications in shopping malls, airports, stadiums, lobby signage and boardrooms just to name a few. Whether a small lobby display or an extra large video wall, the R4N series makes a statement. Public display signage with dynamic content receives far more eye contact than with static content and creates cost effective opportunities to improve brand recognition, customer service, safety, training and communications.
Unlike plasma technology, LCD video walls require less power and our built in auto pixel shift feature prevents against image burn in of static content. Individually mounted consumer grade monitors leave gaps between the monitors but with our super & ultra narrow bezels, there are virtually no gaps between monitors in a tiled video wall.
- Security / Control Rooms
- Retail
- Universities & colleges
- Corporations
- Transportation
- Health Care & Medical
- Government
- Financial Institutions
- Hospitality
- Casino
Specifications
| Display | |
|---|---|
| Display technology | LCD |
| Display diagonal | 98" |
| Display resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Aspect ratio | 16:9 |
| Pixel pitch | 0.0221 x 0.0221" (0.562 x 0.562 mm) |
| Display brightness | 500 cd/m² |
| Display number of colours | 1.07 billion colors |
| Contrast ratio (typical) | 1200:1 |
| Response time | 8 s |
| Native refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Design | |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Bezel width (top) | 0.508" (1.29 cm) |
| Bezel width (side) | 0.508" (1.29 cm) |
| Bezel width (bottom) | 0.508" (1.29 cm) |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 600 mm |
| Panel material | Stainless steel |
| Product colour | Black |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 3 |
| DVI port | Yes |
| VGA (D-Sub) input ports | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| RS-232 output ports | 1 |
| RS-232 input ports | 1 |
| Audio output | Yes |
| Power | |
| Power consumption (typical) | 590 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 86.2" (2190.2 mm) |
| Depth | 3.68" (93.5 mm) |
| Height | 49" (1245.1 mm) |
| Weight | 198.4 lbs (90 kg) |
| Packaging data | |
| Remote control included | Yes |
