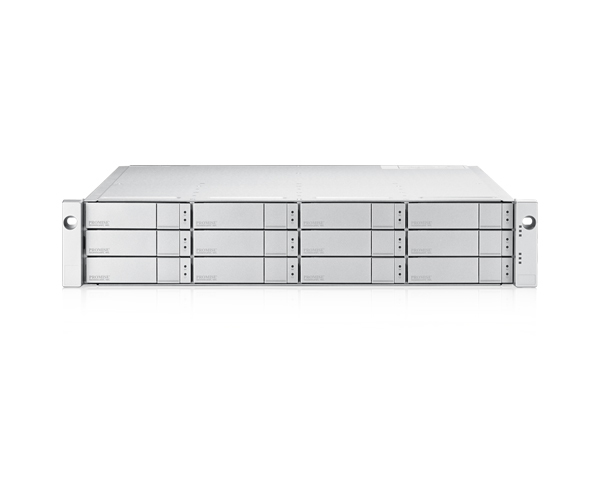

Promise Technology E5300f disk array 48 TB Rack (2U) Stainless steel
- Brand: PROMISE TECHNOLOGY
- Category:
- SKU: E5300FSQS4
- EAN: 0704118112265
Promise Technology E5300f, 48 TB, HDD, Serial Attached SCSI (SAS), 3.5", Rack (2U), Stainless steel
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
2U/12-Bay Single Controller 16G FC RAID Subsystem with 12x 4TB 7200 rpm 12G SAS |
5723273 |
Description
Promise Technology E5300f. Total installed storage capacity: 48 TB, Installed storage drive type: HDD, Storage drive interface: Serial Attached SCSI (SAS), Storage drive size: 3.5". Chassis type: Rack (2U), Device class: Large Enterprise Business. Number of storage drives supported: 12, Supported storage drive types: HDD & SSD. Width: 17.6" (446.7 mm), Depth: 20" (507 mm), Height: 3.46" (88 mm), Weight: 54.7 lbs (24.8 kg). Product color: Stainless steel
Specifications
| Storage | |
|---|---|
| Total installed storage capacity | 48 TB |
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 12 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive capacity | 4 TB |
| Storage drive size | 3.5" |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Hot-swap drive bays | Yes |
| Data transfer rate | 12 Gbit/s |
| HDD speed | 7200 RPM |
| Ports & interfaces | |
| Fibre Channel | Yes |
| Serial interface type | RS-232 |
| Remote management port | RJ-45 (Gigabit) |
| Design | |
| Device class | Large Enterprise Business |
| Chassis type | Rack (2U) |
| Product colour | Stainless steel |
| LED indicators | Yes |
| Noise level | 55 dB |
| Certification | GreenPC, WEEE |
| Performance | |
| Device class | Large Enterprise Business |
| Noise level | 55 dB |
| Power | |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100-240 V |
| System requirements | |
| Mac compatibility | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2012 |
| Mac operating systems supported | Mac OS X 10.0 Cheetah |
| Weight & dimensions | |
| Width | 17.6" (446.7 mm) |
| Depth | 20" (507 mm) |
| Height | 3.46" (88 mm) |
| Weight | 54.7 lbs (24.8 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Other features | |
| Compliance certificates | RoHS |
