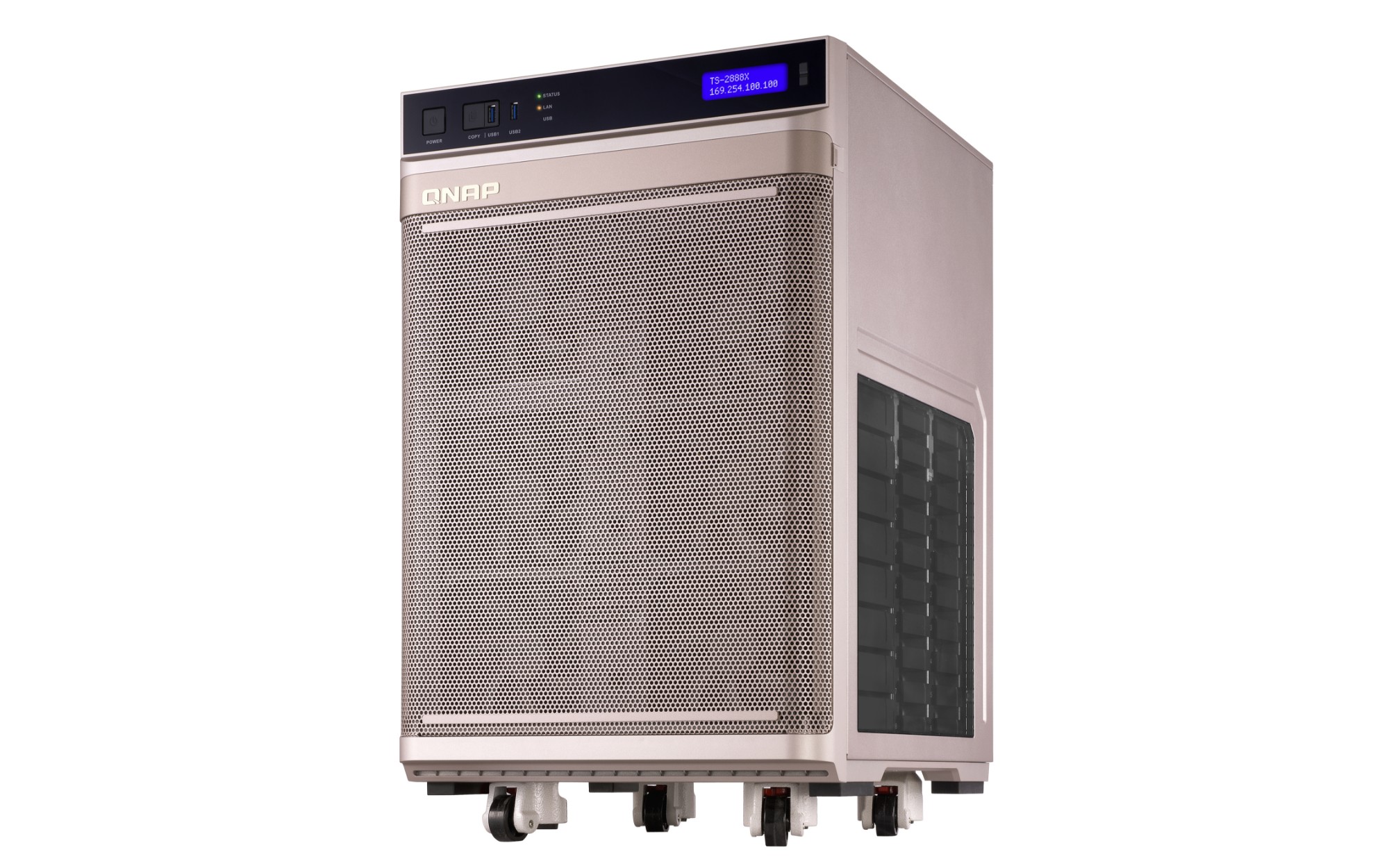

QNAP TS-2888X NAS Tower Intel® Xeon® W-2145 128 GB DDR4 QNAP Turbo System Copper
- Brand: QNAP
- Category:
- SKU: TS-2888X-W2145-128G-US
- EAN: 0885022016914
AI-Ready NAS, Xeon W-2145 (8x 3.7GHz), 16x 2.5" SATAIII SSD, 8 x 3.5" SATAIII HDD, 4x 2.5" U.2 SSD, 128GB DDR4 ECC, 2x 10GBASE-T LAN, 6x USB3.1 Gen1
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
28-BAY AI NAS XEON W-2145 8CORE 3.7G128G |
6320236 |
Description
5 Reasons to Choose the TS-2888X
Affordable, Cost-effective
The TS-2888X is powerful yet affordable, making AI accessible to your business blueprint.
Secure & Private
Public cloud training is not suitable for confidential or sensitive data. Keep full control over all your data with the TS-2888X!
Ready-to-use AI Environment
QNAP’s exclusive QuAI computing platform simplifies implementing AI workflows.
Huge Storage Potential
Data is the key to AI, and the TS-2888X provides the potential for huge capacities to remove the storage bottleneck from AI development.
Comprehensive Backup Solution
Flexible backup tools and snapshot protection assure your data while also allowing efficient disaster recovery.
The Core. The Power. The Lead
Up to 18 cores with 36 threads and up to 4.5 GHz with Intel® Turbo Boost Technology 2.0, combined with up to 512 GB DDR4 ECC RDIMM 2666 MHz memory to deliver rapid workload loading and processing.
All-in-One AI Solution: The Combination of System and Software
The TS-2888X AI-Ready NAS is designed to optimize AI workflows, providing a hands-on, ready-to-use software environment to reduce time and complexity for implementation and management. Besides the exclusive QuAI – an AI developer package to quickly build, train and optimize AI models running on the NAS – QNAP's Container Station enables a range of open-source tools and frameworks for the AI workflows readily available to you. Being an all-in-one AI solution, the TS-2888X greatly simplifies the implementation of AI alongside providing greater cost-efficiency.

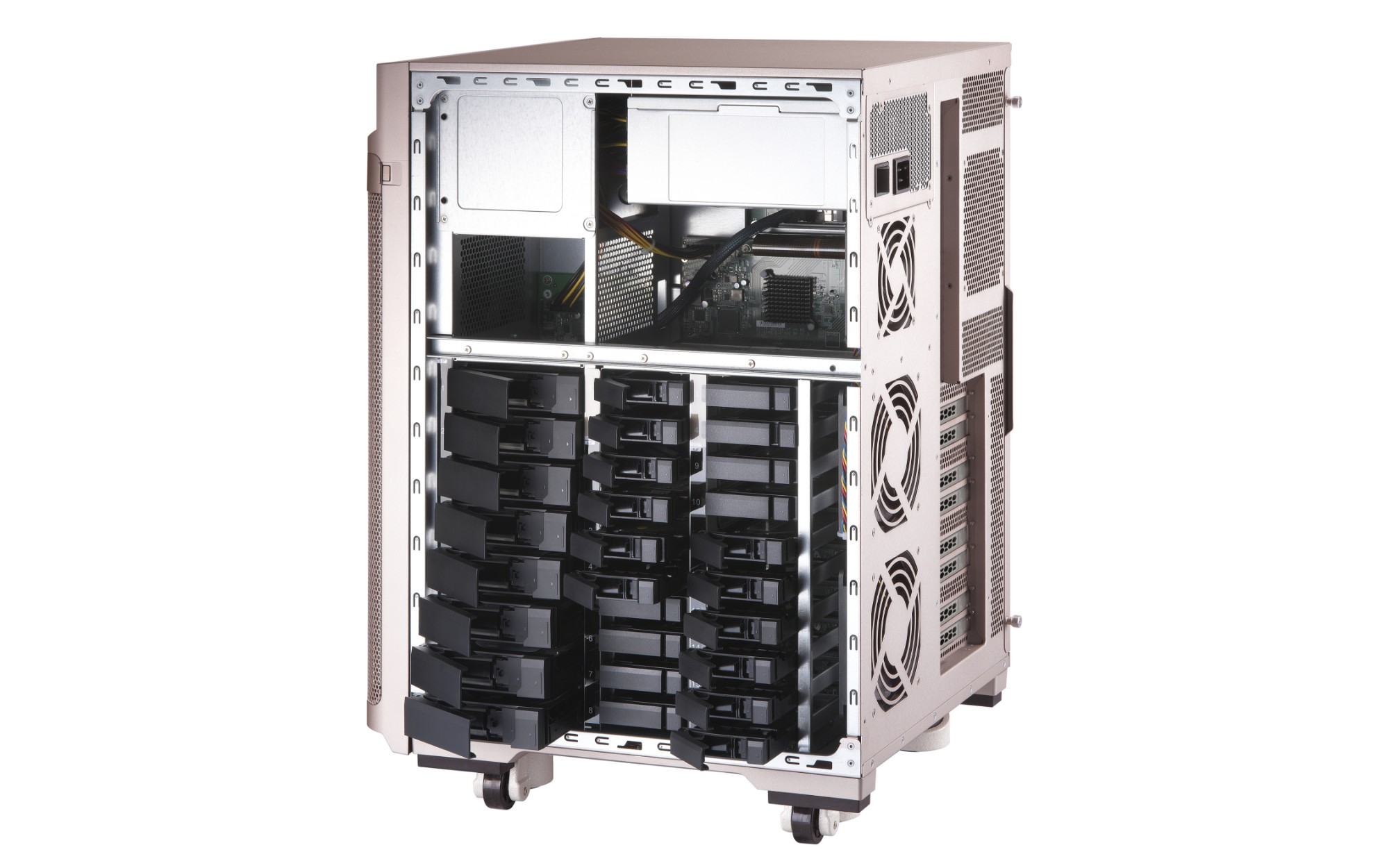

High-Performance Computing with Hybrid-Architecture Storage
The TS-2888X utilizes a hybrid architecture with high-capacity HDDs and high-performance SSDs to meet your simultaneous needs for scale and performance. It supports up to 4 graphics cards to deliver tremendous computing power for accelerating AI machine learning. By integrating ready-to-use AI software with GPU-powered storage, the TS-2888X provides low latency, performs high-speed data transfer, and effectively reduces performance bottlenecks.
Affordable, Cost-effective
The TS-2888X is powerful yet affordable, making AI accessible to your business blueprint.
Secure & Private
Public cloud training is not suitable for confidential or sensitive data. Keep full control over all your data with the TS-2888X!
Ready-to-use AI Environment
QNAP’s exclusive QuAI computing platform simplifies implementing AI workflows.
Huge Storage Potential
Data is the key to AI, and the TS-2888X provides the potential for huge capacities to remove the storage bottleneck from AI development.
Comprehensive Backup Solution
Flexible backup tools and snapshot protection assure your data while also allowing efficient disaster recovery.
The Core. The Power. The Lead
Up to 18 cores with 36 threads and up to 4.5 GHz with Intel® Turbo Boost Technology 2.0, combined with up to 512 GB DDR4 ECC RDIMM 2666 MHz memory to deliver rapid workload loading and processing.
All-in-One AI Solution: The Combination of System and Software
The TS-2888X AI-Ready NAS is designed to optimize AI workflows, providing a hands-on, ready-to-use software environment to reduce time and complexity for implementation and management. Besides the exclusive QuAI – an AI developer package to quickly build, train and optimize AI models running on the NAS – QNAP's Container Station enables a range of open-source tools and frameworks for the AI workflows readily available to you. Being an all-in-one AI solution, the TS-2888X greatly simplifies the implementation of AI alongside providing greater cost-efficiency.
High-Performance Computing with Hybrid-Architecture Storage
The TS-2888X utilizes a hybrid architecture with high-capacity HDDs and high-performance SSDs to meet your simultaneous needs for scale and performance. It supports up to 4 graphics cards to deliver tremendous computing power for accelerating AI machine learning. By integrating ready-to-use AI software with GPU-powered storage, the TS-2888X provides low latency, performs high-speed data transfer, and effectively reduces performance bottlenecks.
Specifications
| Storage | |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 28 |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | W-2145 |
| Processor frequency | 3.7 GHz |
| Processor cores | 8 |
| Thermal Design Power (TDP) | 140 W |
| Tcase | 70 °C |
| Stepping | U0 |
| Scalability | 1S |
| Processor threads | 16 |
| Processor socket | LGA 2066 (Socket R4) |
| Processor package size | 45 x 52.5 mm |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Processor code | SR3LQ |
| Processor cache type | Smart Cache |
| Processor cache | 11 MB |
| Processor boost frequency | 4.5 GHz |
| Physical Address Extension (PAE) | 46 bit |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| ECC supported by processor | Yes |
| CPU configuration (max) | 1 |
| Bus type | QPI |
| Maximum internal memory supported by processor | 512 GB |
| Memory bandwidth supported by processor (max) | 85.3 GB/s |
| Conflict-Free processor | Yes |
| Processor ARK ID | 126707 |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 128 GB |
| Memory clock speed | 2666 MHz |
| Maximum RAM supported | 512 GB |
| Memory slots | 8 |
| Memory form factor | RDIMM |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| Ports & interfaces | |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 6 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Design | |
| Chassis type | Tower |
| Product colour | Copper |
| Cooling type | Active |
| Number of fans | 9 fan(s) |
| Fan diameter | 4.72" (12 cm) |
| LED indicators | Yes |
| Built-in display | Yes |
| Display type | LCM |
| Performance | |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup button | Yes |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Built-in optical drive | No |
| Card reader integrated | No |
| Operating system installed | QNAP Turbo System |
| On/off switch | Yes |
| Snapshot | Yes |
| USB copy function | Yes |
| Software | |
| Operating system installed | QNAP Turbo System |
| Power | |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 2000 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | No |
| Processor special features | |
| Thermal Monitoring Technologies | Yes |
| Physical Address Extension (PAE) | Yes |
| Maximum number of PCI Express lanes | 48 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Flex Memory Access | No |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Memory channels supported by processor | Quad |
| Memory types supported by processor | DDR4-SDRAM |
| Other features | |
| Processor ARK ID | 126707 |
