SYBA SI-PEX40089 interface cards/adapter Internal SATA
- Brand: SYBA
- Category:
- SKU: SI-PEX40089
- EAN: 0810154013111

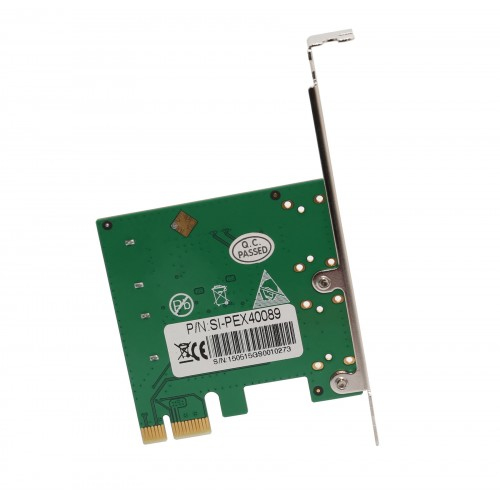

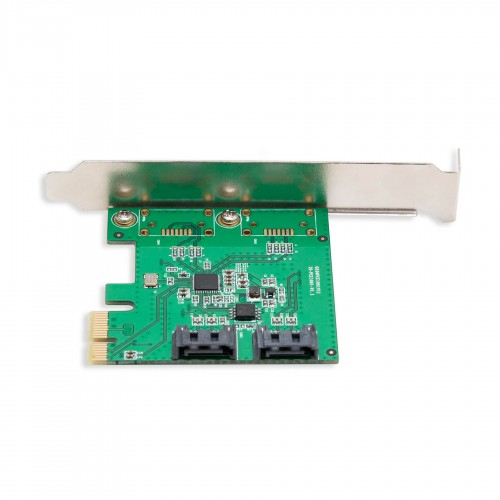

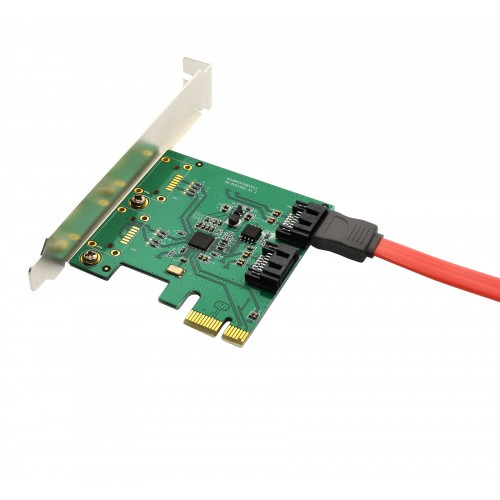

SI-PEX40089 - 2 Port SATA III PCI-e 2.0 x1 RAID Card
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
SI-PEX40089 2PT SATAIII PCIe x1 REV 2.0 Full+LP ASMedia Chipset RAID RTL |
164754 |
Description
Syba's 2 Port SATA 6Gb/s PCI-e x1 is a high performance SATA host adapter designed to add two internal Serial ATA 6Gb/s channels to your PCI Express-equipped computer for additional hard disk drive connections. It supports SATA hard disk drives up to 4TB, ATA/ATAPI-7 specification as well as port multiplier. Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, SPAN) support. Includes both a full and low profile/half-height bracket for installation into any size of desktop computer.
- ASMedia ASM1061 chipset
- Supports 2 ports Serial ATA PHY, 1.5Gbps, 3.0Gbps and 6.0Gbps seed negotiation
- Supports AHCI and IDE programming interface
- Supports Native Command Queue (NCQ)
- Supports Port Multiplier command based switching
- Embedded hardware RAID engine
- RAID mode changeable, controlled via the setting by two GPIOs or GUI utility
- Supports S.M.A.R.T feature
- Supports automatic rebuild
- ASMedia ASM1061 chipset
- Supports 2 ports Serial ATA PHY, 1.5Gbps, 3.0Gbps and 6.0Gbps seed negotiation
- Supports AHCI and IDE programming interface
- Supports Native Command Queue (NCQ)
- Supports Port Multiplier command based switching
- Embedded hardware RAID engine
- RAID mode changeable, controlled via the setting by two GPIOs or GUI utility
- Supports S.M.A.R.T feature
- Supports automatic rebuild
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Host interface | PCIe |
| Output interface | SATA |
| Expansion card standard | PCIe 2.0 |
| Performance | |
| Chipset | ASMedia ASM1061 |
| RAID levels | 0, 1 |
| Native Command Queuing (NCQ) | Yes |
| Data transfer rate (max) | 6 Gbit/s |
| Design | |
| Internal | Yes |
| Features | |
| Chipset | ASMedia ASM1061 |
| RAID levels | 0, 1 |
| Native Command Queuing (NCQ) | Yes |
| Data transfer rate (max) | 6 Gbit/s |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Packaging data | |
| Cables included | SATA |
| Mounting brackets included | No |
| Manual | Yes |
| Drivers included | Yes |
| Package width | 5.51" (140 mm) |
| Package depth | 6.61" (168 mm) |
| Package height | 1.61" (41 mm) |
| Package weight | 4.8 oz (136 g) |
| Weight & dimensions | |
| Package width | 5.51" (140 mm) |
| Package depth | 6.61" (168 mm) |
| Package height | 1.61" (41 mm) |
| Package weight | 4.8 oz (136 g) |
| Packaging content | |
| Cables included | SATA |
| Mounting brackets included | No |
| Manual | Yes |
| Drivers included | Yes |
| Other features | |
| Chipset | ASMedia ASM1061 |
