Description
The Smarter Cloud Solution for Business Networking.

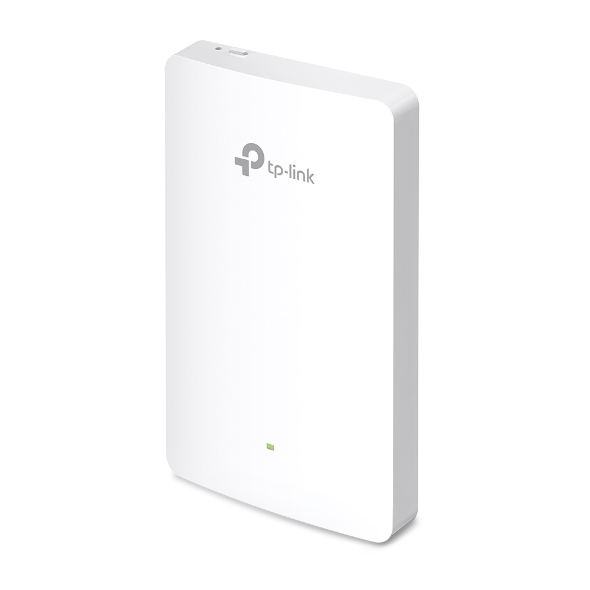

AX1800 Wall Plate WiFi 6 Access Point
Futureproof Your Network with WiFi 6 Connectivity
Connect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps..

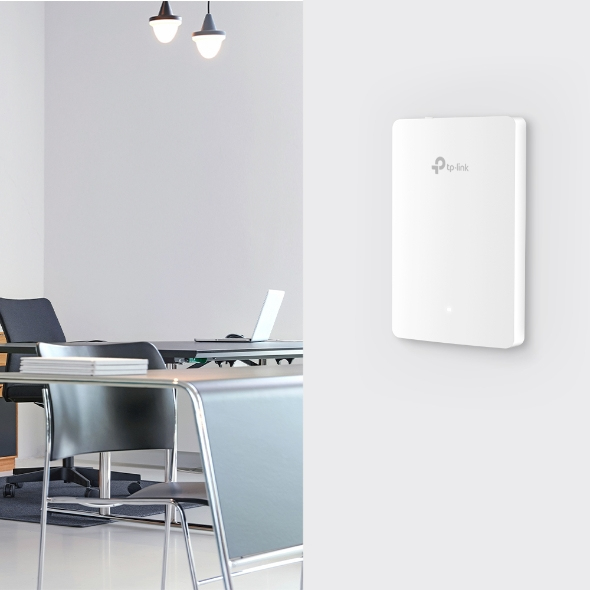

Corner-to-Corner Indoor WiFi Coverage
Guests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.
AX1800 Wall Plate WiFi 6 Access Point
Futureproof Your Network with WiFi 6 Connectivity
Connect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps..
Corner-to-Corner Indoor WiFi Coverage
Guests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.
Specifications
| Performance | |
|---|---|
| Maximum data transfer rate | 1774 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Automatic channel selection | Yes |
| Syslog | Yes |
| On/off switch | Yes |
| VLAN support | Yes |
| Reset button | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Firmware upgradeable | Yes |
| Certification | CE, FCC, RoHS |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Features | |
| 6 GHz | No |
| Maximum data transfer rate | 1774 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Automatic channel selection | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Transmitting power (FCC) | 21 dBm |
| Transmitting power (CE) | 20 dBm |
| Automatic channel scanning | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| BeamForming | Yes |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Number of SSID supported | 16 |
| Access Control List (ACL) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Management features | |
| Syslog | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 4 |
| Cabling technology | 10/100/1000Base-T(X) |
| Power | |

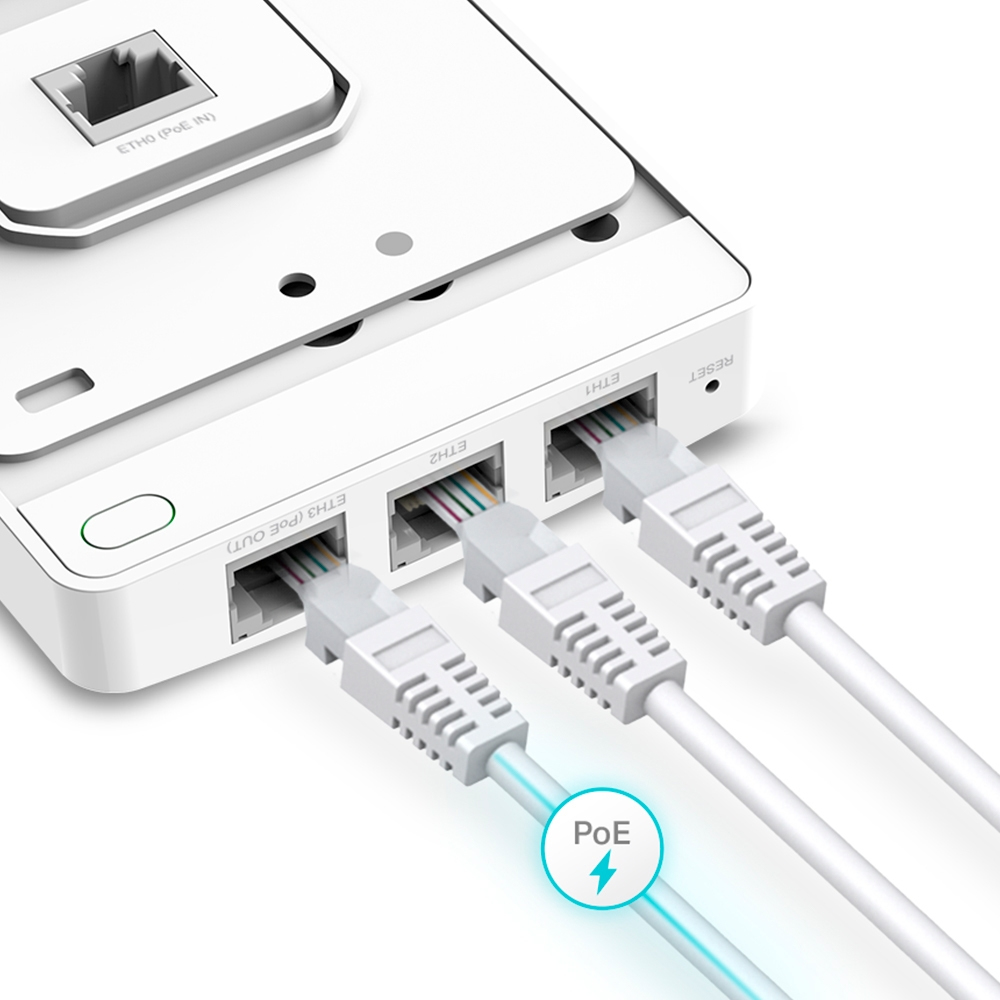

| Power over Ethernet (PoE) | Yes |
| Design | |
| On/off switch | Yes |
| Reset button | Yes |
| Placement | Wall |
| LED indicators | Power |
| Product colour | White |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 4 dBi |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Software | |
| Automatic channel scanning | Yes |
| Access Control List (ACL) | Yes |
| Weight & dimensions | |
| Width | 5.63" (143 mm) |
| Depth | 3.39" (86 mm) |
| Height | 0.787" (20 mm) |
| Package width | 15.2" (385 mm) |
| Package depth | 19.5" (495 mm) |
| Package height | 8.27" (210 mm) |
| Package weight | 11.6 oz (330 g) |
| Packaging data | |
| Package width | 15.2" (385 mm) |
| Package depth | 19.5" (495 mm) |
| Package height | 8.27" (210 mm) |
| Package weight | 11.6 oz (330 g) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
