Tripp Lite PDUMH30HV6 power distribution unit (PDU) 18 AC outlet(s) 2U Black

Tripp Lite PDUMH30HV6 power distribution unit (PDU) 18 AC outlet(s) 2U Black

Tripp Lite PDUMH30HV6, Metered, 2U, Single-phase, Horizontal, Metal, Black

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro

METERED PDU 208/240V L6-30P

 119VVL Register free see stock
Synnex

PDU Metered 16 C13 2 C19 Outlets 208/240V 5.8kW L6-30P 2URM TAA

 6647860

Related Products

Description

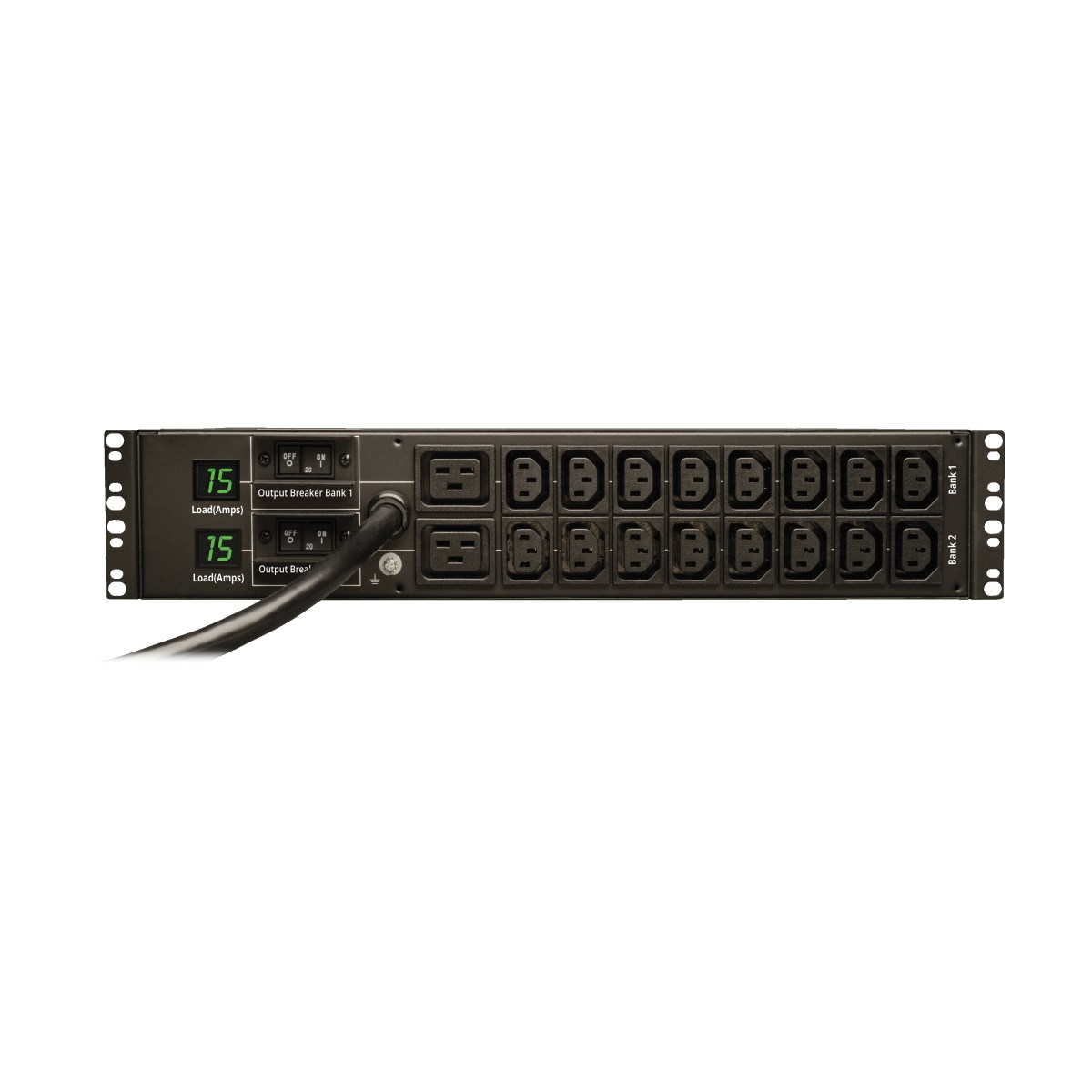

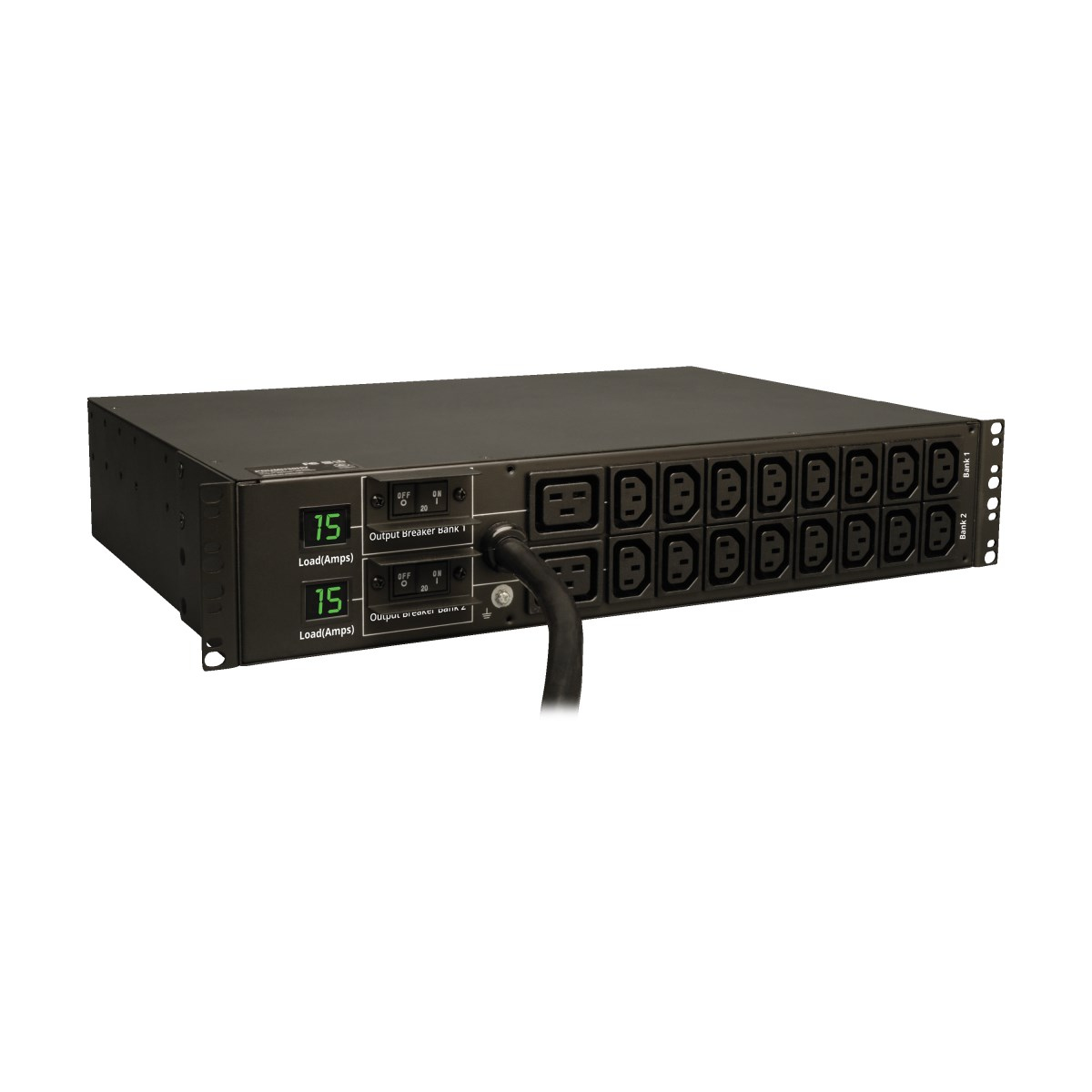

Tripp Lite PDUMH30HV6. PDU types: Metered, Rack capacity: 2U, Type: Single-phase. AC outlets quantity: 18 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: NEMA L6-30P. Cable length: 72" (1.83 m). Nominal input voltage: 200 - 240 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: TAA

Specifications

Design
PDU typesMetered
MountingHorizontal
On/off switchYes
TypeSingle-phase
DisplayLCD
Product colourBlack
CertificationTAA
Rack capacity2U
Housing materialMetal
Ports & interfaces

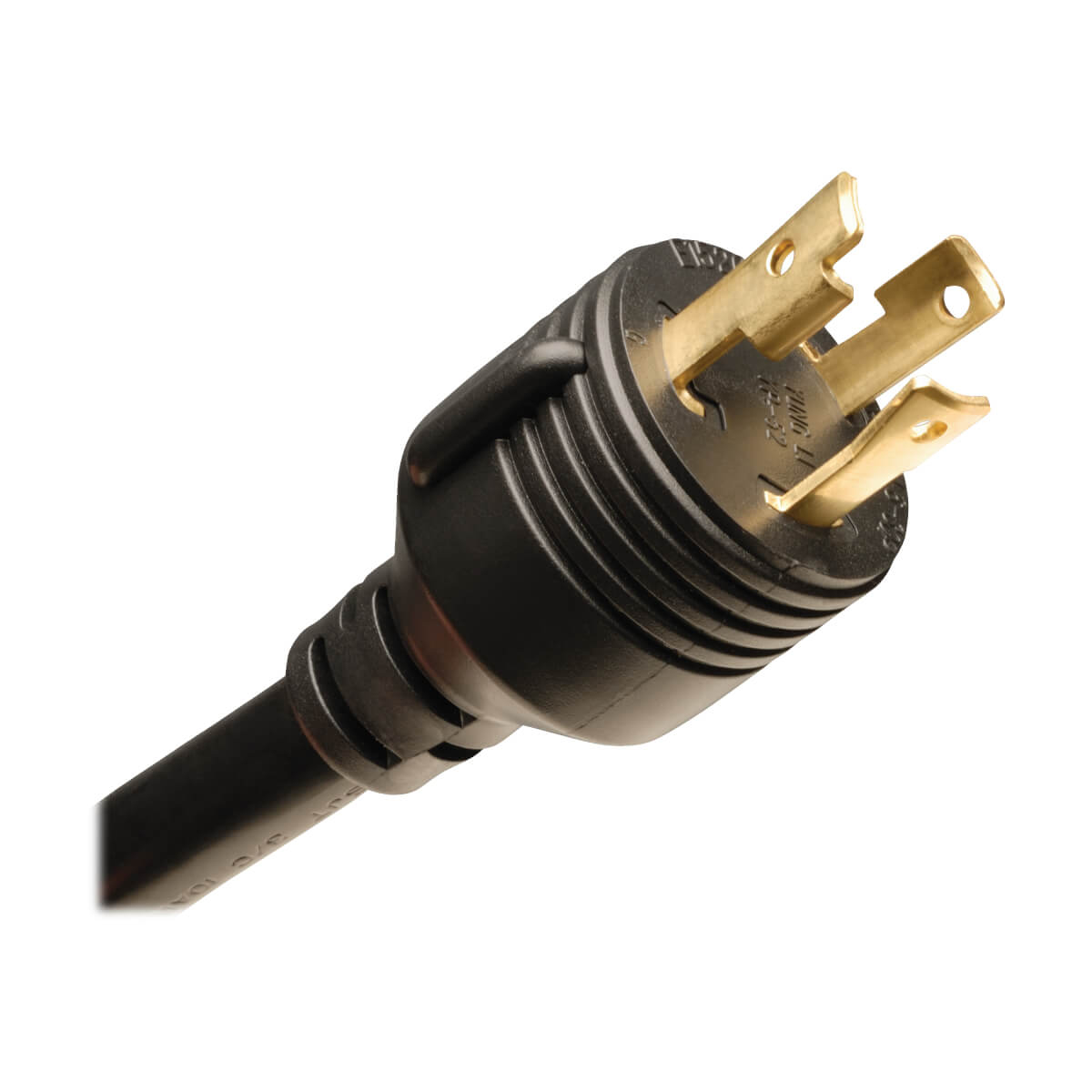

Power plugNEMA L6-30P
AC outlets quantity18 AC outlet(s)
Master AC outlets quantity16
Slave AC outlets quantity2
AC outlet typesC13 coupler, C19 coupler
Features
LED indicatorsYes
Cable length72" (1.83 m)
CertificationTAA
Ergonomics
DisplayLCD
LED indicatorsYes
Cable length72" (1.83 m)
Power
Nominal input voltage200 - 240 V
Maximum power5800 W
Maximum current30 A
Nominal output voltage200 - 240 V
Power protection featuresOverload
AC input frequency50 - 60 Hz
Certificates
CertificationTAA
Compliance certificatesRoHS
Operational conditions
Storage temperature (T-T)-30 - 50 °C
Storage relative humidity (H-H)5 - 95%
Weight & dimensions
Weight13.7 lbs (6.21 kg)
Width17.5" (444.5 mm)
Depth12.5" (317.5 mm)
Height3.5" (88.9 mm)
Package width16.7" (424.2 mm)
Package depth19.8" (502.9 mm)
Package height7.8" (198.1 mm)
Package weight15.8 lbs (7.17 kg)

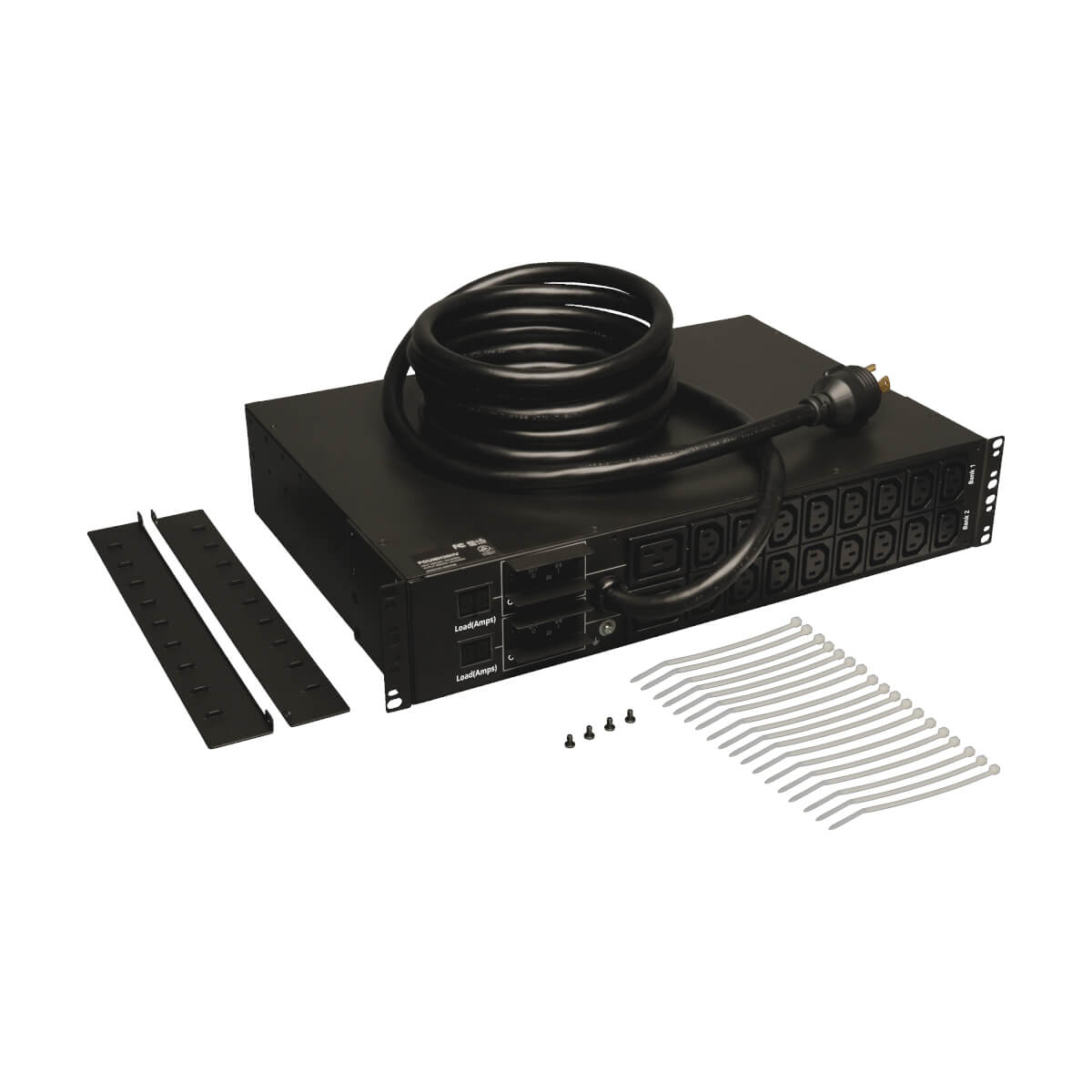

Packaging content
ManualYes
Rack mount kitYes
Packaging data
Package width16.7" (424.2 mm)
Package depth19.8" (502.9 mm)
Package height7.8" (198.1 mm)
Package weight15.8 lbs (7.17 kg)
Technical details
Compliance certificatesRoHS
Logistics data
Master (outer) case width16.7" (424.2 mm)
Master (outer) case length19.8" (502.9 mm)
Master (outer) case height7.8" (198.1 mm)
Master (outer) case gross weight15.8 lbs (7.17 kg)
Products per master (outer) case1 pc(s)
Country of originTaiwan
