60 GHz PtMP by Wave Technology |
WAVENANOCA | |||
|

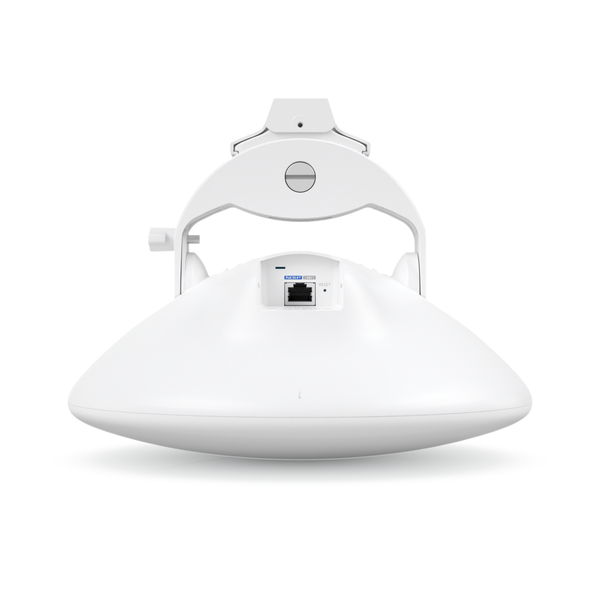

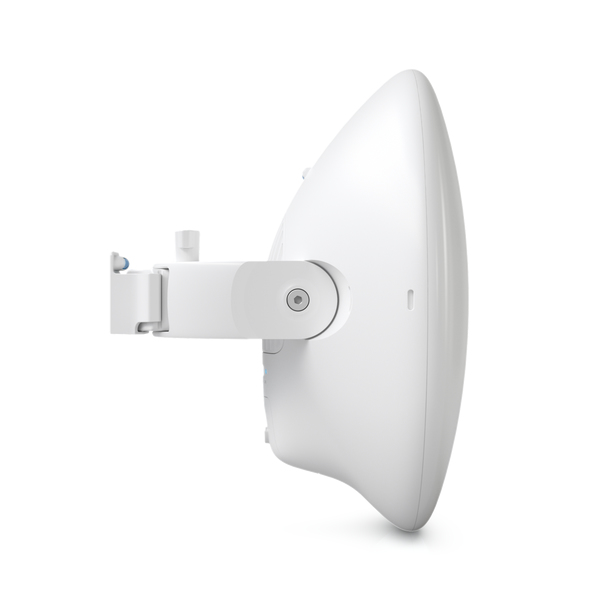

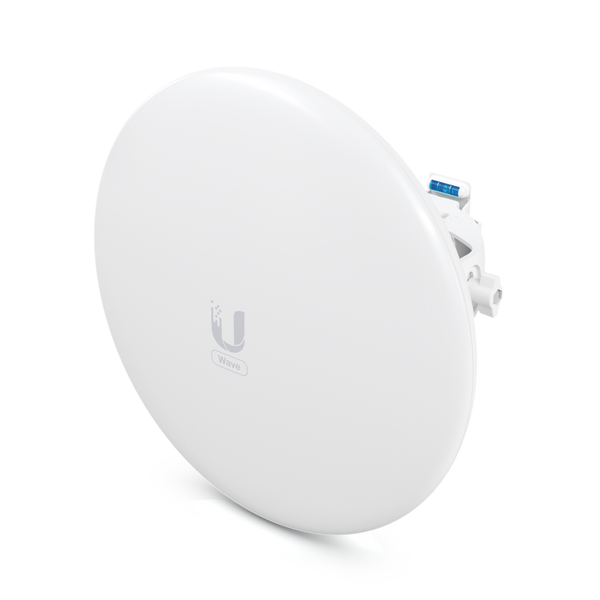

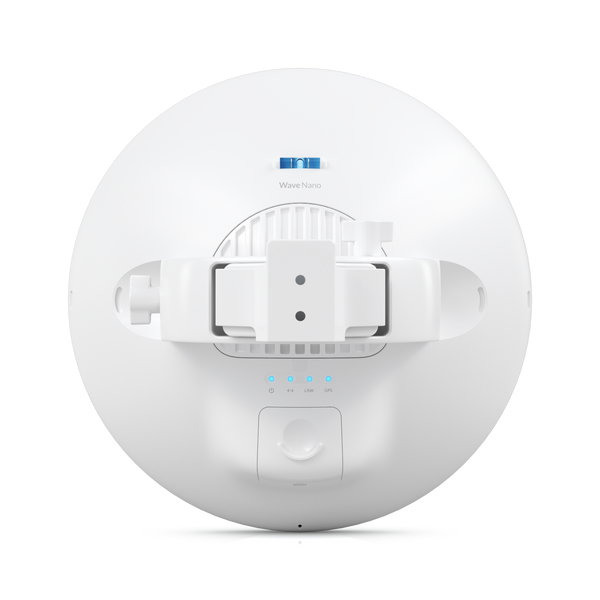

UISP Wave Nano |
UBI-WAVENANO |
Description
60 GHz PtMP station powered by Wave Technology.
Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Specifications
| Data transmission | |
|---|---|
| Maximum transfer distance | 196850.4" (5000 m) |
| Antenna | |
| Antenna gain level (max) | 41 dBi |
| Wireless LAN features | |
| Modulation | 8PSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, QPSK |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (60 GHz) |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Security algorithms | AES, WPA2-PSK |
| Management features | |
| Web-based management | Yes |
| Features | |
| Reset button | Yes |
| International Protection (IP) code | IPX6 |
| Rack mounting | No |
| LED indicators | Yes |
| Internal memory | 512 MB |
| Product colour | White |
| Mounting type | Pole |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | FCC, IC, |
| Weight & dimensions | |
| Weight | 32.9 oz (932 g) |
| Width | 10.1" (256.5 mm) |
| Depth | 4.47" (113.5 mm) |
| Height | 10.1" (256.5 mm) |
| Technical details | |
| Quantity per pack | 1 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
