Vantec UGT-ST655 interface cards/adapter Internal SATA
- Brand: Vantec
- Category:
- SKU: UGT-ST655
- EAN: 0844767023632 4716872103850

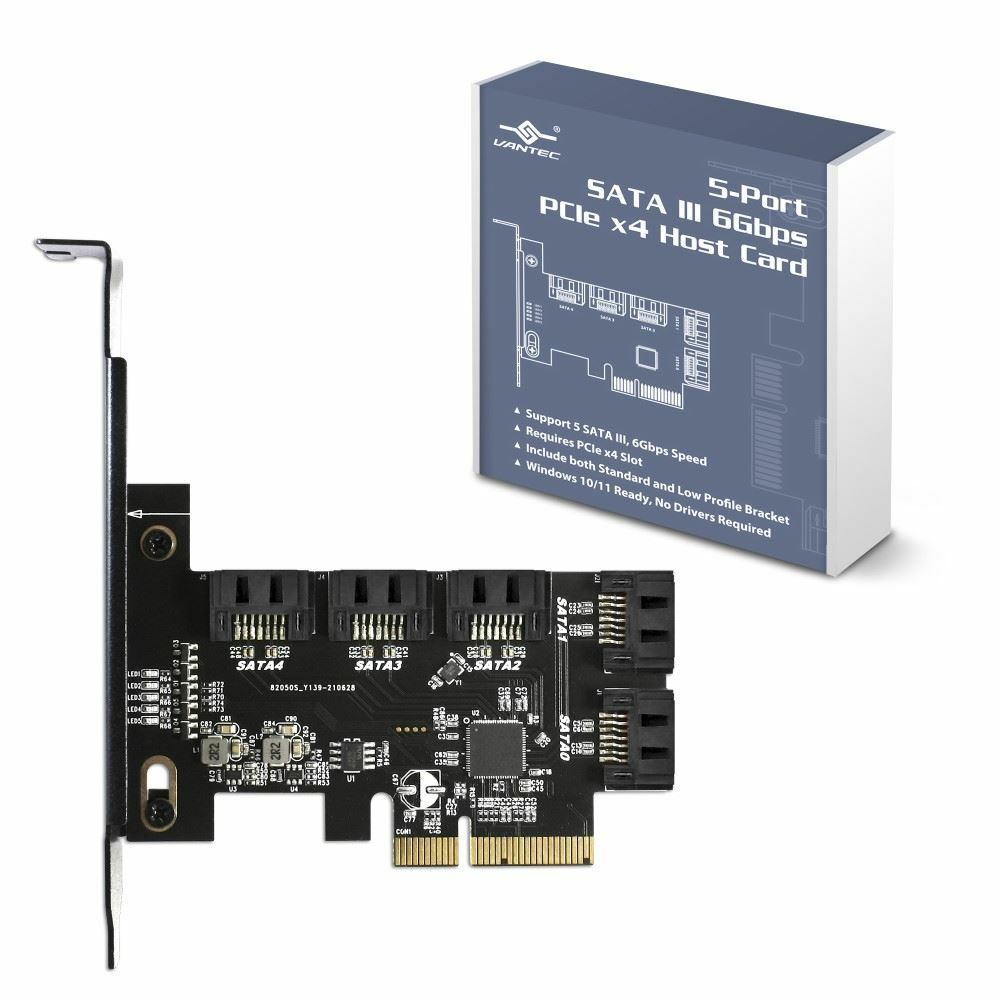

5-Port SATA III 6Gbps PCIe X4 Host Card
Offer details
Description

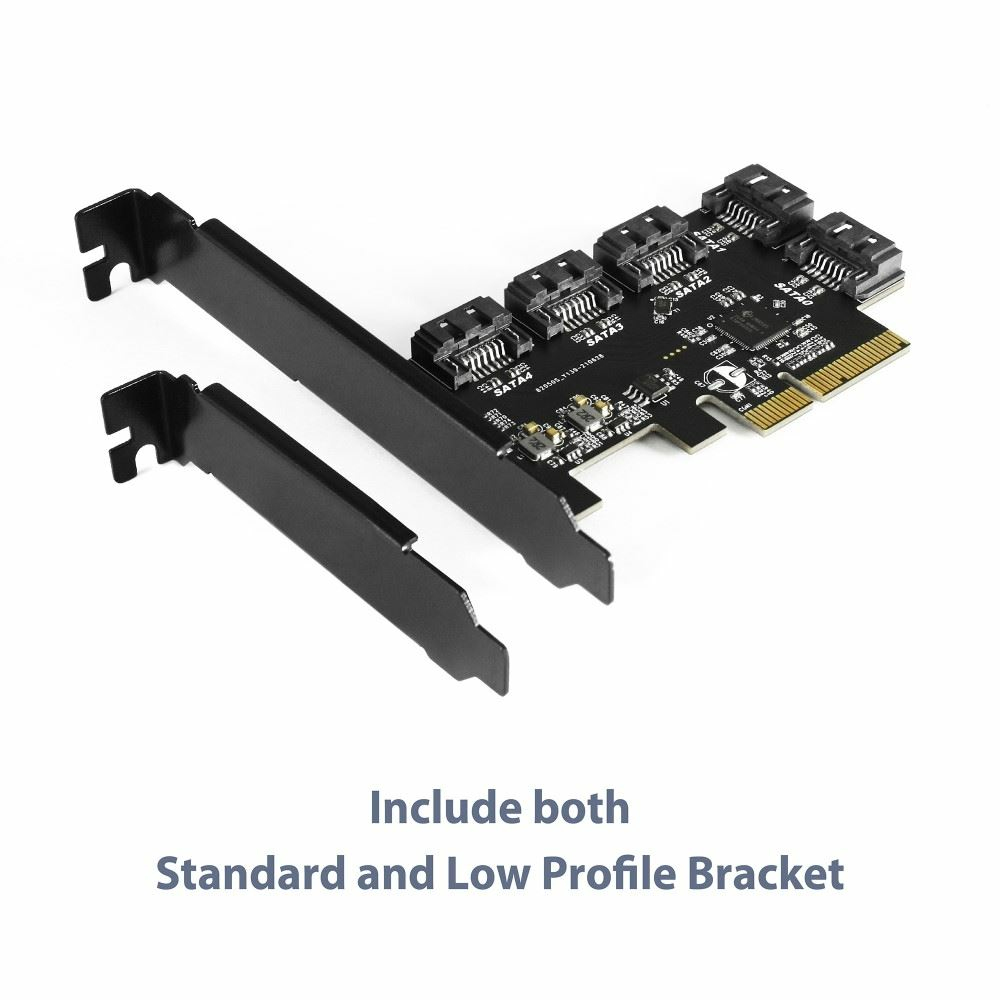

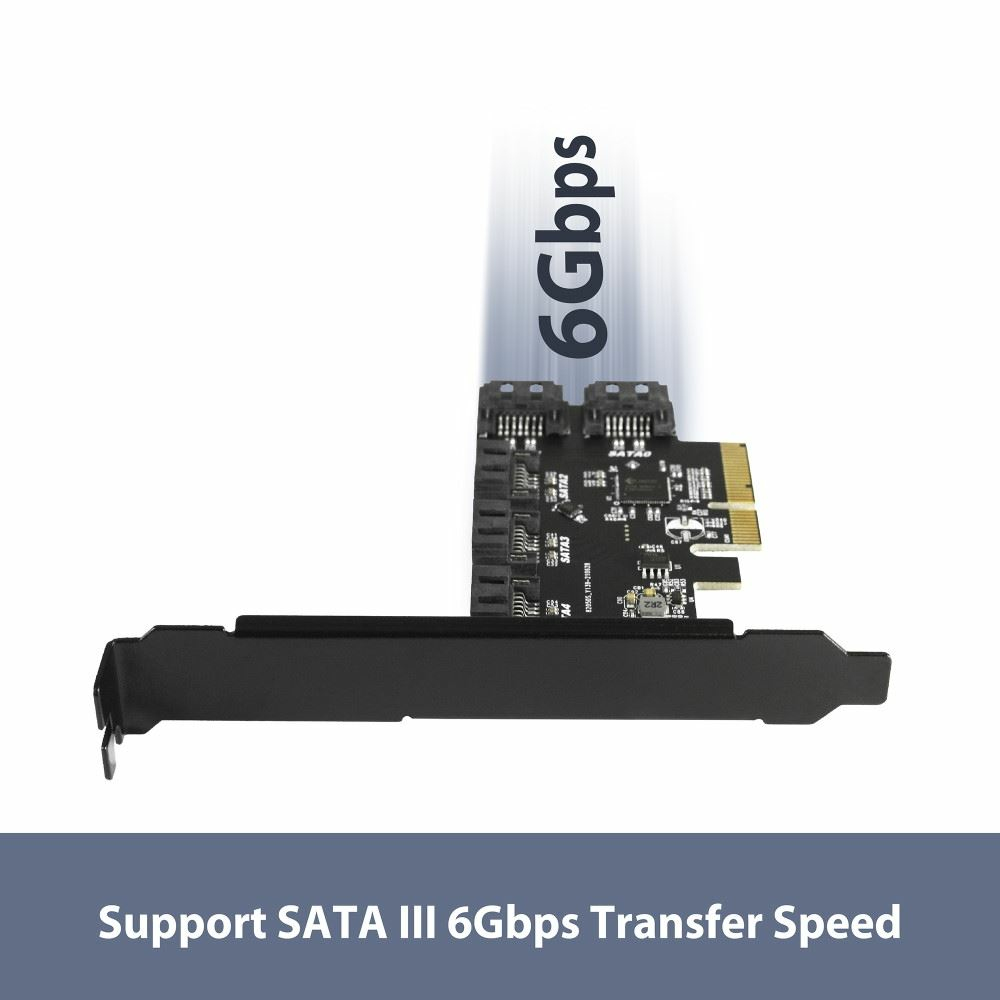

This 5-Ports SATA III 6Gbps PCIe x4 Host card is designed for adding additional SATA III ports to your system. This small card will fit regular and slim or low profile chassis, ideal for any system with a PCIe x4 slot. When installing into Windows 10, not drivers are required, just plug and it is ready to add your drives like SSD, HDD, and Optical Drive*. You can use it for HDD, SSD, Optical drive, and more. The wide PCIe path will allow for a fast transfer speed. It is will support your new system with PCIe v3.0.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Host interface | PCIe |
| Output interface | SATA |

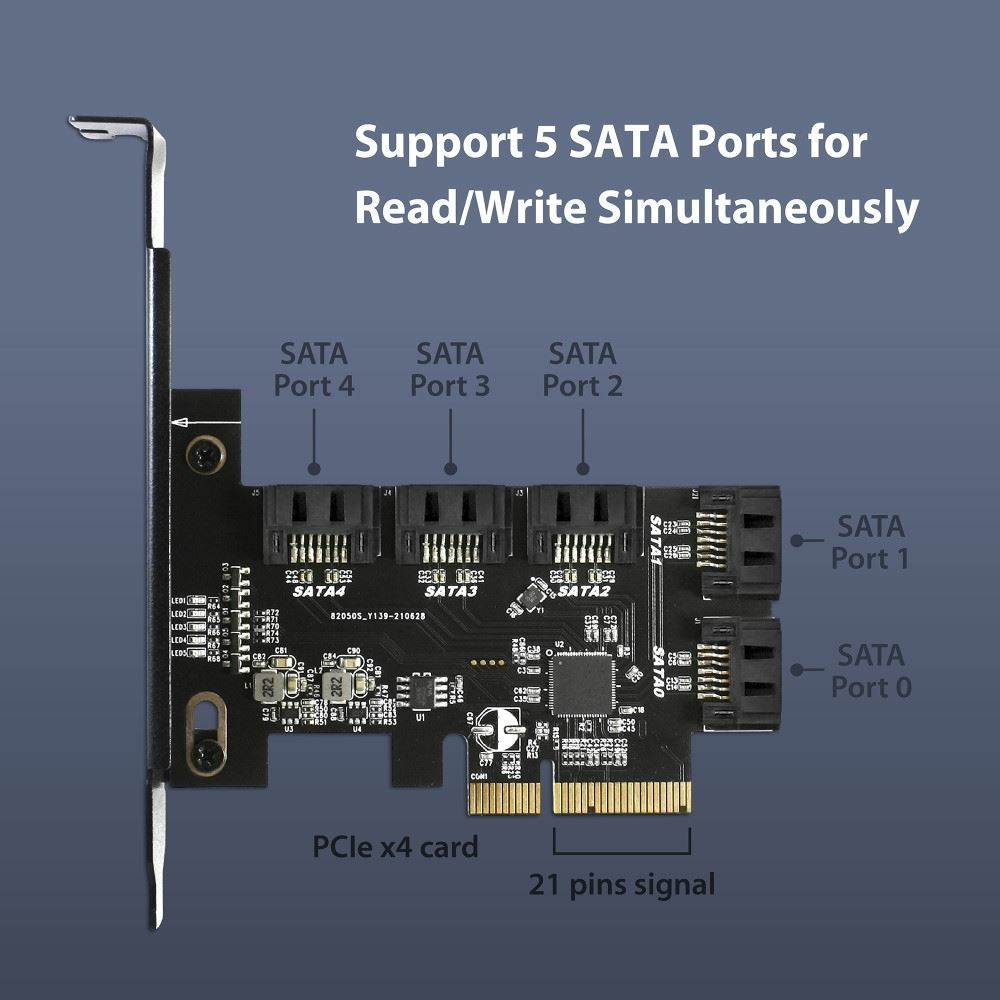

| eSATA ports quantity | 5 |

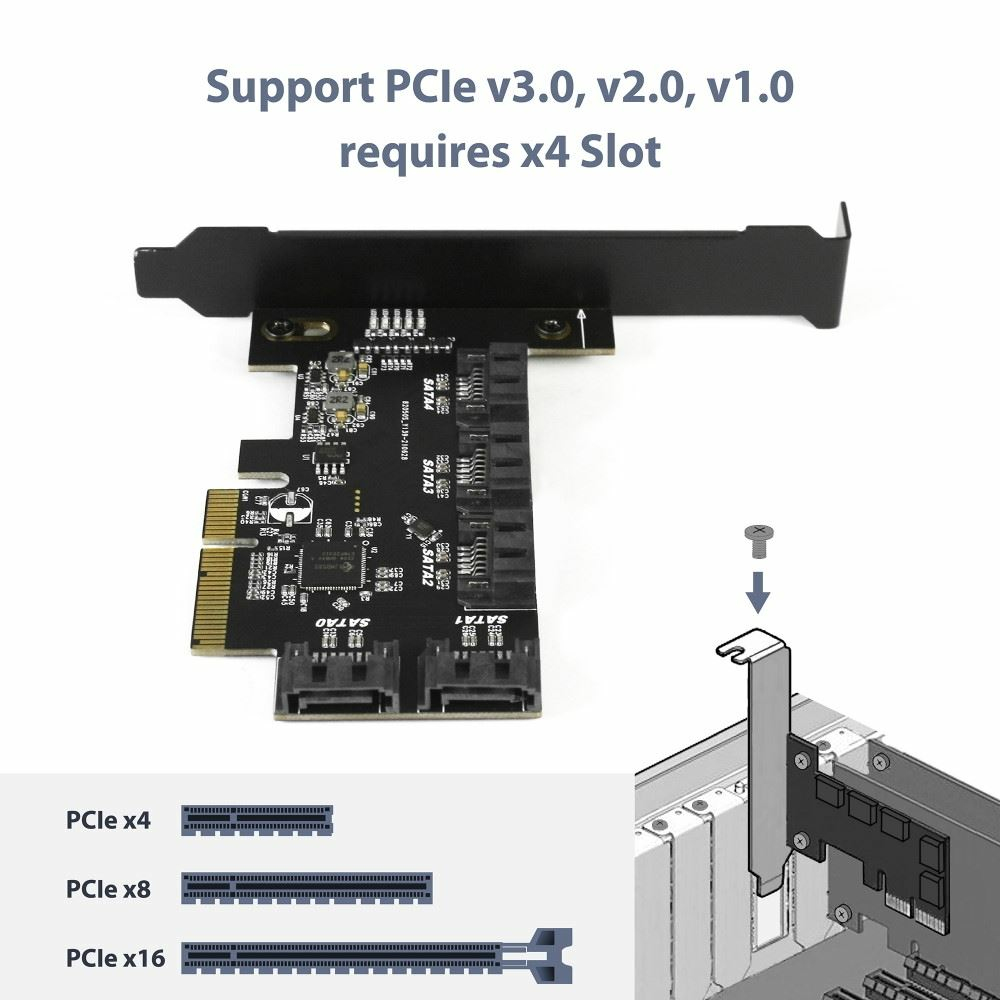

| Expansion card standard | PCIe 3.0 |
| PCI Express slots quantity | 4 |
| Performance | |
| Product colour | Black |
| Design | |
| Internal | Yes |
| Country of origin | Taiwan |
| Easy to install | Yes |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Technical details | |
| Quantity per pack | 1 pc(s) |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Weight & dimensions | |

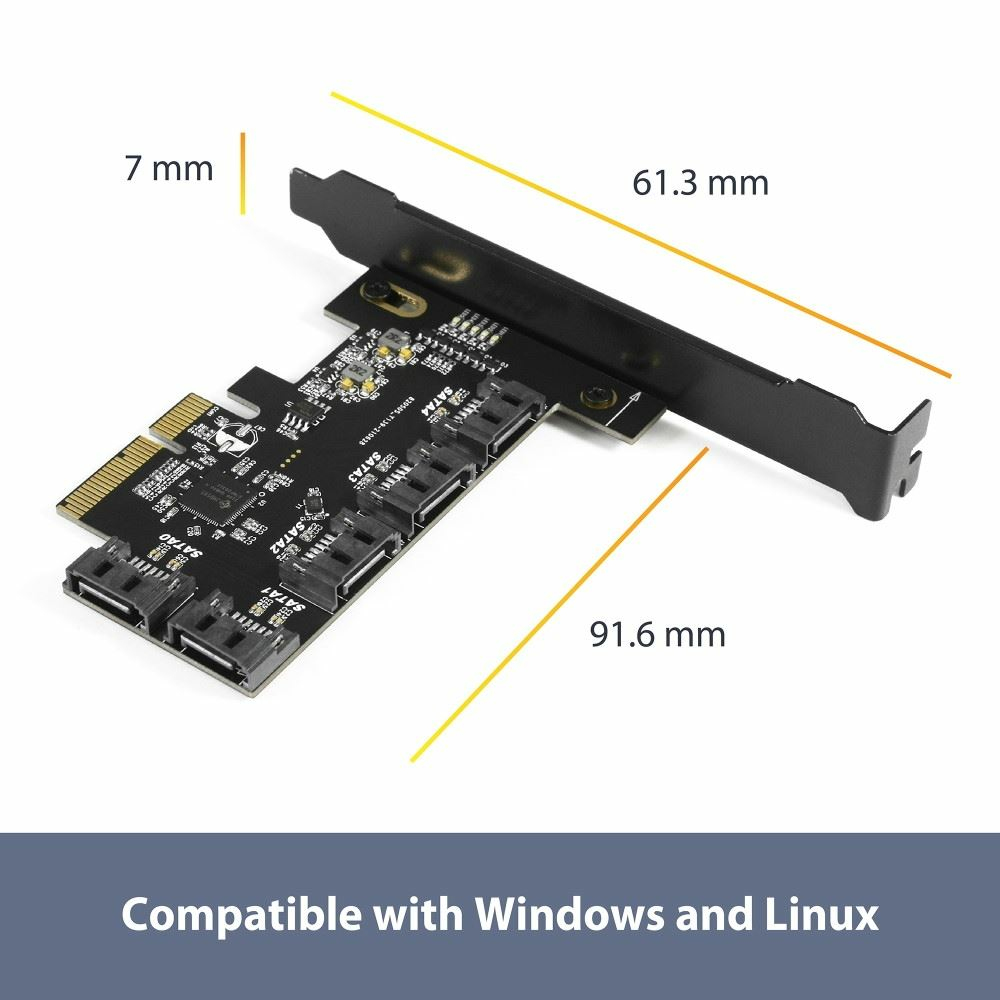

| Width | 3.62" (92 mm) |
| Depth | 2.6" (66 mm) |
| Height | 0.866" (22 mm) |
| Weight | 3.07 oz (87 g) |
| Packaging data | |
| Package type | Box |
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Package type | Box |
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
