iogear GCS1934 KVM switch Black
- Brand: iogear
- Category:
- SKU: GCS1934
- EAN: 0881317514448
4-Port Displayport 1.2 KVMP w / USB 3.1 Gen 1 Hub & Audio, TAA Compliant
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
4Pt Display Pt 1.2 KVMP Switch |
GCS1934CA | |||
|
4K DISPLAYPORT 1.2 KVMP |
9665DL | |||
|
4-PORT 4K DISPLAYPORT KVMP WITH USB 3.1 GEN 1 HUB AND AUDIO (TAA) |
5777233 |
Description
4-Port DisplayPort 1.2 KVMP Switch
Featuring a revolutionary combination of 4K DCI resolution, the next generation USB3.1 hub, and enhanced user-friendly operation, IOGEAR's 4-Port DisplayPort1.2 KVMP Switch provides the latest innovations in DisplayPort KVM technology. Connect your powerhouse computers and experience True 4K resolution while switching between the four computers and sharing two USB peripherals with the push of a button. The 4-Port DisplayPort 1.2 KVMP Switch combines the functionality of a KVM switch with a DisplayPort 1.2 digital interface, built-in USB 3.1 Gen 1 hub, and audio. Control four DisplayPort computers with ease using a single keyboard, mouse, and DisplayPort monitor. Expand your USB 3.0 peripherals connectivity with faster data transfer rate and eliminate redundant hardware.
Featuring a revolutionary combination of 4K DCI resolution, the next generation USB3.1 hub, and enhanced user-friendly operation, IOGEAR's 4-Port DisplayPort1.2 KVMP Switch provides the latest innovations in DisplayPort KVM technology. Connect your powerhouse computers and experience True 4K resolution while switching between the four computers and sharing two USB peripherals with the push of a button. The 4-Port DisplayPort 1.2 KVMP Switch combines the functionality of a KVM switch with a DisplayPort 1.2 digital interface, built-in USB 3.1 Gen 1 hub, and audio. Control four DisplayPort computers with ease using a single keyboard, mouse, and DisplayPort monitor. Expand your USB 3.0 peripherals connectivity with faster data transfer rate and eliminate redundant hardware.
Specifications
| Performance | |
|---|---|
| HDCP | Yes |
| Hot-Plug support | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Scan interval | 1,99 s |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Number of microphone inputs | 6 |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| DisplayPorts quantity | 5 |
| Headphone outputs | 6 |
| HDCP | Yes |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone,3.5mm mic,DisplayPort,USB A |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Networking | |
| Ethernet LAN | No |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | Yes |
| Certification | TAA |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| Power | |
| Output voltage | 5.3 V |
| External power adapter | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Technical details | |
| USB hub | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 10.2" (260.3 mm) |
| Depth | 1.69" (42.9 mm) |
| Height | 2.94" (74.7 mm) |
| Weight | 30.3 oz (859 g) |
| Package width | 12.8" (325 mm) |
| Package depth | 4" (101.6 mm) |
| Package height | 8.27" (210 mm) |
| Package weight | 5.45 lbs (2.47 kg) |
| Packaging data | |
| Package width | 12.8" (325 mm) |
| Package depth | 4" (101.6 mm) |
| Package height | 8.27" (210 mm) |
| Package weight | 5.45 lbs (2.47 kg) |
| Packaging content | |

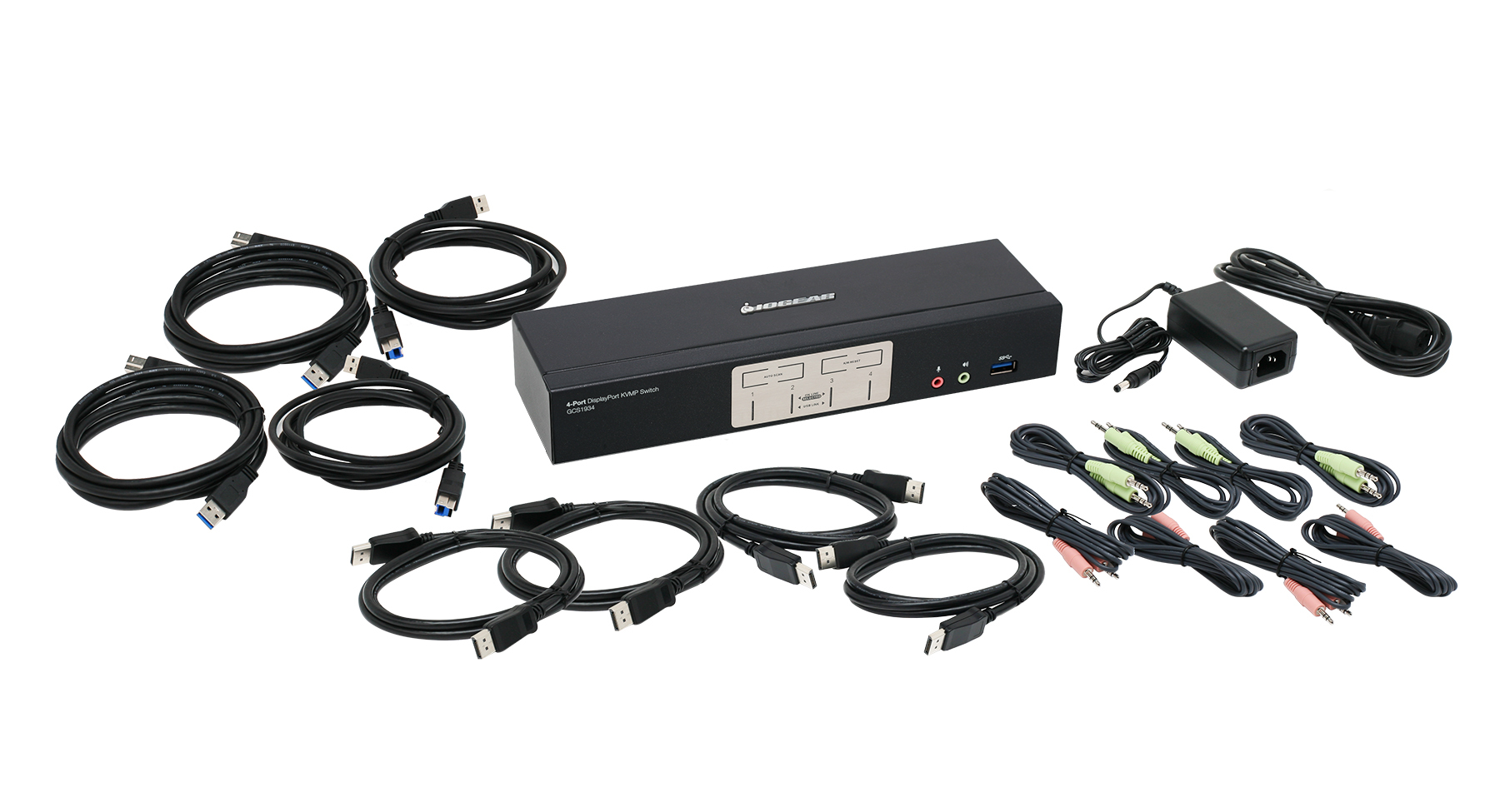

| Cables included | Audio (3.5mm),DisplayPort,USB |
| Manual | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | TAA |
