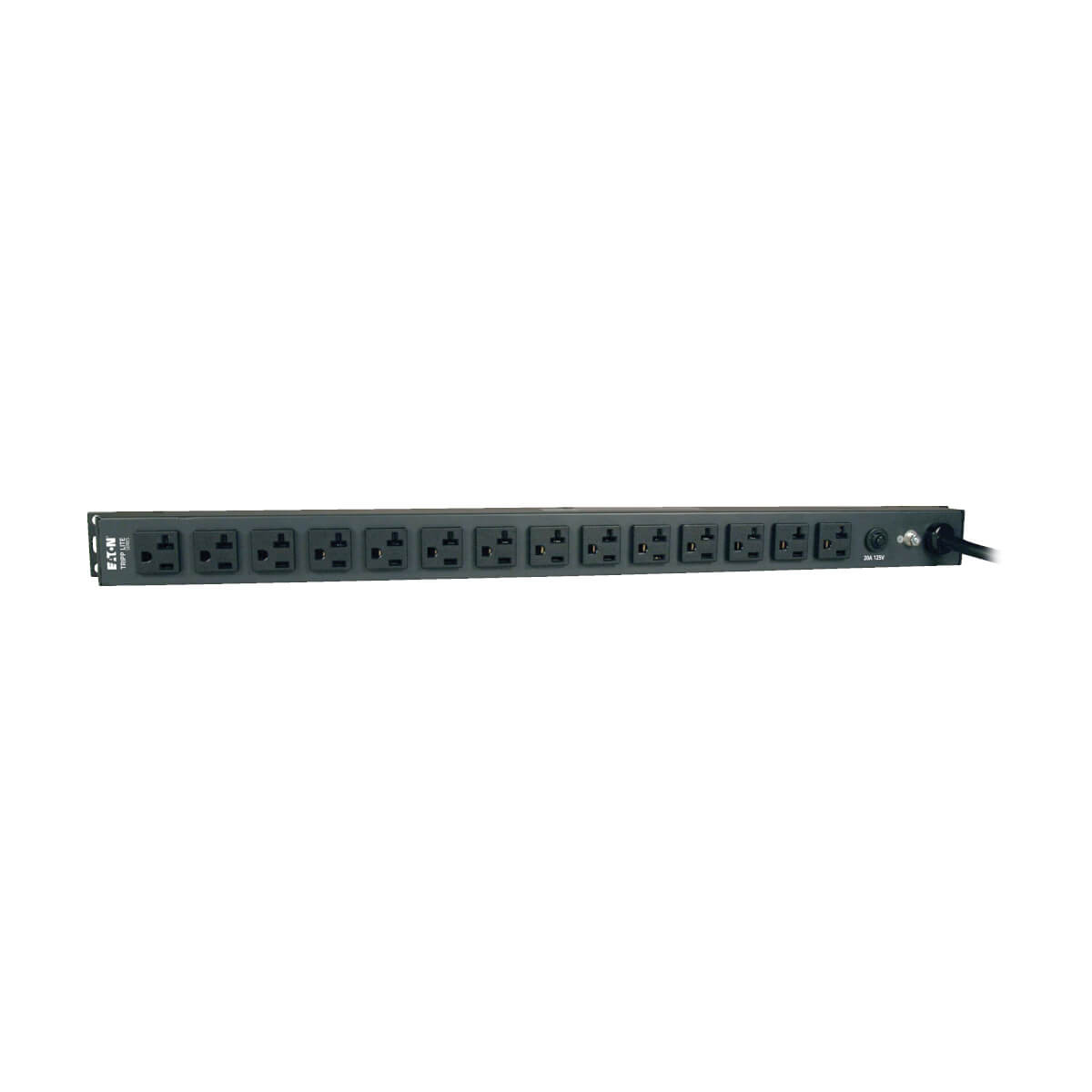

Tripp Lite PDU1420T power distribution unit (PDU) 14 AC outlet(s) 0U Black

Tripp Lite PDU1420T power distribution unit (PDU) 14 AC outlet(s) 0U Black

2.4kW Single-Phase Basic PDU, 120V Outlets (14 5-15/20R), L5-20P, 15ft Cord, 0U Vertical

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro SINGLE-PHASE BASIC PDU 120V 20A 25748V Register free see stock
Synnex 2.4kW Single-Phase 120V Basic PDU, 14 NEMA 5-15/20R Outlets, NEMA L5-20P Input, 4097570

Related Products

Description

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 20A single phase 120V Basic Power Distribution Unit / PDU
- Attached NEMA L5-20P 20A 120V input plug with 15 ft. / 4.5m line cord
- 0U, 24 in. / 61cm vertical form factor supports installation in 2 or 4 post equipment racks
- Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications

Specifications

Design
PDU typesBasic
MountingVertical
Product colourBlack
CertificationUL60950-1 (USA) & CAN/CSA C22.2 No. 60950-1-03 (Canada)
Rack capacity0U
Housing materialMetal
Ports & interfaces
Power plugNEMA L5-20P
AC outlets quantity14 AC outlet(s)
AC outlet typesNEMA 5–15R, NEMA 5–20R
Features
Cable length179.9" (4.57 m)
CertificationUL60950-1 (USA) & CAN/CSA C22.2 No. 60950-1-03 (Canada)
Ergonomics
Cable length179.9" (4.57 m)
Power
Nominal input voltage100-127 V
Maximum current20 A
Nominal output voltage100-127 V
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)24 x 2.24 x 1.75" (610 x 57 x 44.5 mm)
Weight5.6 lbs (2.54 kg)
Width25.7" (654 mm)
Depth2.25" (57.2 mm)
Height1.75" (44.4 mm)
Package width2.4" (61 mm)
Package depth5.8" (147.3 mm)
Package height27.7" (703.6 mm)
Package weight6.59 lbs (2.99 kg)
Packaging data
Package width2.4" (61 mm)
Package depth5.8" (147.3 mm)
Package height27.7" (703.6 mm)
Package weight6.59 lbs (2.99 kg)
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificatesRoHS
Master (outer) case GTIN (EAN/UPC)10037332122251
Compliance certificatesRoHS
Logistics data
Master (outer) case width6.5" (165.1 mm)
Master (outer) case length14.2" (360.7 mm)
Master (outer) case height28.5" (723.9 mm)
Master (outer) case gross weight40.6 lbs (18.4 kg)
Products per master (outer) case6 pc(s)
Country of originChina
