Tripp Lite PDUMH15 power distribution unit (PDU) 13 AC outlet(s) 1U Black

Tripp Lite PDUMH15 power distribution unit (PDU) 13 AC outlet(s) 1U Black

  • Brand: Tripp Lite
  • Category:
  • SKU: PDUMH15
  • EAN: 0037332132529 0611101540663 09 ...1540663 0956257958369 0611101607984 0763615950244 0373321325290 0971475304842more
1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V Input, 15ft Cord, 1U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
BlueStar TRIPP LITE, POWER DISTRIBUTION UNIT 120V 15AMPS PDUMH15 Register free see stock
D&H Digital PDU 13 NEMA5-15R 15A PDUMH15CN
Ingram Micro PDUMH15 PDU METERED 120V 15A 13 42971F
Synnex 1.4kW Single-Phase Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V Input, 4168696

Related Products

Description

Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
- Built-in 2 digit visual meter continuously reports PDU load level in amps

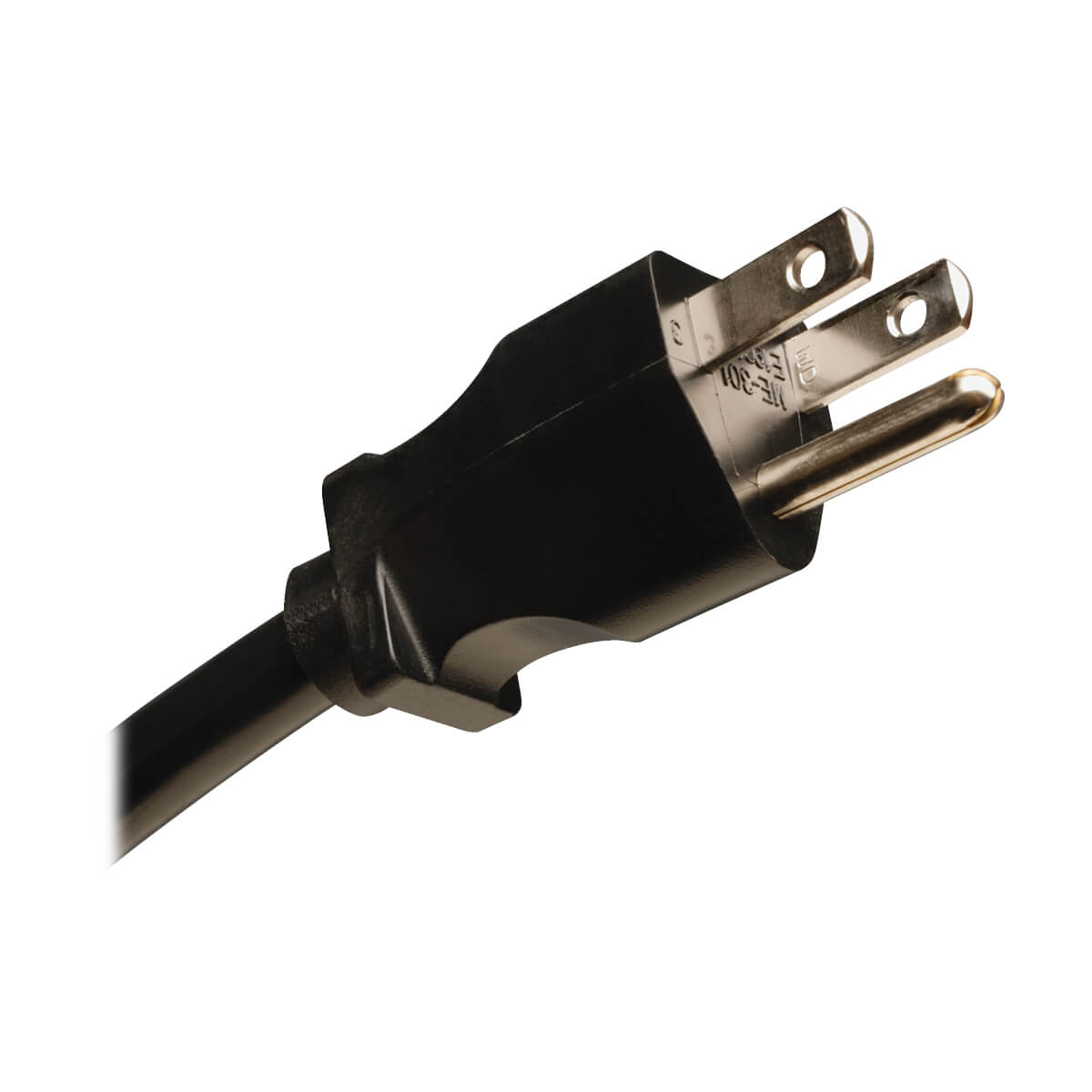

- Attached NEMA 5-15P 15A 120V input plug with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space

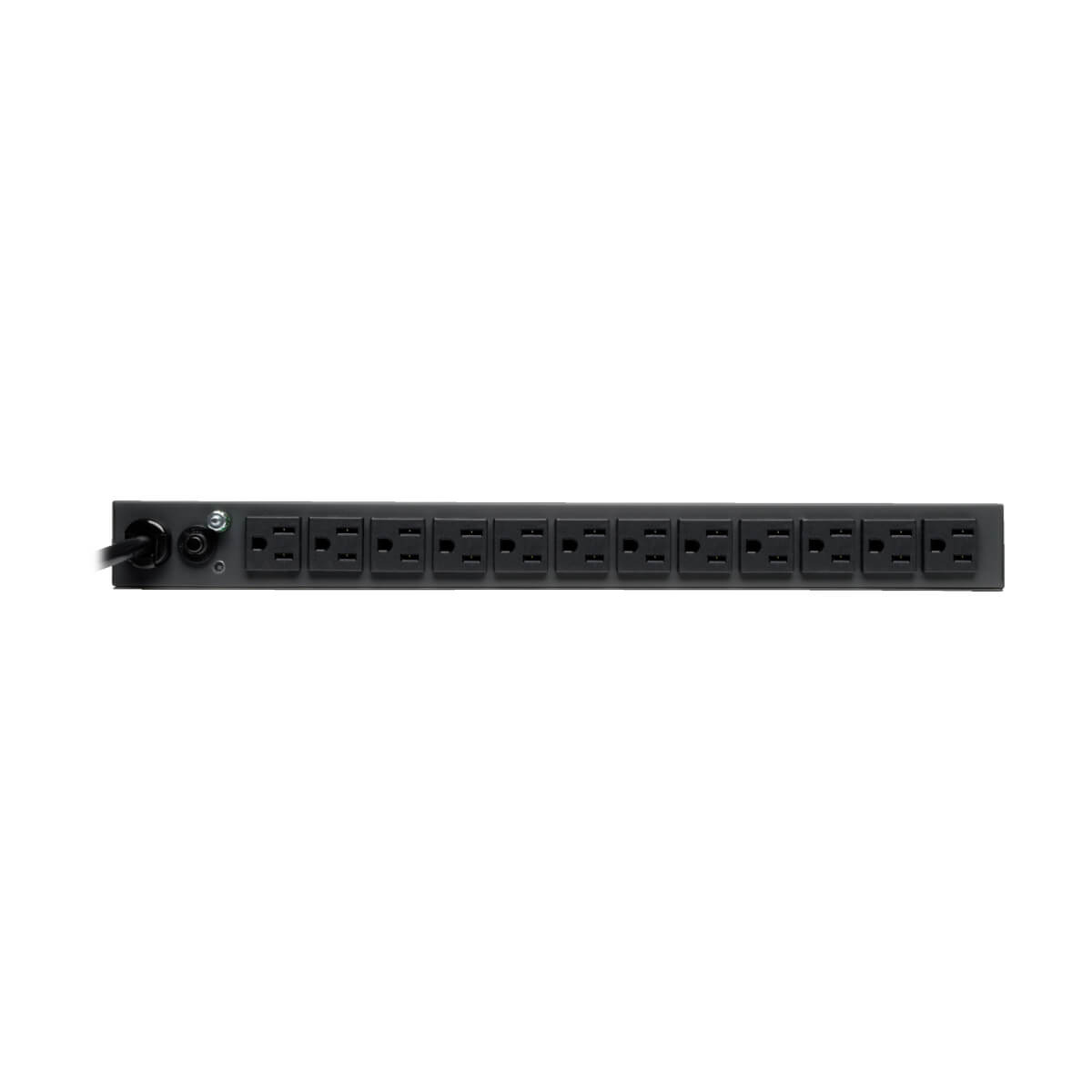

- 13 NEMA 5-15R outlets (1 front facing / 12 rear)
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
- Back panel grounding lug

Specifications

Design
PDU typesMetered
MountingHorizontal
Product colourBlack
CertificationUL60950-1/CAN/CSA C22.2 No. 60950-1-03
Rack capacity1U
Housing materialMetal
Ports & interfaces
Power plugNEMA 5–15P
AC outlets quantity13 AC outlet(s)
AC outlet typesNEMA 5–15R
Features
Cable length179.9" (4.57 m)
CertificationUL60950-1/CAN/CSA C22.2 No. 60950-1-03
Ergonomics
Cable length179.9" (4.57 m)
Power
Nominal input voltage100-127 V
Maximum current15 A
Nominal output voltage100-127 V
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)17.5 x 4.5 x 1.75" (444.5 x 114.3 x 44.5 mm)
Weight4.61 lbs (2.09 kg)
Weight (imperial)4.5 lbs
Width20" (508 mm)
Depth4.5" (114.3 mm)
Height2" (50.8 mm)
Package width20.5" (520.7 mm)
Package depth9.5" (241.3 mm)
Package height2" (50.8 mm)
Package weight5.29 lbs (2.4 kg)
Packaging data
Package width20.5" (520.7 mm)
Package depth9.5" (241.3 mm)
Package height2" (50.8 mm)
Package weight5.29 lbs (2.4 kg)
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificatesRoHS
Master (outer) case GTIN (EAN/UPC)10037332132526
Compliance certificatesRoHS
Logistics data
Master (outer) case width14.1" (358.1 mm)
Master (outer) case length20.7" (525.8 mm)
Master (outer) case height10.2" (259.1 mm)
Master (outer) case gross weight32.4 lbs (14.7 kg)
Products per master (outer) case6 pc(s)
Country of originChina
