Tripp Lite PDUH20HVL6 power distribution unit (PDU) 14 AC outlet(s) 1U Black

Tripp Lite PDUH20HVL6 power distribution unit (PDU) 14 AC outlet(s) 1U Black

3.3/3.8kW Single-Phase Basic PDU, 208/240V 20A (2 C19, 12 C13), L6-20P, 208/240V Input, 15ft Cord, 1U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
ASI Tripp Lite PDU PDUH20HVL6 1U 100-240V Single Phase Rackmount C19&C13 L6-20P 208395 Register free see stock
BlueStar TRIPP LITE, 3.3/3.8KW SINGLE-PHASE BASIC PDU, 208/240V 20A (2 C19, 12 C13), L6-20P, 208/240V INPUT, 15FT CORD, 1U RACK-MOUNT PDUH20HVL6
Ingram Micro PDUH20HVL6 BASIC PDU 208/240V 25478R
Synnex 3.3/3.8kW Single-Phase 208/240V Basic PDU, 14 Outlets (12 C13 & 2 C19), NEMA L6- 4697826

Related Products

Description

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution for critical IT equipment in wiring closets, server rooms and equipment racks. Supplies continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 20A single phase 208/240V Basic Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
- Attached NEMA L6-20P input with 15 ft. / 4.5m line cord
- 1U horizontal rackmount format installs in one rack space

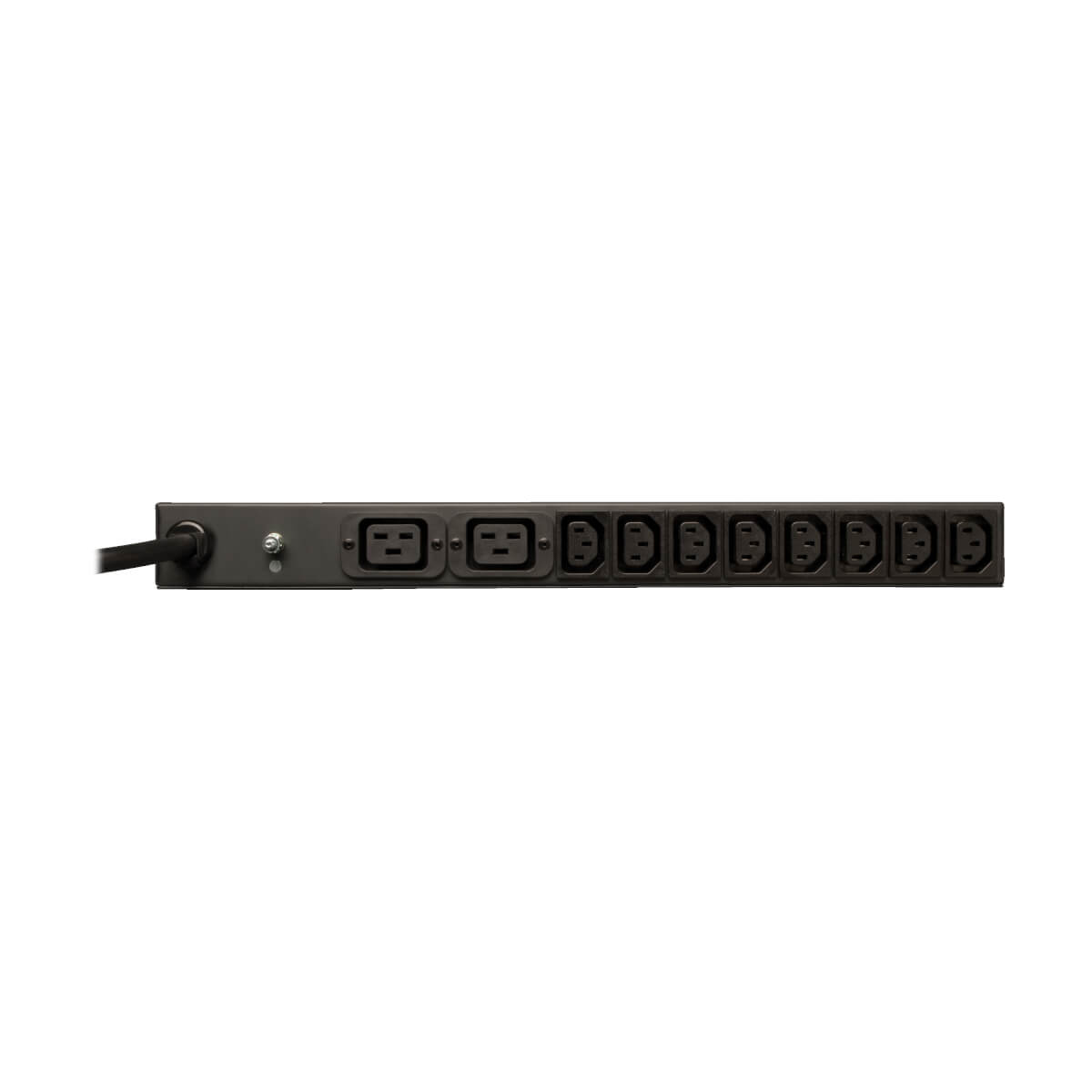

- 14 outlets (2 C19, 12 C13)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Mounting ears are reversible for front or rear facing rackmount installation
- Back panel grounding lug

Specifications

Design
PDU typesBasic
MountingHorizontal
Product colourBlack
CertificationUL 60950 (USA), CSA (Canada)
Rack capacity1U
Housing materialMetal
Ports & interfaces
Power plugNEMA L6-20P
AC outlets quantity14 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Features
LED indicatorsYes
Cable length177.2" (4.5 m)
CertificationUL 60950 (USA), CSA (Canada)
Ergonomics
LED indicatorsYes
Cable length177.2" (4.5 m)
Power
Nominal input voltage200-240 V
Maximum current20 A
Nominal output voltage200-240 V
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)17.2 x 3.74 x 1.75" (438 x 95 x 44.5 mm)
Weight5.27 lbs (2.39 kg)
Width17.3" (438.2 mm)
Depth3.75" (95.2 mm)
Height1.75" (44.4 mm)
Package width2.25" (57.2 mm)
Package depth20.3" (514.4 mm)
Package height11" (279.4 mm)
Package weight5.91 lbs (2.68 kg)
Packaging data
Package width2.25" (57.2 mm)
Package depth20.3" (514.4 mm)
Package height11" (279.4 mm)
Package weight5.91 lbs (2.68 kg)
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificatesRoHS
Master (outer) case GTIN (EAN/UPC)10037332158977
Compliance certificatesRoHS
Logistics data
Master (outer) case width20.7" (525.8 mm)
Master (outer) case length14.1" (358.1 mm)
Master (outer) case height11.9" (302.3 mm)
Master (outer) case gross weight37.5 lbs (17 kg)
Products per master (outer) case6 pc(s)
Country of originChina
