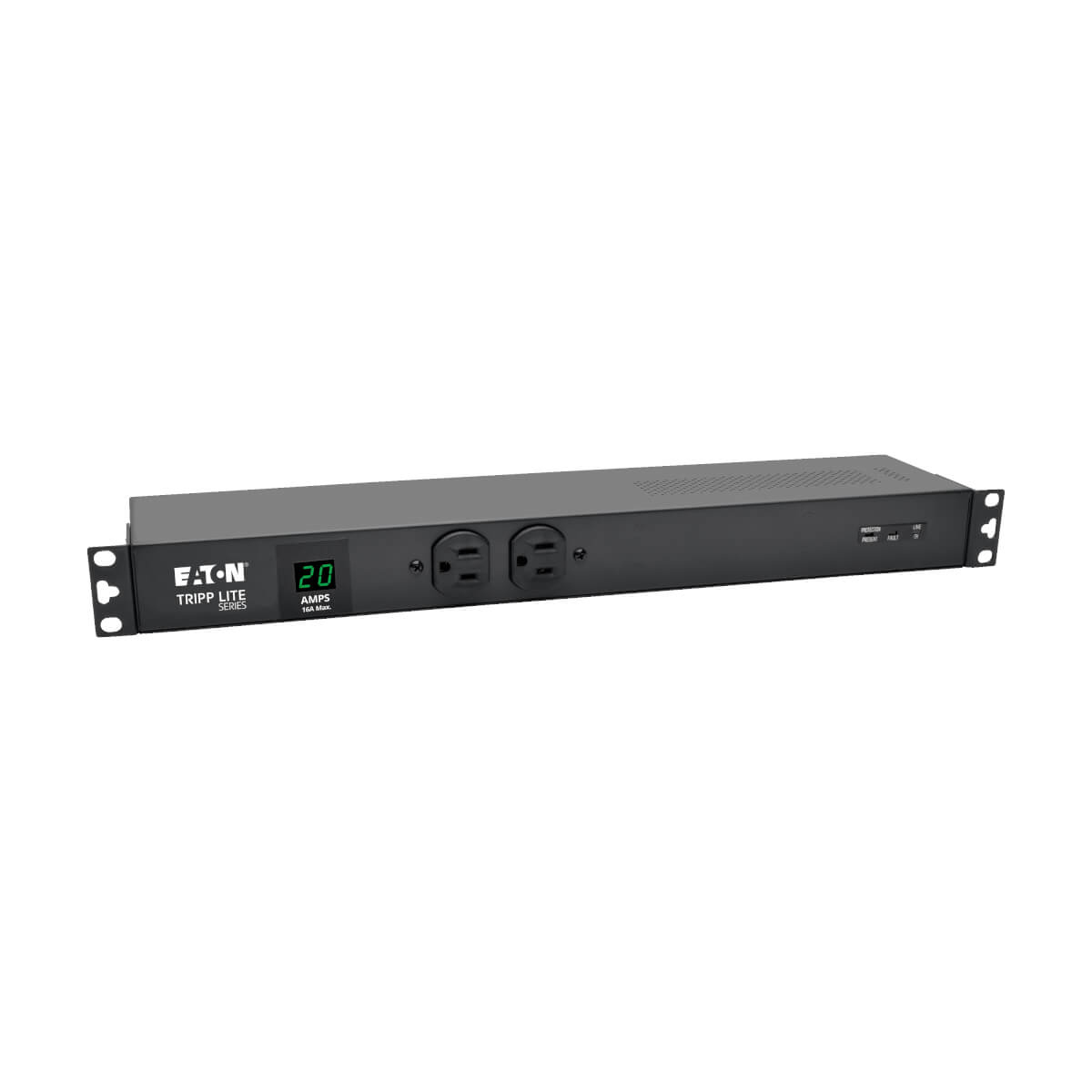

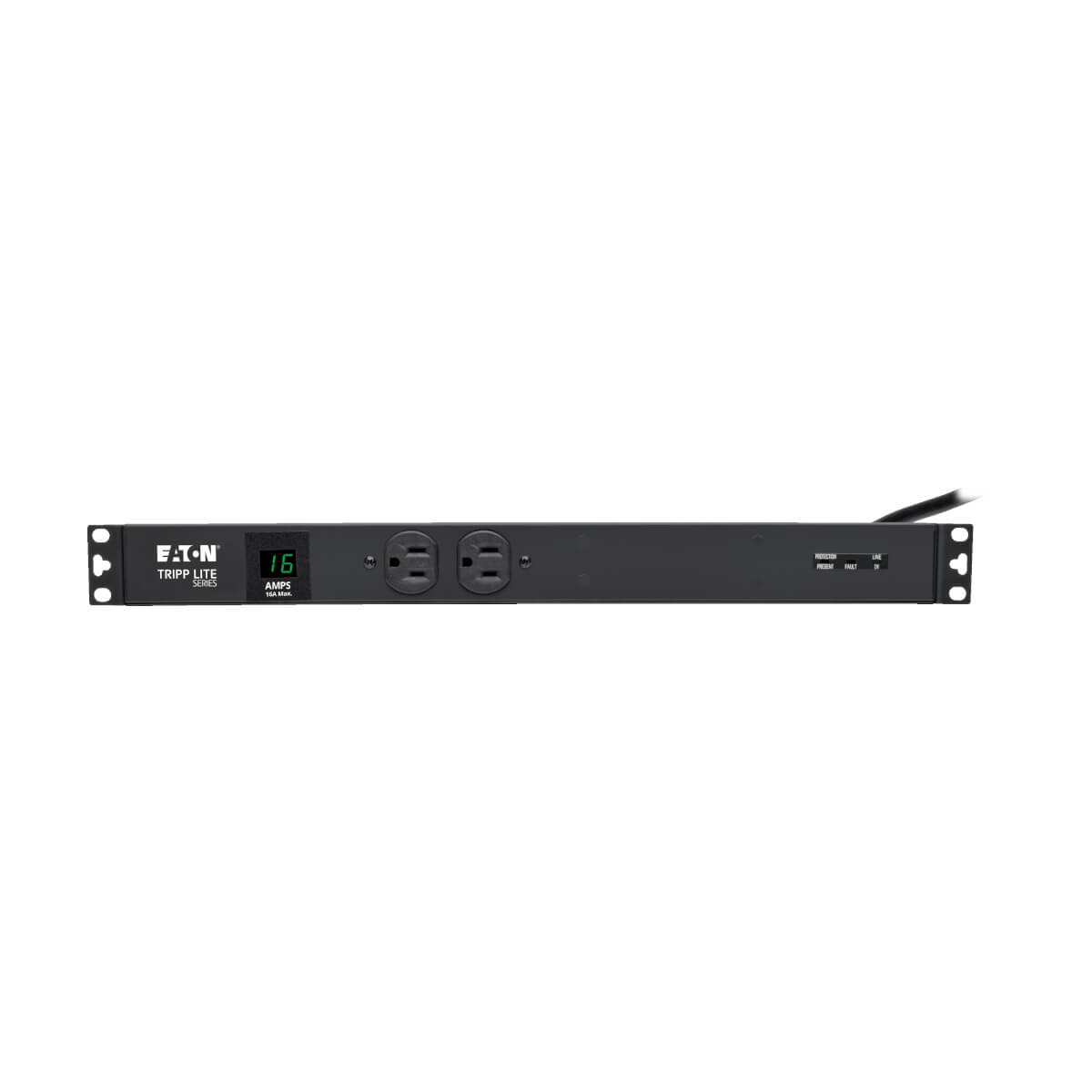

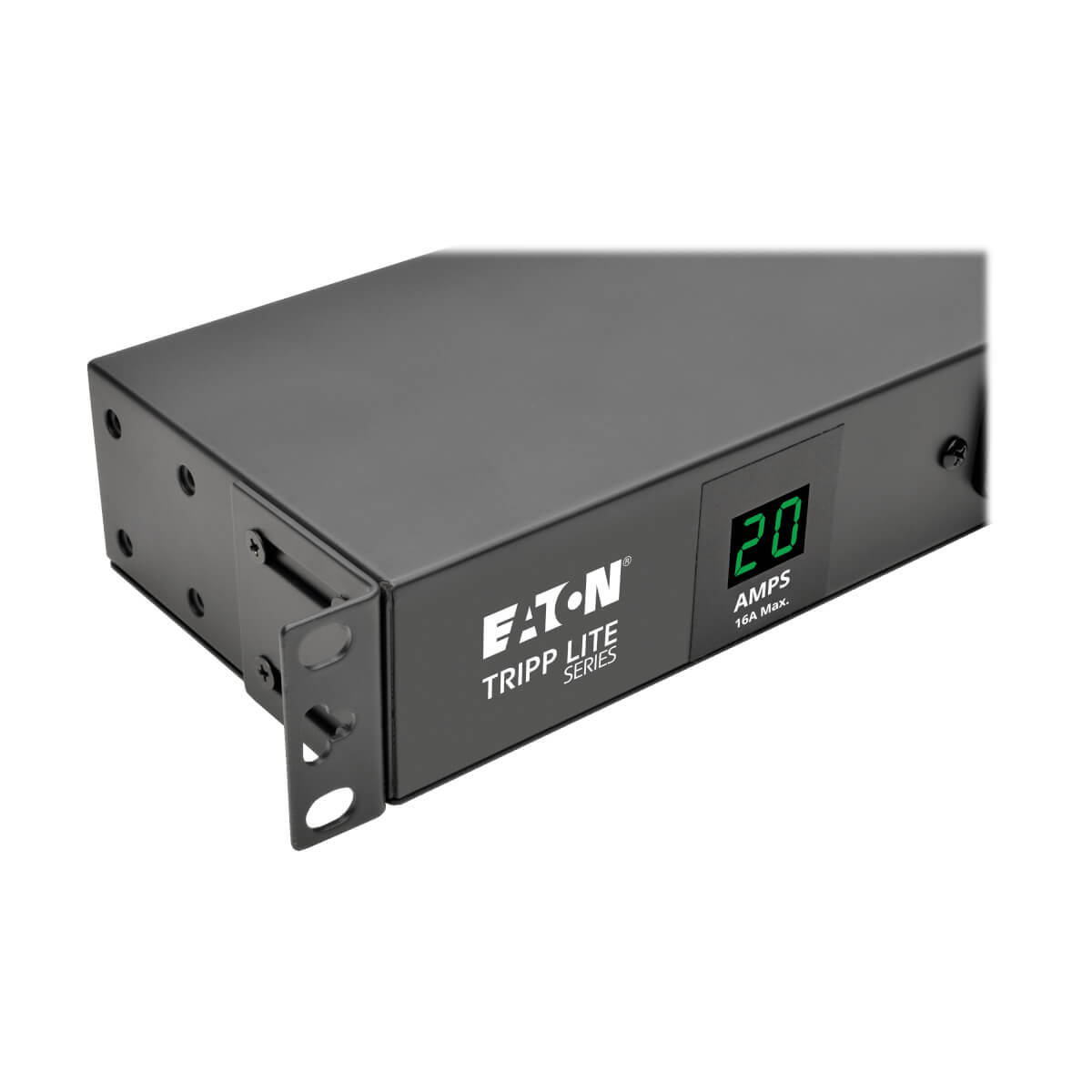

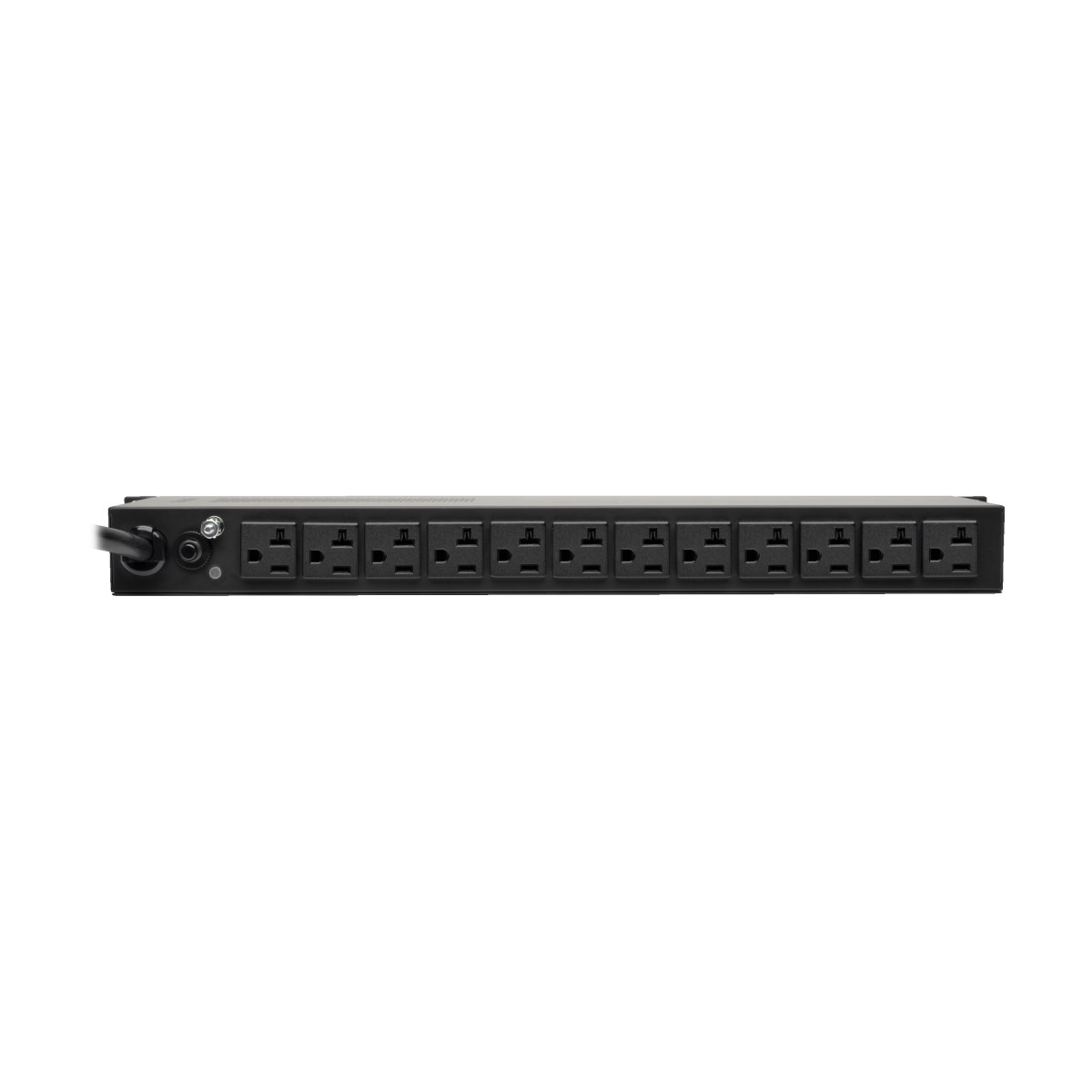

Tripp Lite PDUMH20-ISO power distribution unit (PDU) 14 AC outlet(s) 1U Black

Tripp Lite PDUMH20-ISO power distribution unit (PDU) 14 AC outlet(s) 1U Black

Metered PDU & Isobar Surge Suppression, 1.92kW, 3840 Joules, 120V, 12 x 5-20R & 2 x 5-15R Out, 1U

Trade Prices

Distributor Product SKU Stock Updated Price
D&H

PDU Isobar Surge 1U

 PDUMH20ISOCA Register free see stock
Ingram Micro

METTERED PDU+ISOBAR SURGE 120V

 42164Y
Synnex

series 2kW Single-Phase Local Metered PDU + ISOBAR Surge Suppression,

 5429534

Related Products

Description

Tripp Lite Metered PDU / Power Distribution Unit with Isobar Surge Suppression offers real-time local reporting of load level in amps, plus premium ISOBAR network-grade AC surge and noise suppression. Digital display continuously reports PDU output current to prevent circuit overloads as additional equipment is added. Set of 3 front-panel LEDs provide notification of wiring fault, protection present and line OK status. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Specifications

Design
PDU typesMetered
MountingHorizontal
DisplayLED
Product colourBlack
CertificationUL1449 CSA
Rack capacity1U
Housing materialMetal
Ports & interfaces
Power plugNEMA 5–20P
AC outlets quantity14 AC outlet(s)
AC outlet typesNEMA 5–15R, NEMA 5–20R
Features
LED indicatorsYes
Cable length179.9" (4.57 m)
CertificationUL1449 CSA
Ergonomics
DisplayLED
LED indicatorsYes
Cable length179.9" (4.57 m)
Power
Nominal input voltage100-127 V
Maximum current20 A
Nominal output voltage100-127 V
Weight & dimensions
Dimensions (WxDxH)17.5 x 4.5 x 1.75" (444.5 x 114.3 x 44.5 mm)
Weight4.61 lbs (2.09 kg)
Width17.5" (444.5 mm)
Depth4.5" (114.3 mm)
Height1.75" (44.5 mm)
Package width20.5" (520.7 mm)
Package depth10" (254 mm)
Package height2.25" (57.2 mm)
Package weight7.1 lbs (3.22 kg)
Package dimensions (WxDxH)20.5 x 10 x 2.25" (520.7 x 254 x 57.2 mm)
Packaging data
Package width20.5" (520.7 mm)
Package depth10" (254 mm)
Package height2.25" (57.2 mm)
Package weight7.1 lbs (3.22 kg)
Package dimensions (WxDxH)20.5 x 10 x 2.25" (520.7 x 254 x 57.2 mm)
Operational conditions
Operating temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)5 - 95%
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Master (outer) case GTIN (EAN/UPC)10037332185706
Compliance certificatesRoHS
Logistics data
Master (outer) case width20.7" (527 mm)
Master (outer) case length13.7" (349.2 mm)
Master (outer) case height9.75" (247.6 mm)
Master (outer) case gross weight22.3 lbs (10.1 kg)
Products per master (outer) case6 pc(s)
Country of originChina
