Tripp Lite PDUB201U power distribution unit (PDU) 6 AC outlet(s) 1U Black

Tripp Lite PDUB201U power distribution unit (PDU) 6 AC outlet(s) 1U Black

100-125V 16A Single-Phase Hot-Swap PDU with Manual Bypass - 6 NEMA 5-20R Outlets, 2 5-20P Inputs, 1U Rack/Wall

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro PDU WITH MANUAL BYPASS 15A 6 643A2K Register free see stock
Synnex PDU WITH MANUAL BYPASS 15A 6 5-20R 1URM 6727101

Related Products

Description

Bypass PDU Recommended for Maintaining Continuous Power During UPS Maintenance
Keeping mission-critical data center equipment operating at its optimal level often means scheduled
maintenance. But what if you are unable to afford the costly downtime involved in powering down for
regular upkeep? This 120V 20A single-phase hot-swap PDU works in conjunction with your UPS system
to keep everything running 24/7/365. It allows you to manually transfer connected equipment to utility
power via the PDU’s bypass switch, permitting maintenance or equipment replacement with no
interruption of performance.

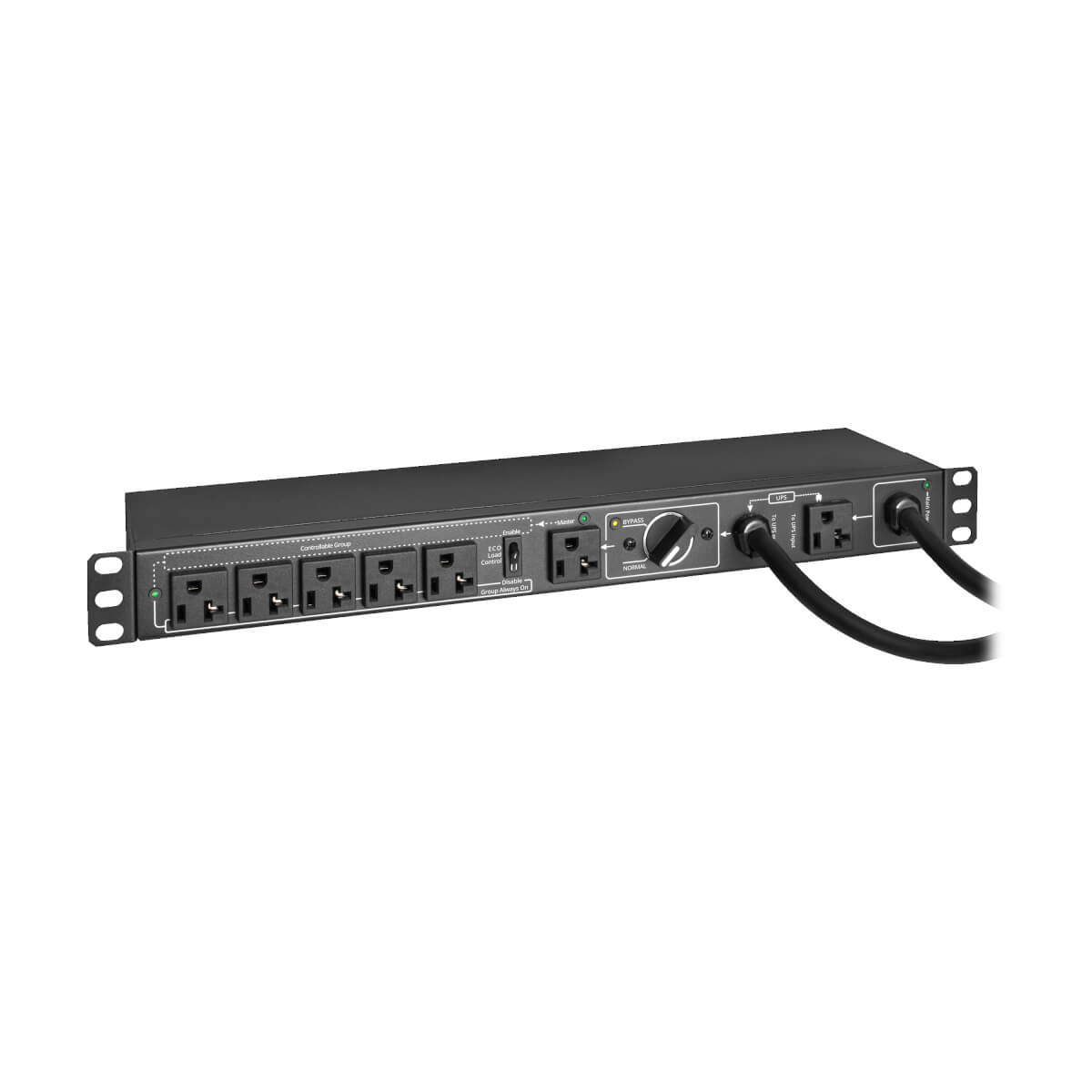

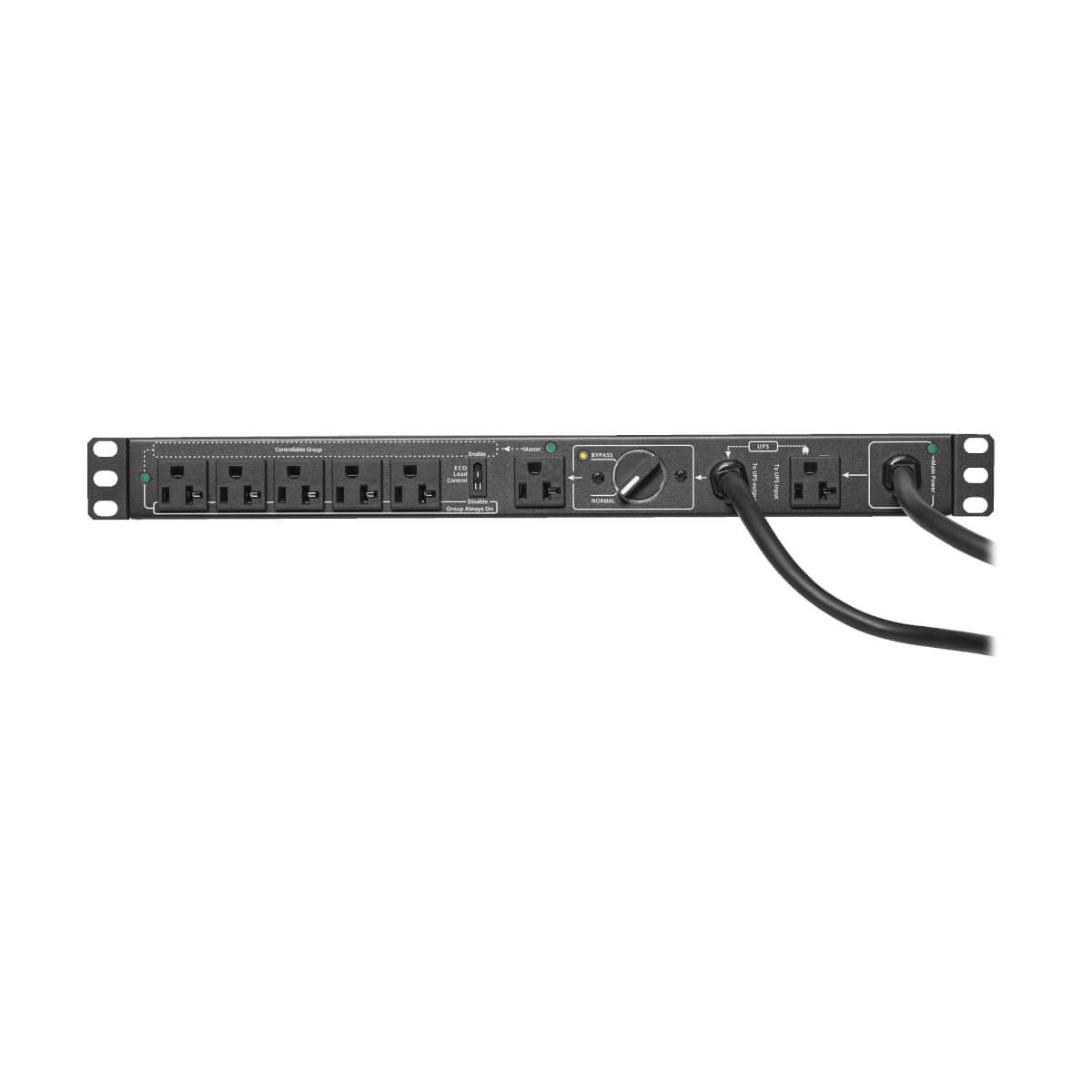

Features Dual Inputs and a Manual Transfer Switch for Uninterrupted Operation

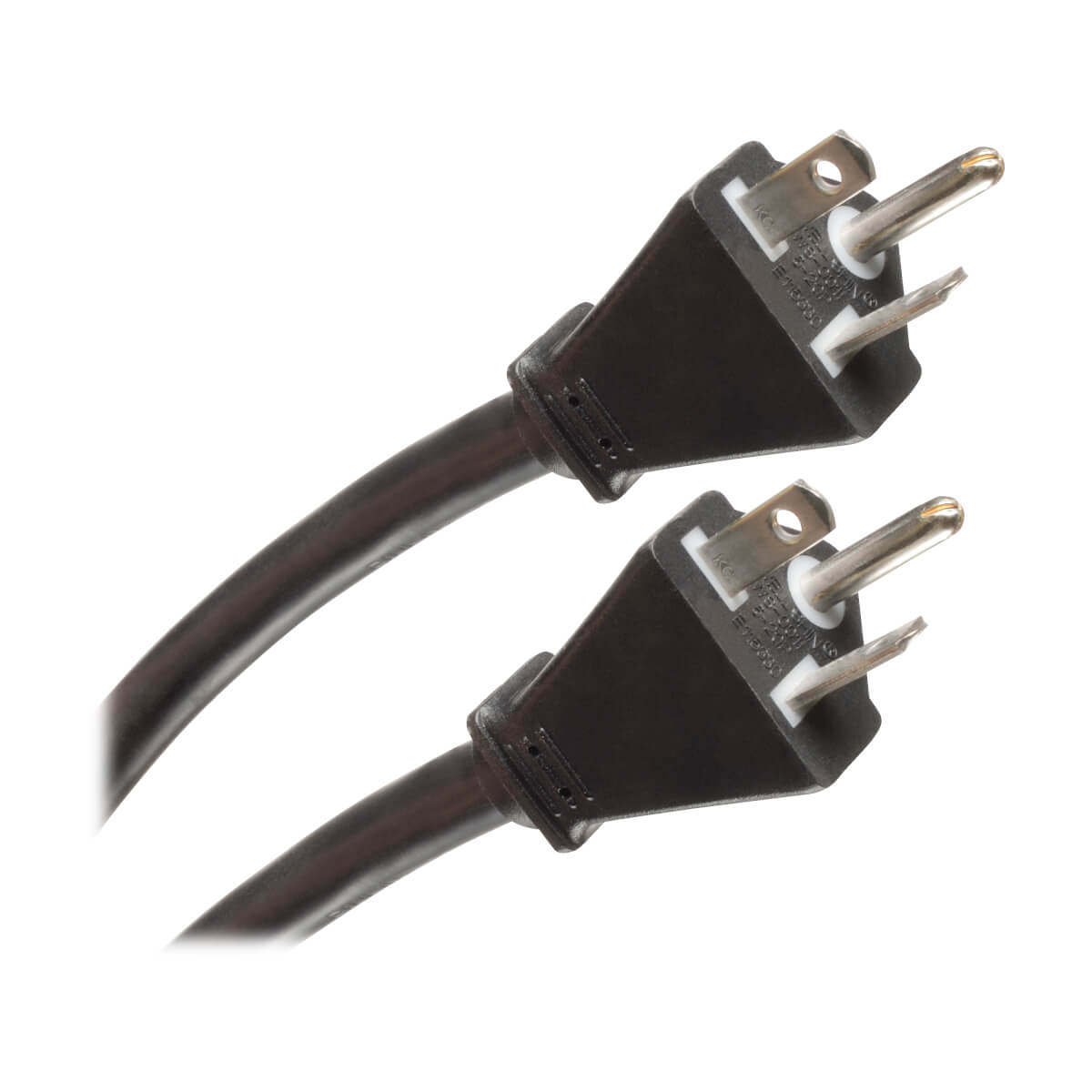

The PDUB201U includes separate UPS and utility input cables with NEMA 5-20P plugs. The manual
transfer switch allows PDU output power to flow from either input. Flip the switch to Bypass to replace the
UPS and flip back to Normal once the maintenance or UPS replacement is complete. Equipment
connected to the six NEMA 5-20R outlets will continue to operate without interruption.

Optional ECO Switching Feature Enables Cost-Cutting Power Savings
By enabling the ECO power saving feature, you can power off a single bank of five controlled 5-20R
outlets all at once when the device connected to the master 5-20R outlet is powered off or goes into a lowpower consumption mode.

Mounts into 1U of Rack Space or Wall

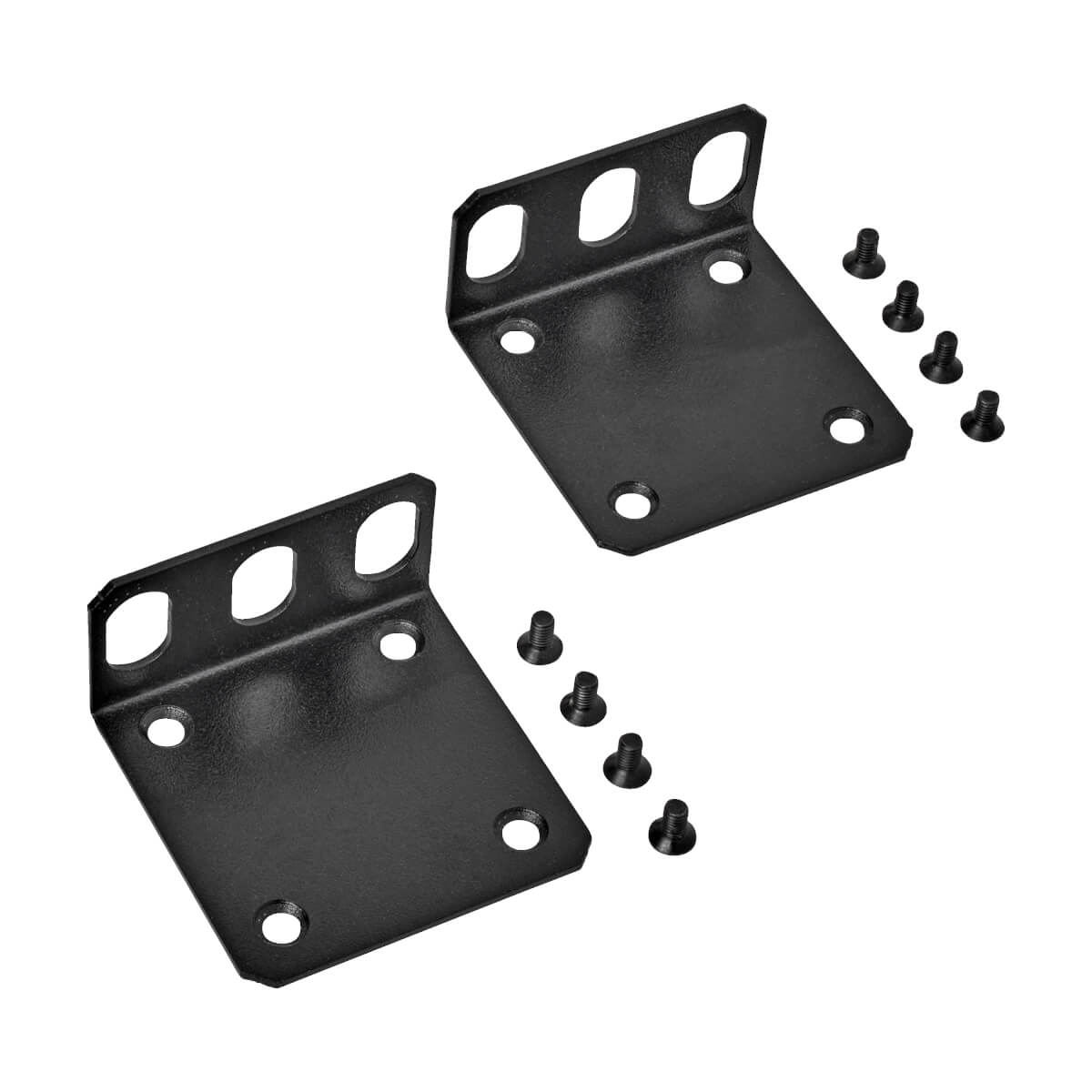

Use the included mounting hardware to install the PDUB201U’s all-metal housing into 1U of space in an
EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall.

Specifications

Design
PDU typesSwitched
MountingHorizontal
On/off switchYes
TypeSingle-phase
Product colourBlack
Rack capacity1U
Housing materialMetal
Ports & interfaces
Power plugNEMA 5-20P
AC outlets quantity6 AC outlet(s)
AC outlet typesNEMA 5-20R
Features
LED indicatorsPower, Status
Colour-coded outletsYes
Ergonomics
LED indicatorsPower, Status
Power
Nominal input voltage100 - 125 V
Maximum power2000 W
Maximum current16 A
Output voltage100 - 125 V
AC input frequency50 - 60 Hz
Weight & dimensions
Weight6.48 lbs (2.94 kg)
Width17.2" (437.9 mm)
Depth3.94" (100.1 mm)
Height1.73" (43.9 mm)
Package width8" (203.2 mm)
Package depth21.2" (538.5 mm)
Package height5.2" (132.1 mm)
Package weight7.5 lbs (3.4 kg)
Packaging data
Package width8" (203.2 mm)
Package depth21.2" (538.5 mm)
Package height5.2" (132.1 mm)
Package weight7.5 lbs (3.4 kg)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-30 - 50 °C
Operating relative humidity (H-H)0 - 90%
Technical details
Master (outer) case GTIN (EAN/UPC)10037332256208
Logistics data
Master (outer) case width16.7" (424.2 mm)
Master (outer) case length21.9" (556.3 mm)
Master (outer) case height11.7" (297.2 mm)
Master (outer) case gross weight32.8 lbs (14.9 kg)
Products per master (outer) case4 pc(s)
Country of originChina
