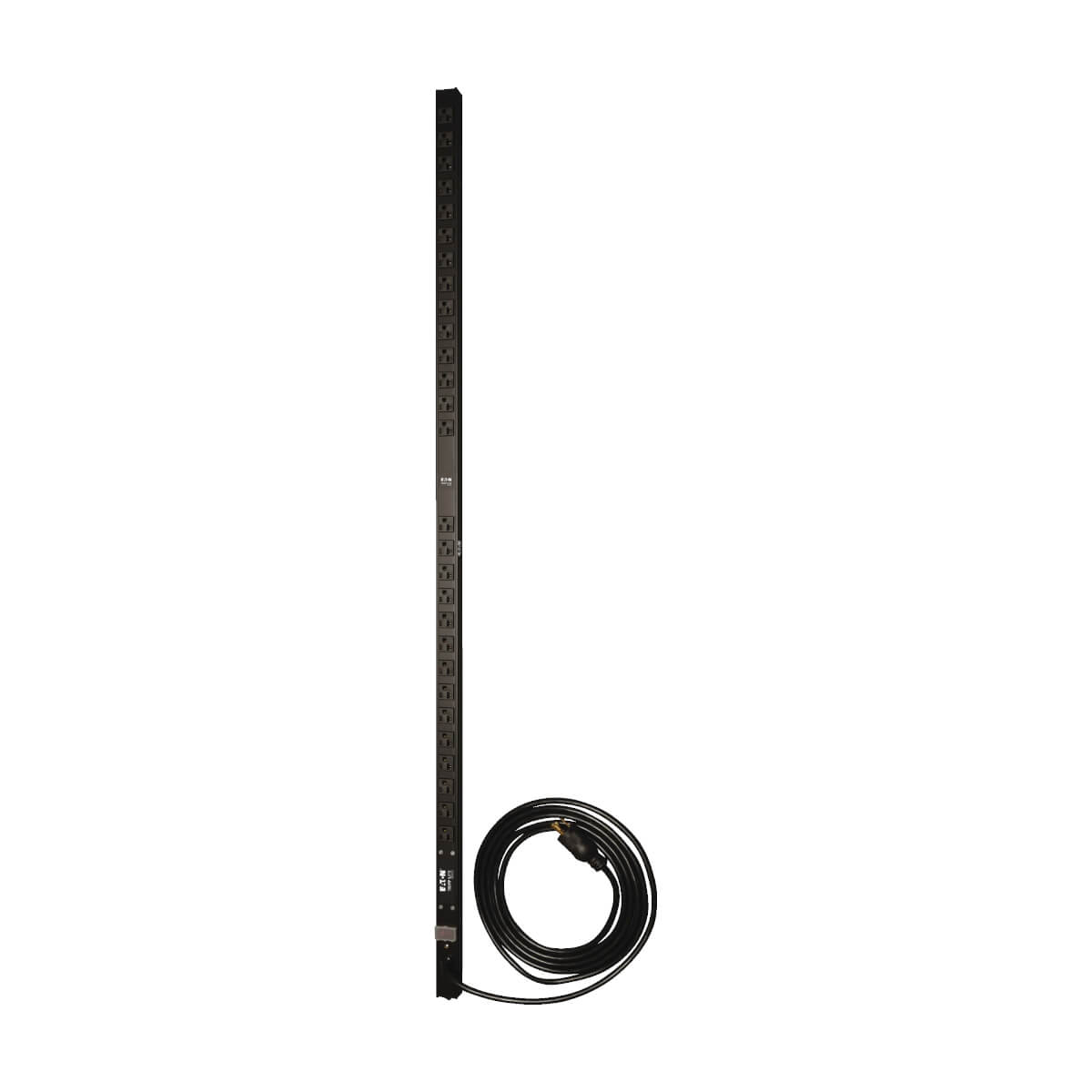

Tripp Lite PDUV20-60 power distribution unit (PDU) 28 AC outlet(s) 0U Black

Tripp Lite PDUV20-60 power distribution unit (PDU) 28 AC outlet(s) 0U Black

Tripp Lite PDUV20-60, Basic, 0U, Single-phase, Vertical, Aluminum, Black

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro 15FT CORD PDU BASIC 28 5-15/20R 495ZAP Register free see stock
Synnex PDU 28 5-15/20R L5-20P 15FT CORD 60IN 6681143

Related Products

Description

Tripp Lite PDUV20-60. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 28 AC outlet(s), AC outlet types: NEMA 5–15, NEMA 5–20R, Power plug: NEMA L5-20P. Cable length: 179.9" (4.57 m). Nominal input voltage: 100 - 127 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Width: 1.5" (38.1 mm), Depth: 1.64" (41.7 mm), Height: 60.5" (1535.9 mm)

Specifications

Design
PDU typesBasic
MountingVertical
On/off switchYes
TypeSingle-phase
Product colourBlack
Rack capacity0U
Housing materialAluminum
Ports & interfaces

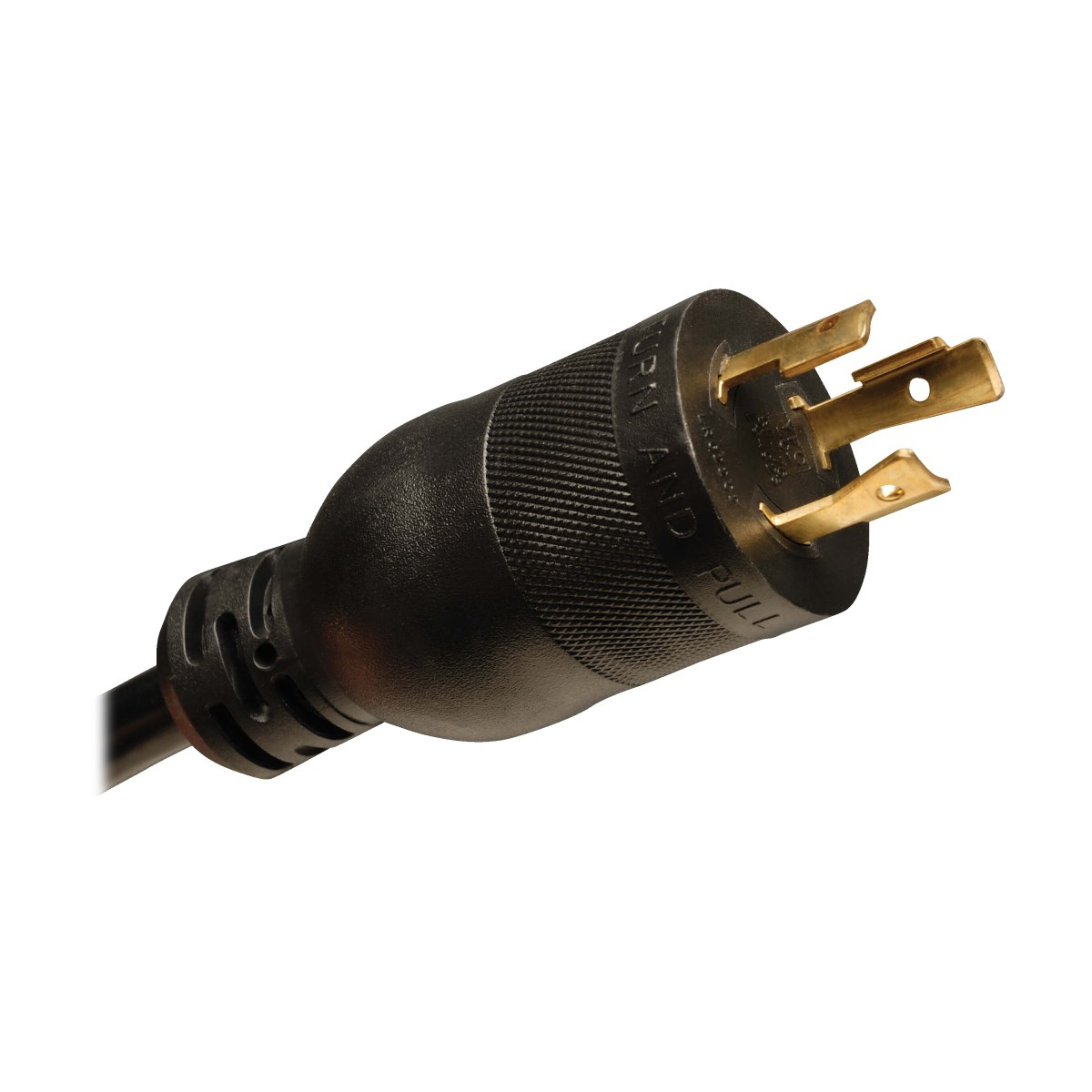

Power plugNEMA L5-20P
AC outlets quantity28 AC outlet(s)
AC outlet typesNEMA 5–15, NEMA 5–20R
Features
Cable length179.9" (4.57 m)
Ergonomics
Cable length179.9" (4.57 m)
Power
Nominal input voltage100 - 127 V
Maximum power2030 W
Maximum current20 A
Nominal output voltage100 - 127 V
Power protection featuresOverload
AC input frequency50 - 60 Hz
Weight & dimensions
Weight5.38 lbs (2.44 kg)
Width1.5" (38.1 mm)
Depth1.64" (41.7 mm)
Height60.5" (1535.9 mm)
Package width3.5" (88.9 mm)
Package depth63.2" (1605.3 mm)
Package height2.4" (61 mm)
Package weight7.01 lbs (3.18 kg)
Packaging data
Package width3.5" (88.9 mm)
Package depth63.2" (1605.3 mm)
Package height2.4" (61 mm)
Package weight7.01 lbs (3.18 kg)
Packaging content
ManualYes

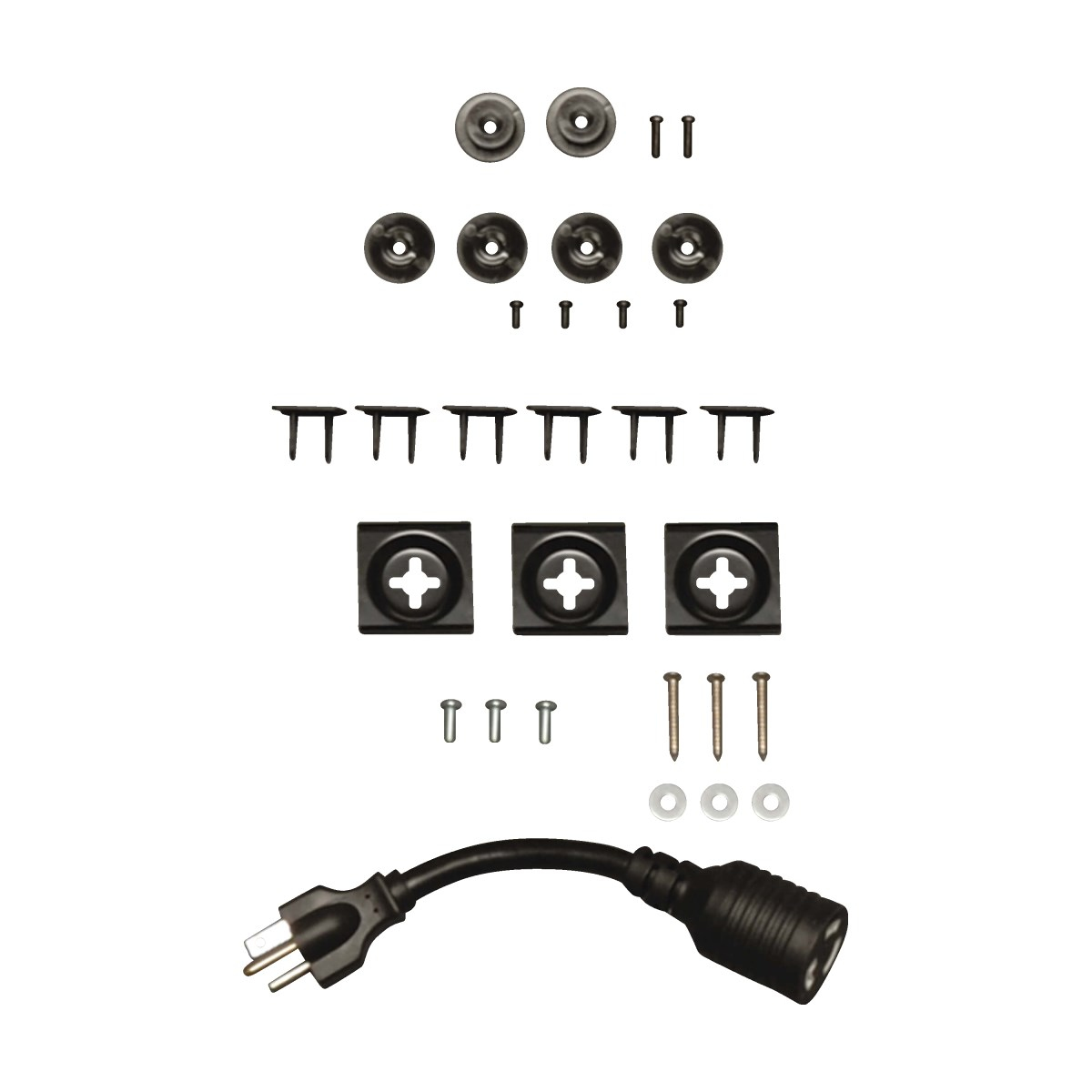

Rack mount kitYes
Operational conditions
Storage temperature (T-T)-30 - 50 °C
Technical details
Master (outer) case GTIN (EAN/UPC)10037332256000
Logistics data
Master (outer) case width8.3" (210.8 mm)
Master (outer) case length64" (1625.6 mm)
Master (outer) case height7.9" (200.7 mm)
Master (outer) case gross weight44.1 lbs (20 kg)
Products per master (outer) case6 pc(s)
Country of originChina
