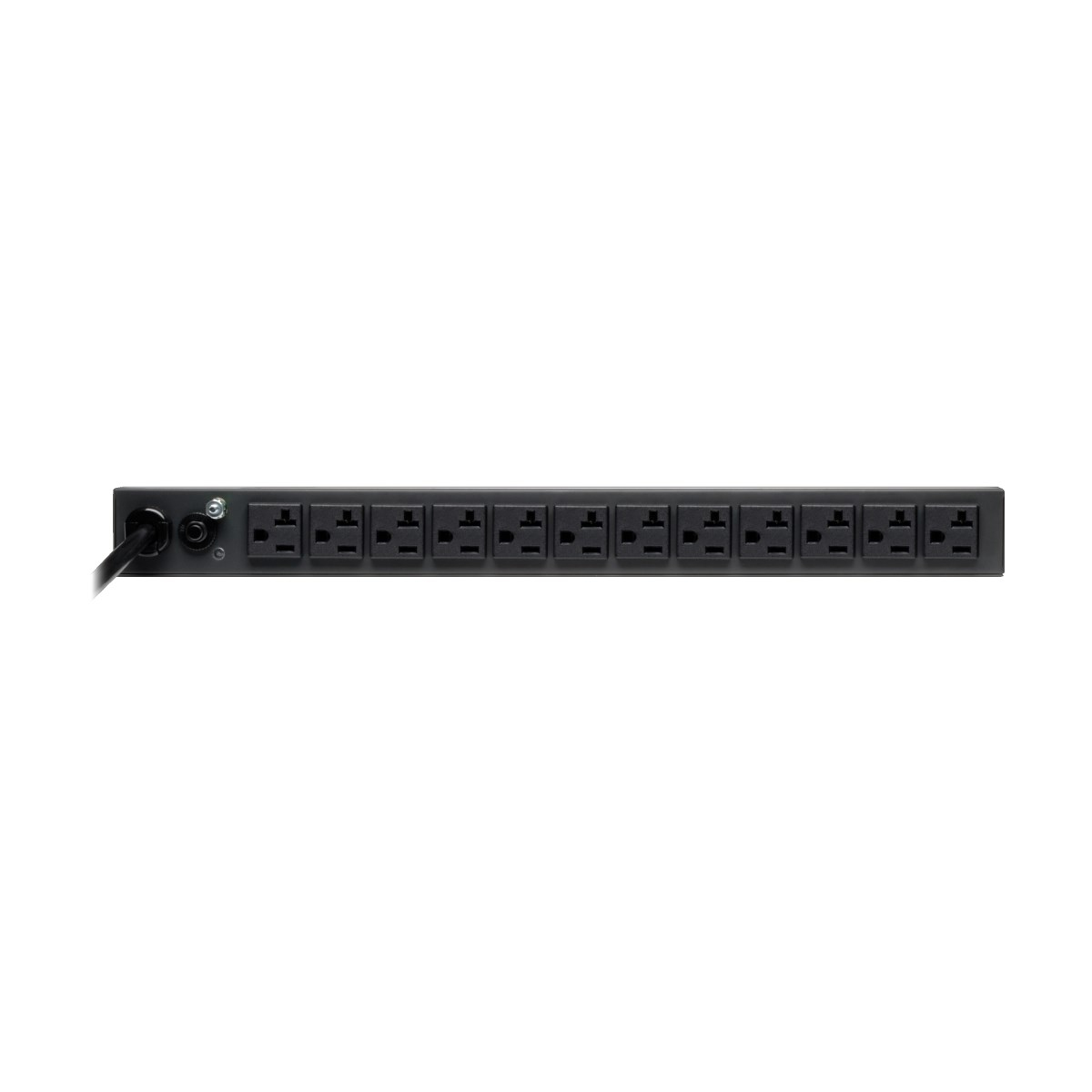

Tripp Lite PDU1220 power distribution unit (PDU) 13 AC outlet(s) 1U Black

Tripp Lite PDU1220 power distribution unit (PDU) 13 AC outlet(s) 1U Black

2.4kW Single-Phase Basic PDU, 120V Outlets (13 5-15/20R), 5-20P, 15ft Cord, 1U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
BlueStar TRIPP LITE, PDU BASIC 120V, 20A 5-15/20R 13 OUTLET,5-20P HORIZONTAL 1URM PDU1220 Register free see stock
D&H Rackmnt PDU 20 Amp 120 V PDU1220CA
Ingram Micro 1U-0U HORIZ RACKMT PDU STRIP 366589
Synnex 2.4kW Single-Phase 120V Basic PDU, 13 NEMA 5-15/20R Outlets, NEMA 5-20P Input, 1 3998601

Related Products

Description

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution for critical IT equipment in wiring closets, server rooms and equipment racks. Supplies continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 2.4kW 20A 120V single phase Basic Power Distribution Unit / PDU
- 1U horizontal 19 inch rackmount form factor installs in one rack space

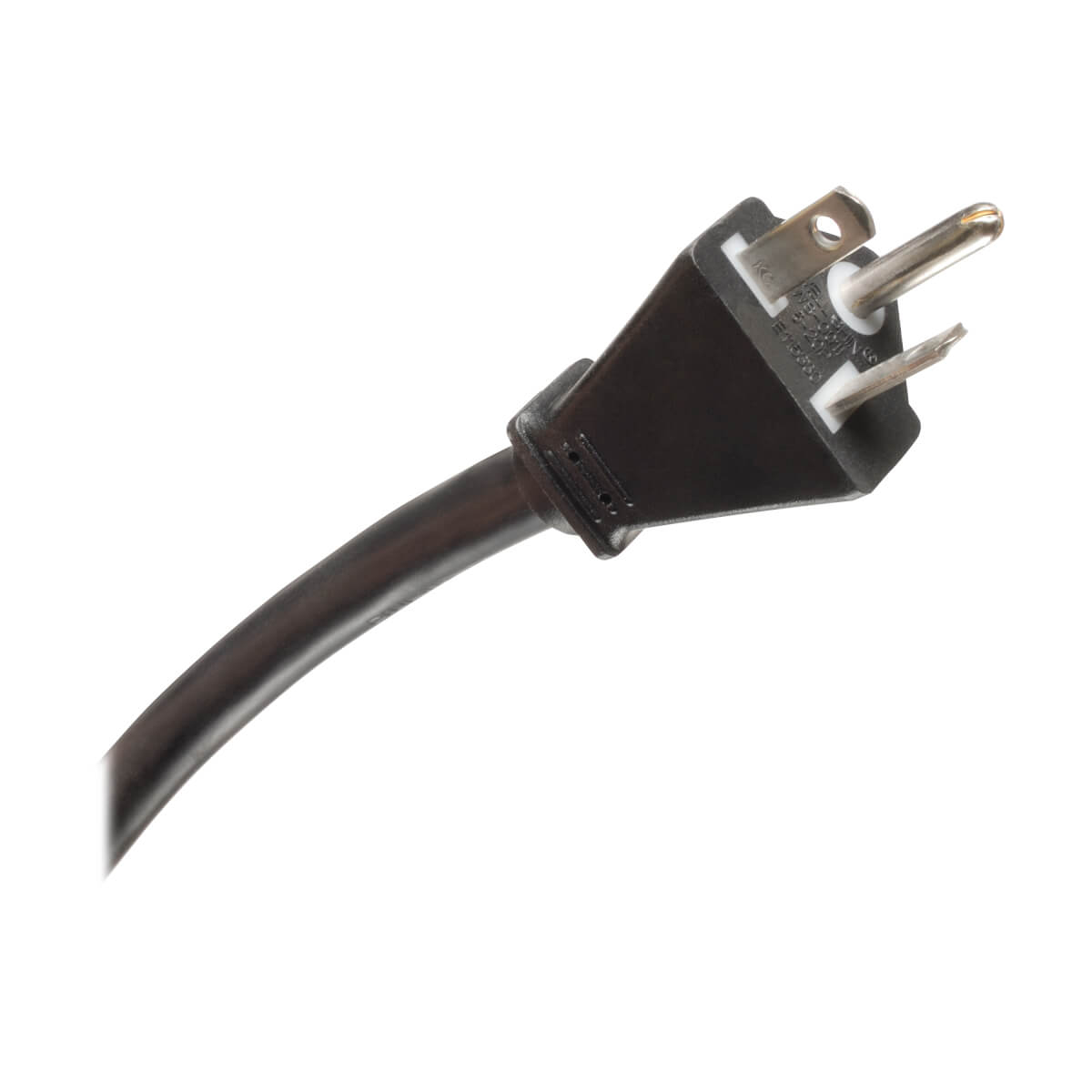

- NEMA 5-20P 20A 120v input plug with 15 ft. / 4.5m line cord
- 13 NEMA 5-15/20R outlets (1 front / 12 rear)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Mounting ears are reversible for front or rear facing rackmount installation
- Optional PDUSIDEBRKT enable 0U vertical installation in compatible racks
- Back-panel grounding lug

Specifications

Design
PDU typesBasic
MountingHorizontal
Product colourBlack
CertificationUL60950-1/CSA-C22.2
Rack capacity1U
Housing materialMetal
Ports & interfaces
Power plugNEMA 5–20P
AC outlets quantity13 AC outlet(s)
AC outlet typesNEMA 5–15R, NEMA 5–20R
Features
Cable length179.9" (4.57 m)
CertificationUL60950-1/CSA-C22.2
Ergonomics
Cable length179.9" (4.57 m)
Power
Nominal input voltage100-127 V
Maximum current20 A
Nominal output voltage100-127 V
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)17.5 x 4.49 x 1.77" (445 x 114 x 45 mm)
Weight5.2 lbs (2.36 kg)
Width19" (482.6 mm)
Depth4.5" (114.3 mm)
Height2" (50.8 mm)
Package width20.4" (518.2 mm)
Package depth9.3" (236.2 mm)
Package height2.2" (55.9 mm)
Package weight5.93 lbs (2.69 kg)
Packaging data
Package width20.4" (518.2 mm)
Package depth9.3" (236.2 mm)
Package height2.2" (55.9 mm)
Package weight5.93 lbs (2.69 kg)
Technical details
Sustainability certificatesRoHS
Master (outer) case GTIN (EAN/UPC)10037332116670
Compliance certificatesRoHS
Logistics data
Master (outer) case width20.7" (525.8 mm)
Master (outer) case length13.5" (342.9 mm)
Master (outer) case height10.1" (256.5 mm)
Master (outer) case gross weight35.5 lbs (16.1 kg)
Products per master (outer) case6 pc(s)
Country of originChina
